Micron Part #/MPN: MTFDDAK960MBP-1AN1ZABYY
DiscTech Item #: MIC-MTFDDAK960MBP-1AN1ZABYY-BN-OE-DEG
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 420MB / 380MB /s
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Micron M510DC MTFDDAK960MBP-1AN1ZABYY / 0CWDX 960GB 6Gbps 2.5in SFF TCG Enterprise SED SATA SSD - Brand New OEM

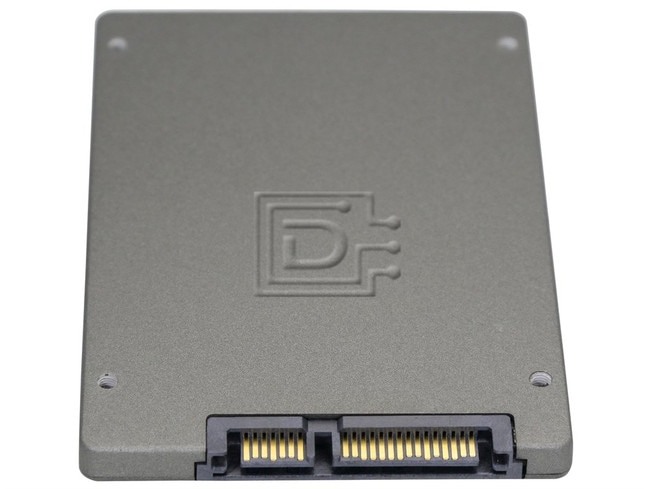

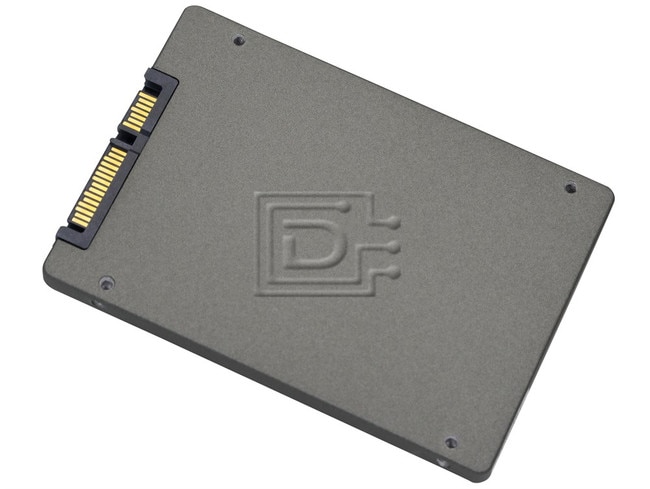

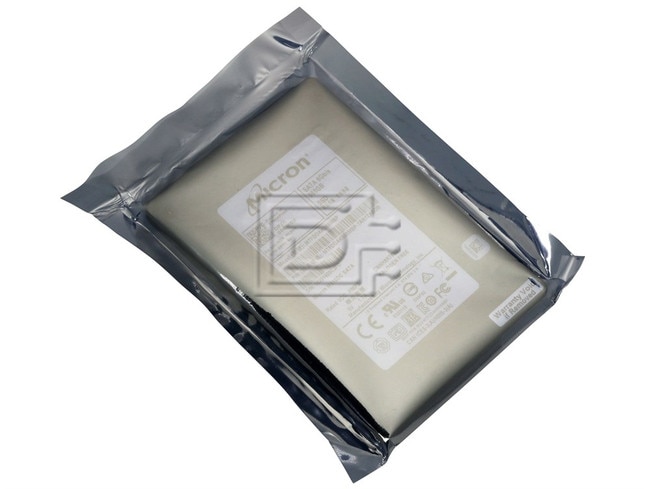

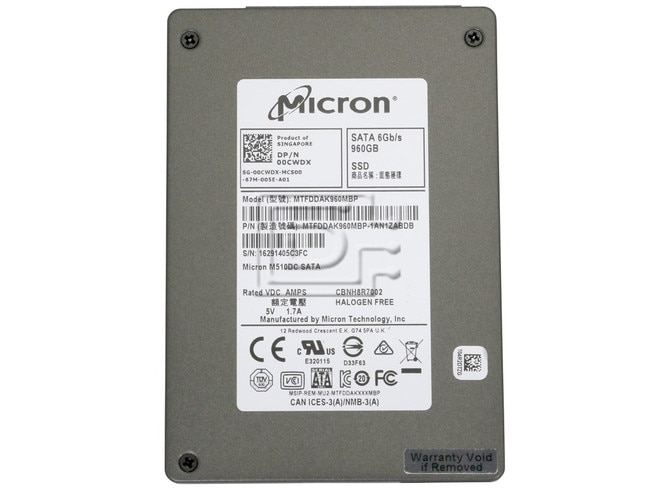

Micron M510DC MTFDDAK960MBP-1AN1ZABYY / 0CWDX 960GB 6Gbps 2.5in SFF TCG Enterprise SED SATA SSD
Alt DPNs: 0CWDX , 00CWDX , MTFDDAK960MBP
Micron’s solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and 8-channels of Micron NAND Flash internally. Packaged in an HDD replacement enclosure, the SSD integrates easily in existing storage infrastructures.
The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.
The self-encypting drive (SED) features a FIPS-compliant, AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG/Opal specification for trusted peripherals.
Compatibility:
This drive is compatible with servers and laptops that accept 2.5"x7mm SATA drives.
• 960GB performance (steady state) 1, 2 – Sequential 128KB read/write: 420/380 MB/s – Random 4KB read/write: 65,000/10,500 IOPS – READ/WRITE latency: 0.50/3.0ms (TYP)
• Micron® 16nm MLC NAND Flash
• SATA 6 Gb/s interface
• TCG Enterprise Ver 1.0 Final Rev 3.0 compliant selfencrypting drive (SED)
• ATA modes supported – PIO mode 3, 4 – Multiword DMA mode 0, 1, 2 – Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
• 512-byte sector size support
• Hot-plug capable
• Native command queuing support with 32-command slot support
• ATA-8 ACS2 command set compliant
• ATA security feature command set and password login support
• Security erase command set: fast and secure erase
• Reliability – MTTF: 2.0 million device hours3 – Static and dynamic wear leveling – Uncorrectable bit error rate (UBER): <1 sector per 1016 bits read – End-to-end data protection – Enhanced power-loss data protection with data protection capacitor monitoring
• Self-monitoring, analysis, and reporting technology (SMART) command set
• Endurance: Total bytes written (TBW) – 120GB: 460TB; 240GB: 920TB; 480GB: 1850TB; 600GB: 3800TB; 800GB: 2500TB; 960GB: 1140TB
• Capacity4 (unformatted): 120GB, 240GB, 480GB, 600GB, 800GB, 960GB
• Mechanical: 7.0mm height – SATA connector: 5V ±10% – 2.5-inch drive: 100.45mm x 69.85mm x 7.0mm – Conforms to SFF standards
• RoHS-compliant package • Field-upgradeable firmware
• Power consumption: <6.0W (TYP); <6.3W (TYP) for 600GB/800GB/960GB
• Operating temperature – Commercial (0°C to 70°C)5
Notes: 1. Typical I/O performance numbers as measured
using Iometer with a queue depth of
32 and write cache disabled.
2. 4KB transfers used for READ/WRITE latency
values.
3. The product achieves a MTTF based on population
statistics not relevant to individual
units.
4. 1GB = 1 billion bytes; formatted capacity is
less.
5. Drive case temperature.
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0CWDX 00CWDX MTFDDAK960MBP
