NEC NF5023-CM708T SAS Hard Drive Kit
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description

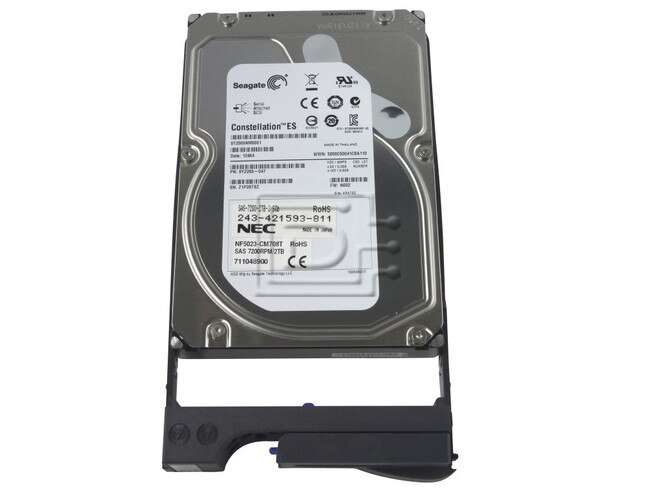

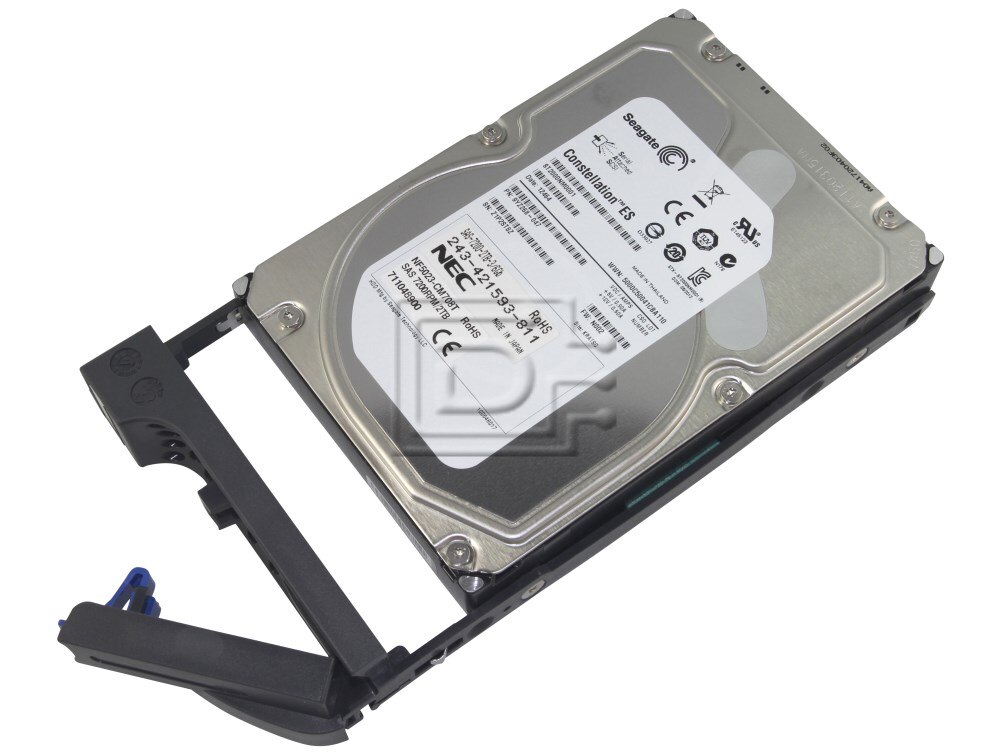

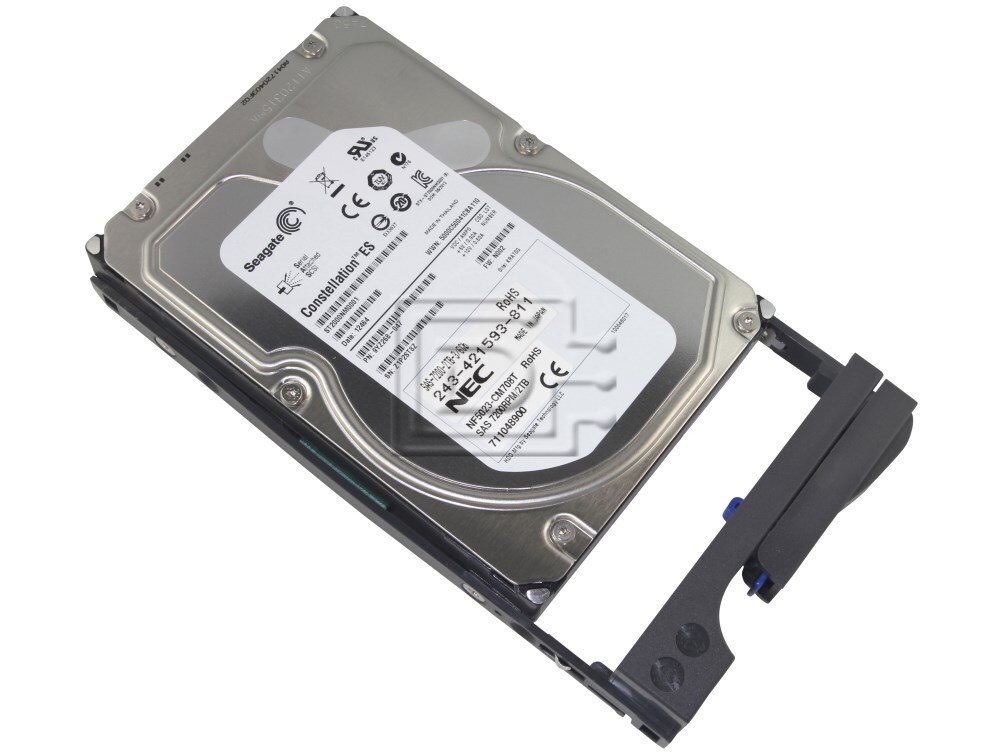

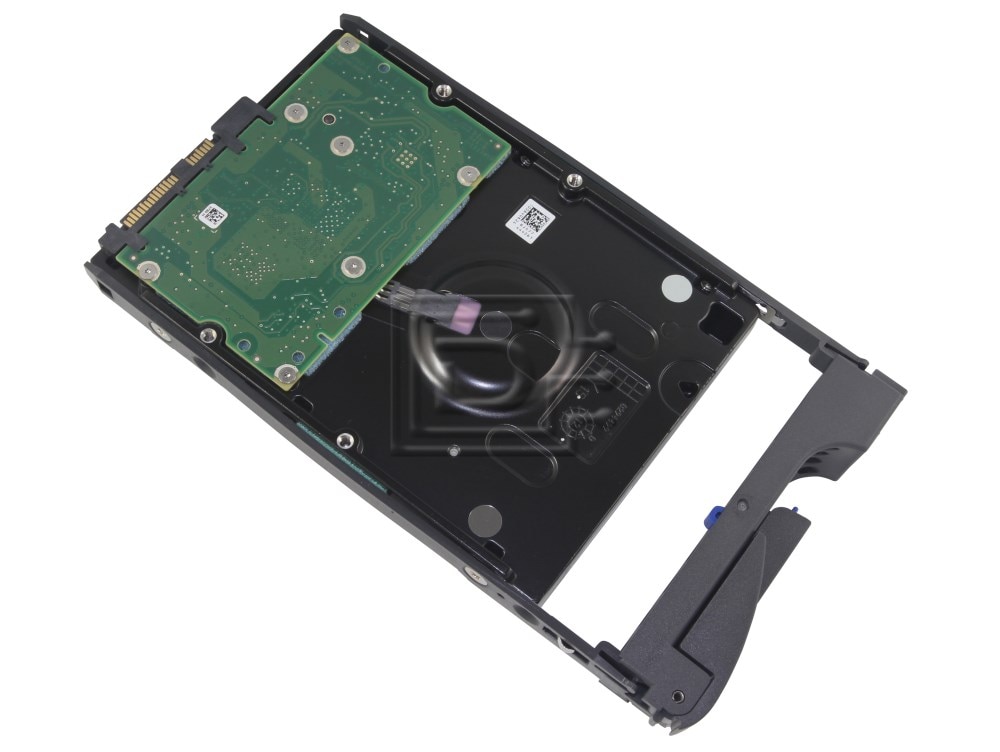

NEC NF5023-CM708T 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New Kit
NEC NF5023-CM708T 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New Kit
Alt MPNs: 711048900, 243-421593-811, 9YZ268-047
Compatibility
Compatible with NEC Storage Disk Arrays
NEC Storage D4-30
NEC Storage D4-30i
NF5133-xR40E
NF5133-CR40X
Specifications
Drive specification | NF5023-CM708T |
Formatted Gbytes (512 bytes/sector) | 2000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.71 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 70G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 12.2w / 8.0w |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 711048900 243-421593-811 9YZ268-047
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
