PROMISE Part #/MPN: VTJ610sS
DiscTech Item #: PRO-VTJ610SS-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
Bays/Ports/Slots: 16
U Height: 3U
Wattage/VA: 400W
Voltage: 110-240V Multi

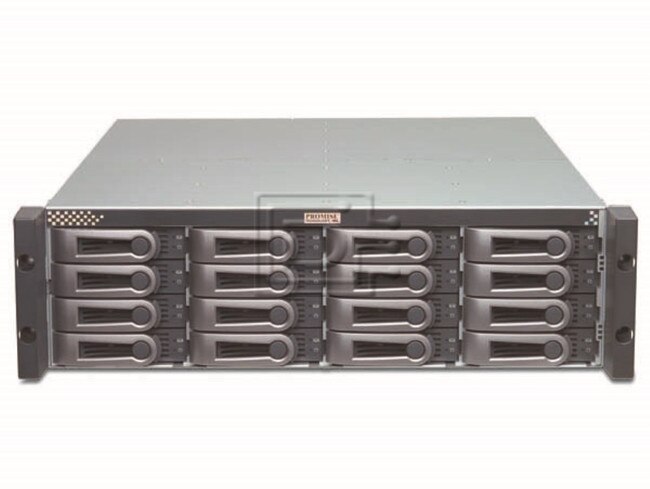

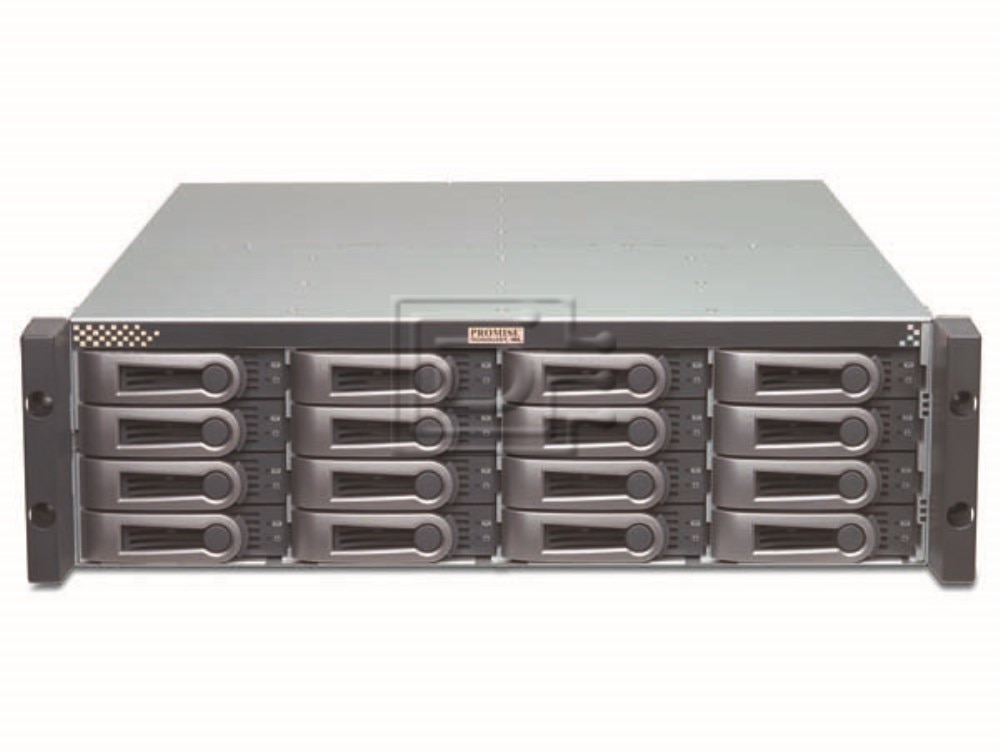

Promise Technology VTJ610sS VTrak J610S Series 3U 16-Bay SAS / SATA Hot Swappable Storage Enclosure - Refurbished
Promise Technology VTJ610sS VTrak J610S Series 3U 16-Bay SAS / SATA Hot Swappable Storage Enclosure - Refurbished
Highlights
- 16 hot-swappable drive bays in a robust 3U chassis
- Supports Serial Attached SCSI (SAS) and SATA drives simultaneously
- Dual active/active SAS JBOD I/O modules
- Up to four mini SAS (4x) ports, two ports per I/O module
- Redundant, hot-swappable Field Replaceable Units (FRUs)
- SES-2 compliant enclosure management
- Compatible with leading SAS & SATA drives, HBAs and RAID controllers
Affordable enterprise-level storage
The VTrak J-Class delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external SAS ports provide the connectivity and bandwidth for large capacity solutions requiring multiple cascaded JBODs. Fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, provides exceptional data availability even during component failures.
No Single Point of Failure
With the VTrak J-Class, Promise has dramatically narrowed the gap between simple fault tolerance and “No Single Point of Failure”. All system components are redundant and are constantly monitored using industry standard protocols to ensure continuous operation. Dual active-active JBOD I/O modules provide redundant data paths to ensure data availability.
Service and Support
Every VTrak is backed by the Promise 3-Year limited warranty with 24/7 telephone and email support (Americas & EMEA). When our support confirms a failure in the field, advanced replacement parts are always available to eliminate down time.
Compatibility:
Simultaneously compatible with 3.5"x1" (LFF) SAS and SATA hard drive kits - SAS 3Gb/s, SATA II 3Gb/s and 1.5Gb/s.
| Specifications | |
|---|---|
| Model Number | VTJ610sS |
| Drive Support | Up to sixteen 3.5” x 1” hard drives - SAS 3Gb/s, SATA II 3Gb/s and 1.5Gb/s, supports any mix of SAS and SATA drives simultaneously in the same enclosure |

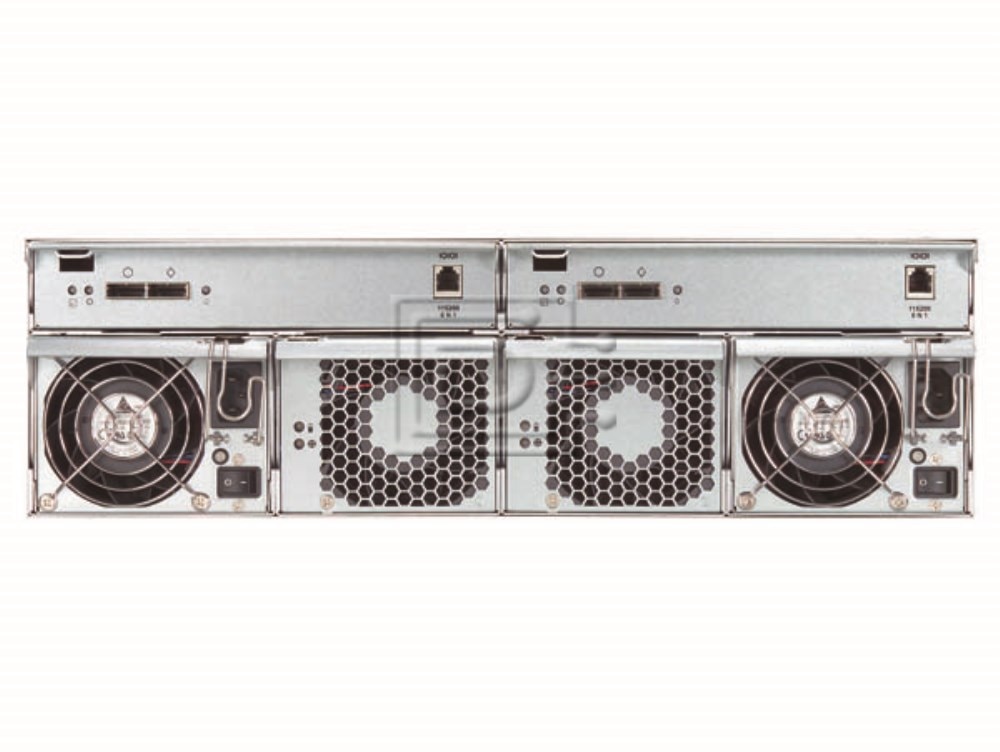

| External I/O Ports | Each I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs |
| Voltage | 100-240 Vac Auto-Ranging |
| Current (Maximum) | 8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords) |
| Power Supply | Dual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design |
| Power Consumption | 108.38 Watts (under load w/o HDD), 523.91 Watts (under load with SAS HDD) |
| Operating Temperature/Humidity | 5°~40°C (-40°~60°C non operational) / Maximum 95% |
| Vibration | Random, 0.21 grms, 5-500Hz, X, Y, Z axis |
| Dimensions (H x W x D) | 13.1x 44.65x 56.1 cm (5.2 x 17.6 x 22.1in) |
| Safety | CE, FCC ClassA, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: J610s
Weight: 86 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
