Maxtor Part #/MPN: TY36J011
DiscTech Item #: MAX-TY36J011-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:3Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 36GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 41
Average Seek Time: 4.7
Electrical Interface: SCSI LVD U160 - 160MBps 16-bit
On-Board Cache: 8MB

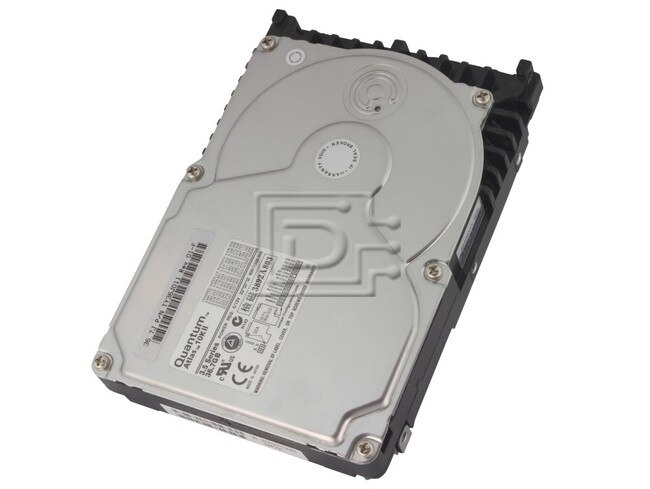

Maxtor / Quantum Atlas 10K II 36GB U160 80pin SCA-2 SCSI Hard Drive TY36J011 / TY36J881 - Refurbished
Maxtor Atlas 10K II disk drives with huge capacities set a new standard of performance for enterprise and workstation drives. The drives provide superior shock durability and reliability with Maxtor's breakthrough Shock Protection System II (SPS II), which guards against one of the leading causes of hard disk failure - mistreatment during handling and integration. To manage their incredible throughput, Atlas 10K II drives feature today's most advanced interfaces - the industry's first backward-compatible Ultra160 SCSI.
Also know as TY36J0 / TY36J881
Specifications | 9.2 | 18.4 | 36.7 | 73.4 | 9.2/18.4 | 36.7 | 73.4 | |
Form Factor | 3.5" | 3.5" | 3.5" | 3.5" | Reliability Specifications | |||
Interface | Ultra160, Ultra2, Ultra SCSI 68-pin Wide | Data Errors (per bits read) | ||||||
Ultra160, Ultra2, Ultra SCSI 80-pin SCA-2 | Recoverable | 10 per 10**12 | ||||||
Nonrecoverable | 1 per 10**14 | |||||||
Formatted Capacity (MB)9,200 | 18,400 | 36,700 | 73,400 | Error-Correction Method | 352-bit Reed Solomon | |||
Disk Drive Configuration | ||||||||
Disks | 2 | 3 | 5 | 10 | ||||
Head/Recording Surfaces | 3 | 6 | 10 | 20 | Physical Specifications | |||
Bytes per Sector | 512 | Dimensions—inches/mm | ||||||
Maximum Areal Density (Gb/sq. in.) | 7.7 | Width | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | |||
Encoding/Detection Method | 50/52 RLL PRML | Length | 5.76/146.5 | 5.76/146.5 | 5.76/146.5 | |||
Height | 1.00/25.8 | 1.00/25.8 | 1.64/41.6 | |||||
Weight—pounds/kg | 1.4/0.64 | 1.5/0.68 | 2.4/1.10 | |||||
Performance Specifications | ||||||||
Typical Seek Times: (ms) | Environmental Limits | |||||||
Average | 4.7 | 4.7 | 4.7 | 5.2 | Operating | |||
Track-to-Track | 0.6 | 0.6 | 0.6 | 0.6 | Temperature (ºC) | 5 to 50 | ||
Full Stroke | 12 | 12 | 12 | 13 | Non-Condensing Humidity (%) | 5 to 85 | ||
Average Rotational Latency (ms) | 3.0 | Vibration (G, 5 to 500 Hz) | 0.5 | |||||
Sound Power (bels, Idle) | 3.7 | 3.8 | 4.2 | |||||
Rotational Speed (RPM) | 10,000 | Non-Operating | ||||||
Internal Data Rate (Mb/sec) | 280 to 478 | Temperature (ºC) | -40 to 70 | |||||
Sustained Throughput (MB/sec) | 25 to 41 | Non-Condensing Humidity (%) | 5 to 95 | |||||
Shock (G, 2 ms, 1/2 sine) | 230 | 230 | 150 | |||||
Data Transfer Rates (Buffer Host) | Vibration (G, 5 to 500 Hz) | 2.0 | ||||||
Ultra160 SCSI (MB/sec) | 160 | |||||||
Ultra2 SCSI (MB/sec) | 80 | |||||||
Ultra SCSI (MB/sec) | 40 | Power Specifications | ||||||
Buffer Size (MB) | 8 | Voltage Requirements (V) | +5V DC±5% +12V DC ±5% | |||||
Typical Power Draw (W, Idle) | ||||||||
SCSI | 9.7 | 10.0 | 14.3 | |||||
Peak Current (A on +5V/+12V) | ||||||||
SCSI | 0.80/2.70 | 0.80/2.80 | 0.80/3.00 |
Alternate MPNs: TY36J0 TY36J881
Weight: 1.8 lb
