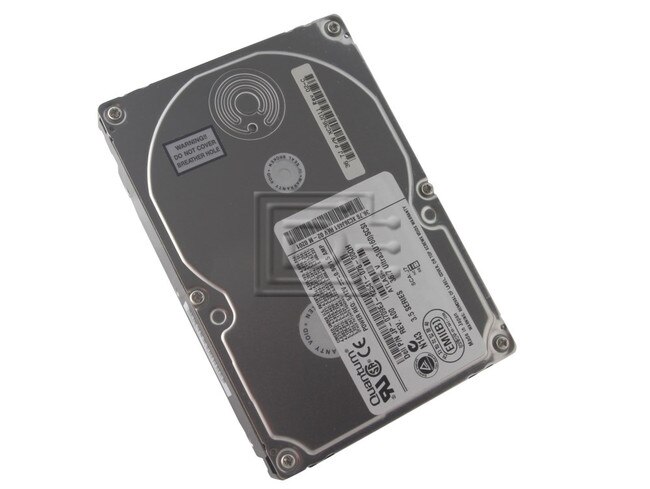

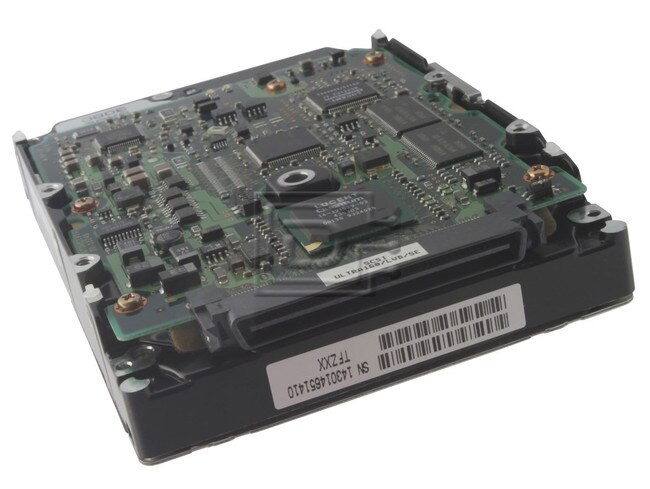

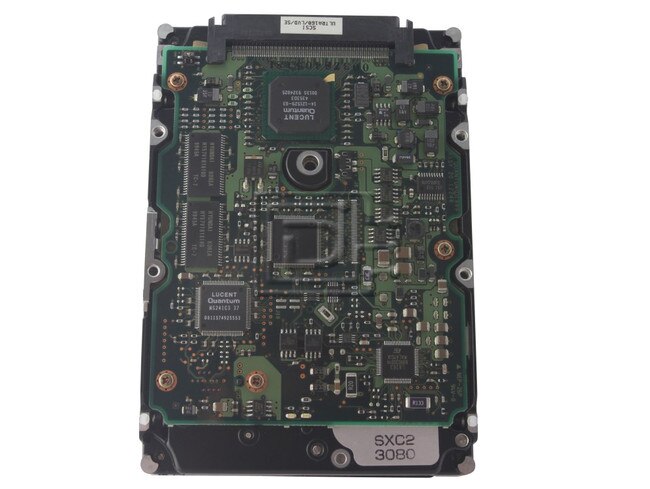

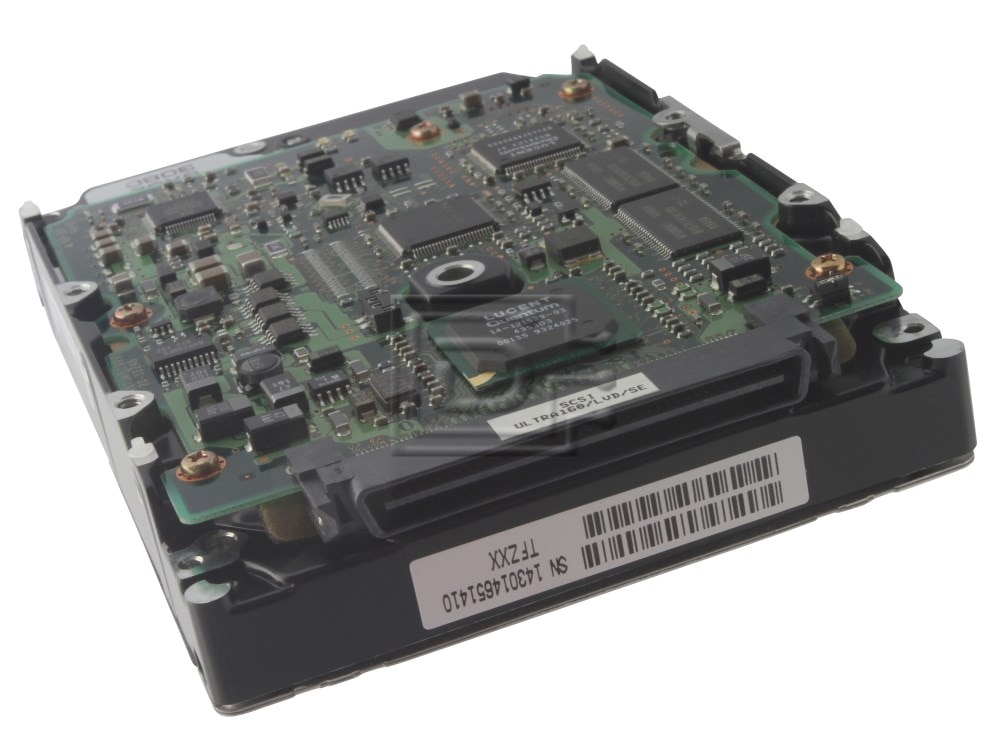

Quantum Atlas V 10K 80pin SCA-2 SCSI Hard Drive XC36J011
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:23Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 36GB |
| Speed: | 10K RPM |
| Interface Types: | SCSI 80pin SCA-2 Hot-Swap |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SCSI LVD U160 - 160MBps 16-bit |
| RAM: | 8MB |
Description
Maxtor / Quantum Atlas V 10K 36GB U160 80pin SCA-2 SCSI Hard Drive XC36J011 Refurbished
Maxtor Atlas V disk drives with huge capacities set a new standard of performance for enterprise and workstation drives. The drives provide superior shock durability and reliability with Maxtor's breakthrough Shock Protection System II (SPS II), which guards against one of the leading causes of hard disk failure - mistreatment during handling and integration. To manage their incredible throughput, Atlas V drives feature today's most advanced interfaces - the industry's first backward-compatible Ultra160 SCSI.
Specifications
| Specifications | 9.2 | 18.4 | 36.7 | 73.4 | 9.2/18.4 | 36.7 | 73.4 | |
| Form Factor | 3.5" | 3.5" | 3.5" | 3.5" | Reliability Specifications | |||
| Interface | Ultra160, Ultra2, Ultra SCSI 68-pin Wide | Data Errors (per bits read) | ||||||
| Ultra160, Ultra2, Ultra SCSI 80-pin SCA-2 | Recoverable | 10 per 10**12 | ||||||
| Nonrecoverable | 1 per 10**14 | |||||||
| Formatted Capacity (MB)9,200 | 18,400 | 36,700 | 73,400 | Error-Correction Method | 352-bit Reed Solomon | |||
| Disk Drive Configuration | ||||||||
| Disks | 2 | 3 | 5 | 10 | ||||
| Head/Recording Surfaces | 3 | 6 | 10 | 20 | Physical Specifications | |||
| Bytes per Sector | 512 | Dimensions—inches/mm | ||||||
| Maximum Areal Density (Gb/sq. in.) | 7.7 | Width | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | |||
| Encoding/Detection Method | 50/52 RLL PRML | Length | 5.76/146.5 | 5.76/146.5 | 5.76/146.5 | |||
| Height | 1.00/25.8 | 1.00/25.8 | 1.64/41.6 | |||||
| Weight—pounds/kg | 1.4/0.64 | 1.5/0.68 | 2.4/1.10 | |||||
| Performance Specifications | ||||||||
| Typical Seek Times: (ms) | Environmental Limits | |||||||
| Average | 4.7 | 4.7 | 4.7 | 5.2 | Operating | |||
| Track-to-Track | 0.6 | 0.6 | 0.6 | 0.6 | Temperature (ºC) | 5 to 50 | ||
| Full Stroke | 12 | 12 | 12 | 13 | Non-Condensing Humidity (%) | 5 to 85 | ||
| Average Rotational Latency (ms) | 3.0 | Vibration (G, 5 to 500 Hz) | 0.5 | |||||
| Sound Power (bels, Idle) | 3.7 | 3.8 | 4.2 | |||||
| Rotational Speed (RPM) | 10,000 | Non-Operating | ||||||
| Internal Data Rate (Mb/sec) | 280 to 478 | Temperature (ºC) | -40 to 70 | |||||
| Sustained Throughput (MB/sec) | 25 to 41 | Non-Condensing Humidity (%) | 5 to 95 | |||||
| Shock (G, 2 ms, 1/2 sine) | 230 | 230 | 150 | |||||
| Data Transfer Rates (Buffer Host) | Vibration (G, 5 to 500 Hz) | 2.0 | ||||||
| Ultra160 SCSI (MB/sec) | 160 | |||||||
| Ultra2 SCSI (MB/sec) | 80 | |||||||
| Ultra SCSI (MB/sec) | 40 | Power Specifications | ||||||
| Buffer Size (MB) | 8 | Voltage Requirements (V) | +5V DC±5% +12V DC ±5% | |||||
| Typical Power Draw (W, Idle) | ||||||||
| SCSI | 9.7 | 10.0 | 14.3 | |||||
| Peak Current (A on +5V/+12V) | ||||||||
| SCSI | 0.80/2.70 | 0.80/2.80 | 0.80/3.00 | |||||
