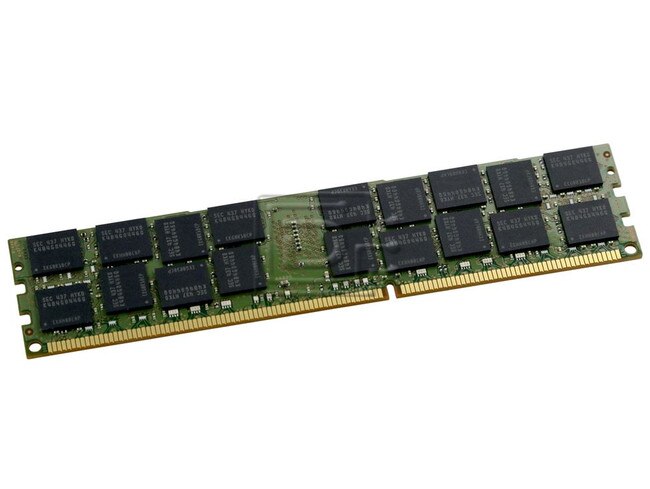

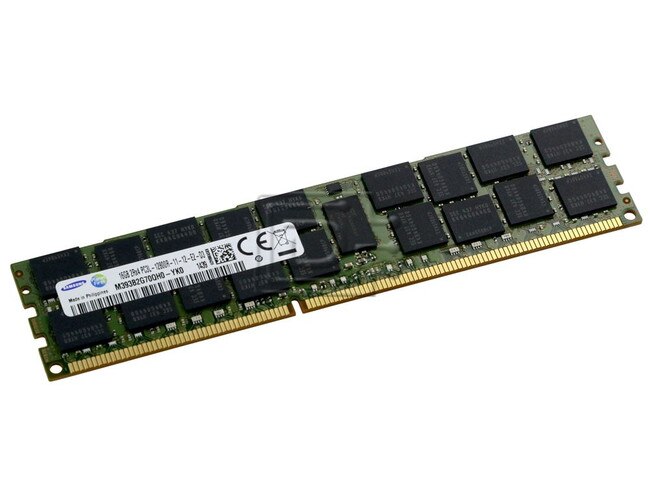

Samsung M393B2G70QH0-YK0 16GB RAM PC3-12800 DDR3L-1600MHz Certified ECC Memory Module

SAMSUNG Part #/MPN: M393B2G70QH0-YK0

DiscTech Item #: SAM-M393B2G70QH0-YK0-BN-OE

$140.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$140.00

Capacity: 16GB

Interface Types: DDR3 DIMM 240pin

Form Factor: DDR3 RDIMM

Electrical Interface: PC3-12800

On-Board Cache: 16GB

Samsung M393B2G70QH0-YK0 16GB PC3-12800 DDR3l-1600MHz CL11 240-Pin RDIMM Certified ECC RAM Memory Module - Brand New

Samsung M393B2G70QH0-YK0 16GB PC3-12800 DDR3L-1600MHz CL11 240-Pin RDIMM Certified ECC / Error Correction Code RAM / Random Access Memory Memory Module - Brand New

  • JEDEC standard 1.35V(1.28V~1.45V) & 1.5V(1.425V~1.575V) Power Supply
  • VDDQ = 1.35V(1.28V~1.45V) & 1.5V(1.425V~1.575V)
  • 400MHz fCK for 800Mb/sec/pin, 533MHz fCK for 1066Mb/sec/pin, 667MHz fCK for 1333Mb/sec/pin, 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 6,7,8,9,10,11
  • Programmable Additive Latency(Posted CAS) : 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL) = 5(DDR3-800), 6(DDR3-1066), 7(DDR3-1333) and 8(DDR3-1600)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either On the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower then TCASE 85C, 3.9us at 85C < TCASE 95C
  • Asynchronous Reset

SAMSUNG
Part NumberM393B2G70QH0-YK0
Density16GB
Organization512Mx72
Height30mm
tCK(min)1.25ns
CAS Latency11nCK
tRCD(min)13.75ns
tRP(min)13.75ns
tRAS(min)35
tRC(min)48.75
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb
