SAMSUNG Part #/MPN: HM121HI
DiscTech Item #: SAM-HM121HI-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 120GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

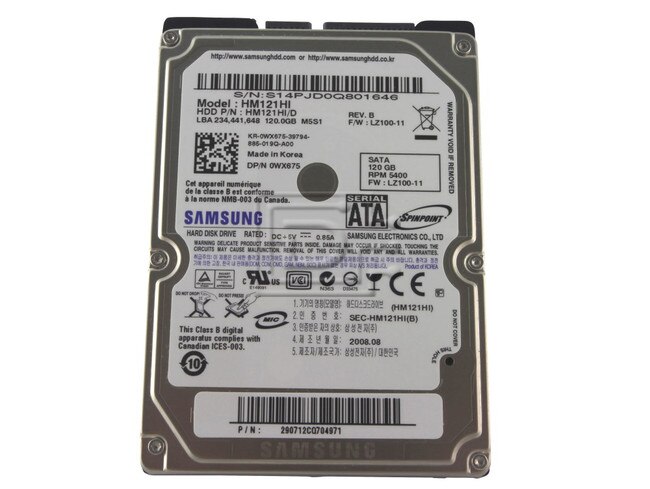

Samsung Spinpoint M5S HM121HI 120GB 5.4K 2.5" SATA Hard Drive - Refurbished OEM
Features:
- Max. 160GB formatted capacity per disk
- SATA Native Command Queuing Feature
- TuMR/PMR head with FOD technology
- Serial ATA 1.5Gbps Interface Support
- Load/Unload Head Technology
- ATA Security Mode Feature Set
- ATA S.M.A.R.T. Feature Set
- SilentSeek
- NoiseGuard
Alternate PNs: WX675 0WX675
Compatibility:
This drive is compatible with any laptop/computer that accepts 2.5" SATA hard drives.
 | ||
| Performance Specifications | ||
| Rotational Speed | 5,400 RPM (nominal) |
| Buffer Size | 8 MB |
| Average Latency | 5.50 ms (nominal) |
| ||
| Seek Times | ||
| Read Seek Time | 12.0 ms |
| Track-To-Track Seek Time | 2.0 ms (average) |
| ||
| Transfer Rates | ||
| Buffer To Host (Serial ATA) | 1.5 Gb/s (Max) |
| Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) |
| ||
| ||
| Physical Specifications | ||
| Formatted Capacity | 120,034 MB |
| Capacity | 120 GB |
| Interface | SATA 1.5 Gb/s |
| ||
| ||
| Physical Dimensions | ||
| English | ||
| Height | 0.374 Inches ±0.008 inch |
| Length | 3.94 Inches ±0.010 inch |
| Width | 2.75 ±0.010 inch |
| Weight | 0.26 Pounds |
| ||
| Metric | ||
| Height | 9.5 mm ±0.20 mm |
| Length | 100.2 ±0.25 mm |
| Width | 69.85 ±0.25 mm |
| Weight | 0.117 kg |
| ||
| ||
| Environmental Specifications | ||
| Acoustics | ||
| Idle Mode | 24 dBA (average) |
| Seek Mode 0 | 26 dBA (average) |
| ||
| Temperature (English) | ||
| Operating | 41° F to 140° F |
| Non-operating | -40° F to 149° F |
| ||
| Temperature (Metric) | ||
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 65° C |
| ||
| Humidity | ||
| Operating | 8-90% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| ||
| Altitude (English) | ||
| Operating | -1,000 feet to 10,000 feet |
| Non-operating | -1,000 feet to 40,000 feet |
| ||
| Altitude (Metric) | ||
| Operating | -305M to 3,050M |
| Non-operating | -305M to 12,200M |
| ||
| Vibration | ||
| Operating | |
| Linear | 10-500 Hz, 1.0G (0 to peak) |
| Random | 10-500 Hz (0.309 g² / Hz) |
| ||
| ||
| Electrical Specifications | ||
| Current Requirements | ||
| 5 VDC | |
| Read/Write | 500 mA |
| Idle | 400 mA |
| Standby | 50 mA |
| Sleep | 20 mA |
| ||
| Power Dissipation | |
| Read/Write | 2.50 Watts |
| Idle | 0.85 Watts |
| Standby | 0.25 Watts |
| Sleep | 0.10 Watts |
| ||
Click here to view the manufacturer's item description/brochure
Alternate MPNs: WX675 0WX675
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
