Samsung Spinpoint M60 HM080II SATA Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 80GB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 9mm Fits Most laptops |
| Electrical Interface: | SATA 150 - 1.5Gbps |
| RAM: | 8MB |
Description

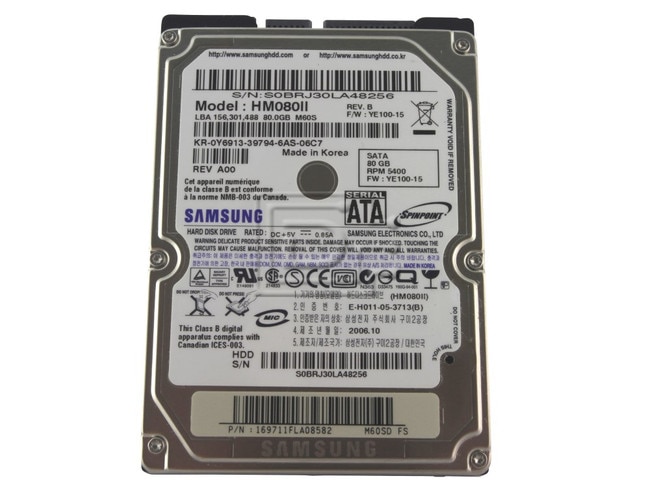

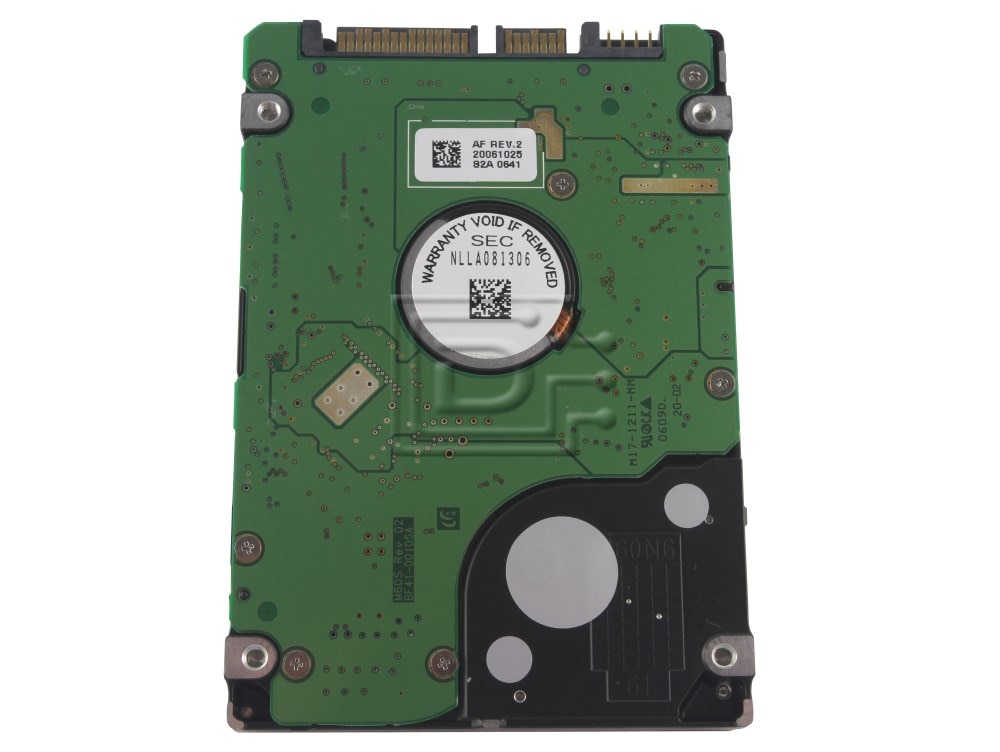

Samsung Spinpoint M60 HM080II 80GB 5.4K 2.5" SATA Hard Drive - Refurbished
- 80GB formatted capacity
- Serial ATA 1.5Gbps interface support
- Device initiated SATA power management
- Load/unload head technology
- ATA SMART feature set
- ATA device configuration overlay feature set
- SilentSeek™
- TuMR head with wireless suspension design
- SATA native command queuing feature set
- Fluid dynamic bearing spindle motor technology
- ATA security mode feature set
- ATA automatic acoustic management feature set
- Multi-Burst On-The-Fly error correction
- Hybrid latch system for reliability and quietness
Alternate PNs: Y6913 0Y6913
Compatibility
This drive is compatible with any computrer that accepts 2.5" SATA hard drives.
Specifications
| Specifications | |
|---|---|
| Model number | HM080II |
| Model Name | Spinpoint M60 |
| Formatted Capacity | 80 Gbytes |
| Rotational Speed | 5,400 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 1.5 Gbps |
| Average Seek Time | 12.0 msec typical |
| Physical | |
| Height | 9.39 mm |
| Width | 100.7 mm |
| Length | 69.85 mm |
| Weight | 99 g |
| Electrical | |
| Power (Typical) | 2.1 watts |
| Power (Idle) | .60 watts |
| Startup Current (3.3 VDC) | .9 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 325 Gs |
| Max Nonoperating Shock (2-msec) | 1000 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 2.4 Bels |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^14 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: Y6913 0Y6913
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
