Fujitsu MJA2080BH SATA Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 80GB |
| Speed: | 5.4K RPM |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 9mm Fits Most laptops |
| Electrical Interface: | SATA 150 - 1.5Gbps |
| RAM: | 8MB |
Description

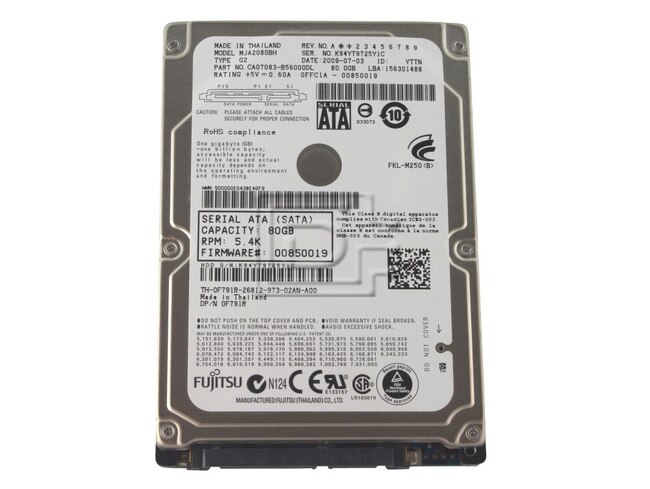

Fujitsu MJA2080BH 80GB 5.4K 2.5-inch SATA Hard Drive - Refurbished OEM
Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu further enriches the 2.5-inch line-up by introducing a new 5,400 RPM, 3.0Gb/sec. SATA interface, with high storage capacities up to 500GB and a 9.5mm z-height. The 500GB capacity point is 56% larger than the previous generation disk drive, providing the highest capacity available in the smallest footprint.
As part of the Fujitsu Green Policy Innovation program, the MJA2-BH series provides bestin-class read/write power consumption of 1.4W (SATA 3.0Gb/sec.), a reduction of 33% from previous generation models. In addition, the new series complies with the RoHS directive, and is the first Fujitsu hard disk drive to be halogen free*. With the delivery of this 4th generation 5,400 RPM perpendicular recording SATA hard disk drive, the Fujitsu MJA2-BH series is suited for today’s notebook PCs, desktop PCs, consumer electronics, and other mobile applications. * Halogen free as defined by levels of chlorine (CL) and bromine (Br) or a co
Alternate PN: F791R 0F791R
Compatibility:
This drive is compatible with any laptop/computer that uses 2.5" SATA hard drives.
Specifications
| Specifications | |
|---|---|
| Model number | MJA2080BH |
| Rotational Speed | 5,400 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Number of Discs (physical) | 2 |
| Number of Heads (physical) | 4 |
| Performance | |
| External (I/O) Transfer Rate (max) | 150 Mb/sec |
| Average Seek Time | 12 msec typical |
| Track-to-Track Seek | 2 msec typical |
| Average Latency | 5.55 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Height | 9.5 mm |
| Width | 69.85 mm |
| Length | 100 mm |
| Weight | 101 g |
| Electrical | |
| Power (Typical) | 2.5 watts |
| Power (Idle) | 1.0 watts |
| Startup Current | 4.5 w |
| Environmental | |
| Max Operating Shock (2-msec) | 325 Gs |
| Max Nonoperating Shock (2-msec) | 850 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 60 deg C |
| Nonoperating Temperature (min) | -20 deg C |
| Reliability | |
| MTTF (Hours) | 300,000 hours |
| Nonrecoverable Read Errors | 1 per 10^13 bits read |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: F791R 0F791R
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
