SANDISK Part #/MPN: LB806R
DiscTech Item #: SAN-LB806R-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 310
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC

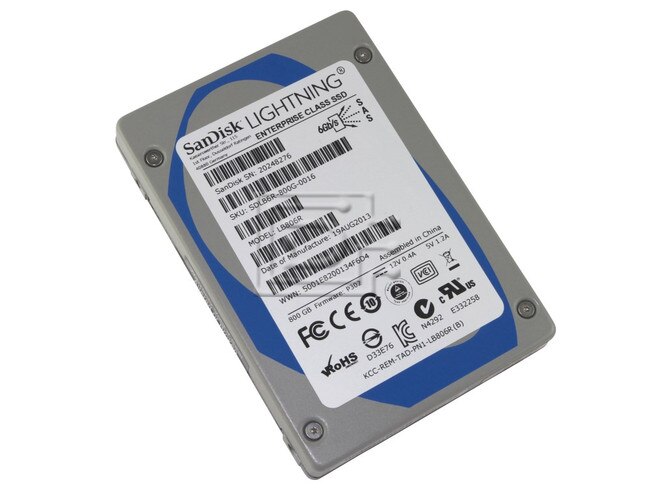

SanDisk LB806R / SDLB6JC-800G 800GB 2.5in 6Gbps MLC Enterprise Lightning Read-Intensive SAS SSD - Brand New
SanDisk LB806R 800GB 2.5" 6.0 Gbps Multi-Level Cell Enterprise Lightning Read-Intensive Serial Attached SCSI Solid State Disk Drive - Brand New
Alt MPN: SDLB6JC-800G
Lightning Read-Intensive SAS SSD’s
Superior Read Cache and I/O Pattern Performance for Read-Heavy Enterprise Applications
Lightning Read-Intensive SAS SSDs offer solid cost-to-performance benefits for applications that demand low latency read speeds and greater bandwidth for high-speed storage and server environments. These SSDs use a parallel processing architecture that provides predictable performance, low response times under peak conditions, and proven endurance for superior value. These SSDs are ideal for mission critical, 24/7 read-intensive applications workloads with a 90/10 read/write mix.
File Servers
When flash storage is used with management software, data retrieval is optimized to match the ebbs and peaks of workload demands. Providing performance to meet rising demands is key to maintaining quality of service (QoS) for delivering data to end users.
Front-End Web Servers
Flash storage accelerates the Internet traffic that enters the data center for processing and helps to overcome I/O bottlenecks. In addition to accelerating Web traffic for enterprise data centers, SSDs support fast processing by cloud service providers.
Media Streaming and Content Creation
Flash storage works with large datasets that are generated for movies, videos, and music, and are distributed via broadcast and the Internet. These products must support high data transfer rates, faster animation rendering, and image-painting. This enhances performance with near-real-time results, improving the customer experience for those viewing the content.
Video on Demand (VOD)
Video on Demand (VOD) is accessed by PCs , smartphones, and entertainment HD-TVs or consoles. It allows users to access video from virtually any device instantly; and it gives media companies the ability to serve thousands of users simultaneously.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) SAS drives.
| Drive Model | LB 806R |
|---|---|
| Part Number | SDLB6JC-800G |
| Performance/IOPS | |
| Data Throughput (Sequential Read/Write) | 310/140 MB/s |
| Total IOPS (Read) | 78,000 IOPS |
| Random Read/Write 4KB - 50/50 (single port) | 4,000 IOPS |
| Random Read/Write 8KB - 50/50 (single port) | 17,000 IOPS |
| Interface, Capacity, and Memory Technolgy | |
| Host Interface | 6Gb/s SAS |
| Interface Ports | Dual (2) full-duplex |
| Form Factor | 2.5 inch |
| MLC User Capacities | 800GB |
| Sector Size Supported | 512, 520 or 528 bytes/sector |
| Reliability | |
| MLC Page Pairing Protection | No risk of data loss |
| Unrecovered Bit Error Rate (UBER) | <1 sector in 10e16 bits read |
| End-to-End Data Protection | No performance impact |
| Patrol Read (automatic) | No performance impact |
| Power-on Hours | 8760 hours per year |
| MTBF | 2 million hours |
| Physical Dimensions | |
| Height (max) (mm/in) | 15.0/0.591 |
| Width (max) (mm/in) | 70.1/2.76 |
| Length (max) (mm/in) | 100.45/3.954 |
| Weight (g/lb) | 238/0.5247 |
| Power Consumption | |
| Idle | 3.9 watts |
| Typical | 5.9 watts |
| Environment | |
| Operating Temperature (ambient) | 0 to 60° C |
| Non-Operating Temperature | -40 to 85° C |
| Start-up time (Power-On to Ready) | <15 seconds |
| Certification | |
| Intel | Tested Hardware Operational List (THOL) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDLB6JC-800G
