SANDISK Part #/MPN: LB806R
DiscTech Item #: SAN-LB806R-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

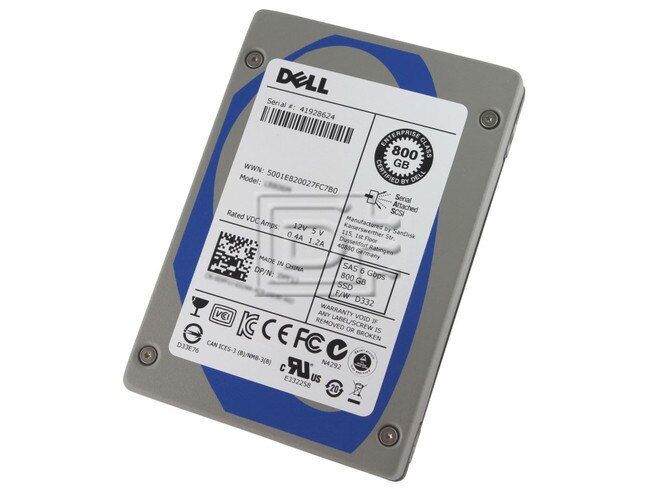

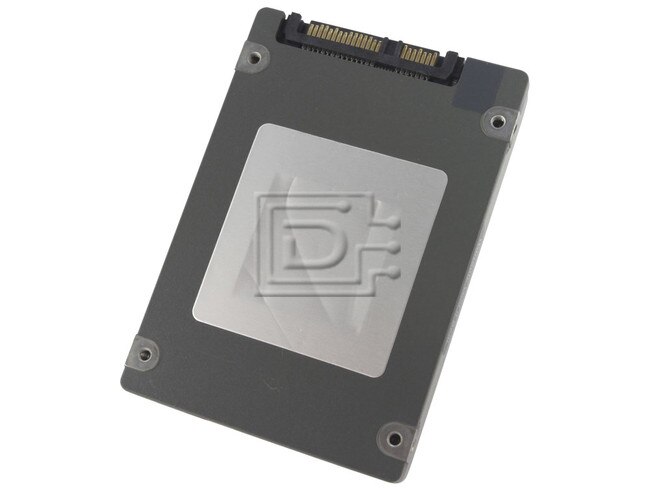

SanDisk Lightning Read Intensive LB806R 800GB 6Gbps 2.5in eMLC Enterprise SAS SSD
Alt MPNs: 5Y05N 05Y05N SDLB6JC-800G
Lightning® Read-Intensive SAS SSDs
An enterprise solution that provides on-demand performance for multiple users
Enterprise SSDs provide substantial performance and footprint benefits over traditional HDDs where data centers can realize significant cost savings while improving performance flexibility, and increasing storage capacity. Since not all data centers are created equal, the key to achieving increased data and system performance is in understanding the specific application workload. Lightning Read-Intensive 6Gb/s (SAS) SSDs offer solid I/O cost-to-performance benefits for applications that demand low latency read speeds and greater bandwidth for server and storage environments.
Available in 400GB, 800GB and 1.6TB MLC capacities and delivers random read/write performance of up to 78K/4K-8K IOPS and sequential read/write data throughput of up to 310-410/140 MB/s. Lightning Read-Intensive SSDs provide superior performance for read cache and I/O patterns that are designed predominately for application workloads such as Data Warehousing, Web Servers, Media Streaming, Video on Demand (VOD) and Web-Based Applications, with a workload comprised of a 90/10 read/write mix.
Lightning Read-Intensive SSDs are designed with an advanced innovative controller that uses a parallel processing architecture with single firmware binary for superior reliability. Lightning SSDs rank among the most competitive solutions in the industry, offering high speeds with a history of successful implementations into existing server and storage IT infrastructures.
Features
- End-to-End Data Protection
- Capacitor-Backed Cache
- Reliability: 2M hour MTB
- UBER: <1 sector 10^16 bits read
Benefits
- Predictable Performance
- Trusted Reliability
- Cost-Effective I/O
Application Workloads
- Data Warehousing
- Web Servers
- Media Streaming
- Virtual Tape Libraries (VTL)
- Video on Demand (VOD)
- Web-Based Applications
- File Servers
Compatibility:
Compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Lightning Read-Intensive 2.5” SAS Enterprise SSDs | |
|---|---|
| Model Number | LB806R |
| Performance/IOPS | |
| Data Throughput (Sequential Read/Write) | 310/140 MB/s |
| Total IOPS (Random Read) | 78,000 IOPS |
| Random Write 4KB – 90/10 (single port) | 4,000 IOPS |
| Random Write 8KB – 90/10 (single port) | 17,000 IOPS |
| Interface, Capacity, and Memory Technology | |
| Host Interface | 6Gb/s SAS |
| Interface Ports | Dual (2) full-duplex |
| Form Factor | 2.5 inch |
| MLC User Capacities | 800GB |
| Sector Sizes Supported | 512, 520 or 528 bytes/secto |
| Reliability | |
| MLC Page Pairing Protection | No risk of data loss |
| Unrecovered Bit Error Rate (UBER) | <1 sector in 10^16 bits read |
| End-to-End Data Protection | No performance impact |
| Patrol Read (automatic) | No performance impact |
| Power-on Hours | 8760 hours per year |
| MTBF | 2 million hours |
| Physical Dimensions | |
| Height (max) | 15.0 mm |
| Width (max) | 70.1 mm |
| Length (max) | 100.45 mm |
| Weight | 0.238 Kg |
| Power Consumption | |
| Idle | 3.9 watts |
| Typical | 5.9 watts |
| Operating Temperature (ambient) | 0 to 60° C |
| Non-operating Temperature | -40 to 85° C |
| Start-up Time (Power-on to Ready) | <15 seconds |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDLB6JC-800G 5Y05N 05Y05N
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
