SANDISK Part #/MPN: SDLTODKR-800G-5C20
DiscTech Item #: SAN-SDLTODKR-800G-5C20-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: Up to 980/600
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

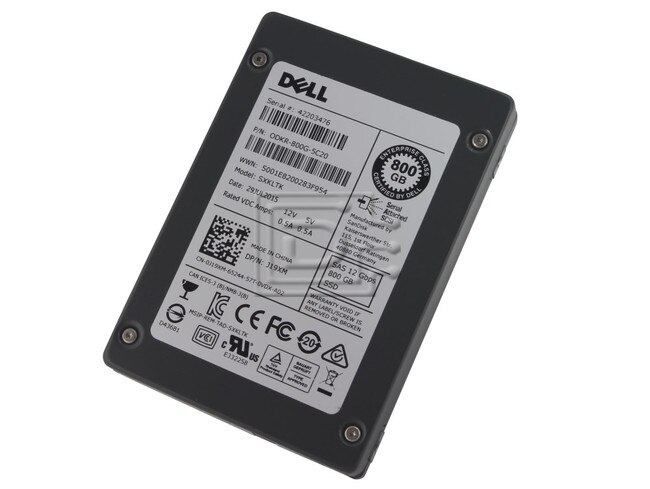

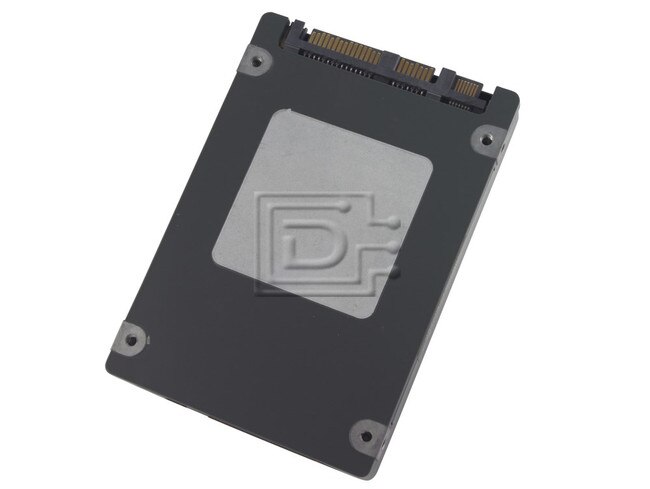

SanDisk Lightning Eco Gen. II SDLTODKR-800G-5C20 / J19XM 800GB 12.0Gbps 2.5in SFF Enterprise MLC 3-DWPD SAS Solid State Drive - Brand New OEM
Dell Part Numbers: J19XM, 0J19XM
Lightning® Gen. II Product Family of SAS SSDs
Maximum bandwidth and performance for a variety of write-intensive, mixed-use and read-intensive applications
Lightning Eco™ Gen. II SAS SSDs
Lightning Eco™ Gen. II SAS SSDs offer solid I/O cost to performance benefits with low latency data access for high quality of service (QoS). Available in 19nm eMLC capacities from 1TB – 1.6TB2 and with random read/write performance of up to 180K/35K IOPS and sequential read/write speed of up to 1000/500 MB/s. These SSDs are designed for read-intensive applications such as Data Warehousing, Media Streaming, Video on Demand (VOD), Web-based Applications, Virtual Tape Libraries (VTL) and File Servers, with a heavy read workload comprised of a 90/10 read/write mix. This SSD offers 3 full drive writes per day (DWPD) with a limited 5 year warranty.
Application Workloads
- Web Servers
- Data Warehousing
- Media Streaming
- Virtual Tape Libraries (VTL)
- Video on Demand (VOD)
- Web-Based Applications
- File Servers
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives with Dell firmware.
Lightning Eco™ | |
---|---|
Model Number | SDLTODKR-800G-5C20 |
Performance | |
Interface | 12Gb/s SAS |
Interface Ports | Dual full-duplex |
Sequential Read/Write (MB/s) | Up to 980/600 |
Random Read/Write (IOPS) (4K-single port) | Up to 195K/80K |
Capacity | |
19nm User Capacities | 800GB |
Reliability | |
Sector Sizes | 512, 520, 4K bytes/sector, T10-DIF 1, DIF 2 Support |
Data Reliability (UBER) | <1 sector in 10^18 bits read |
MTBF | 2.5 Million Hours |
Endurance | |
DWPD (Random Read) | 3 DWPD |
Power | |
Idle | 3.9W |
Active (Typ) | 5.9W |
Environmental | |
Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
Vibration | 2.17 g rms, 7-800 Hz |
Operating Temperature | 0° C to 60° C |
Storage Temperature | -40° C to 85° C |
Humidity | 5% to 95%, non-condensing, relative humidity |
Altitude | 5486.4 m [18,000 ft] |
Mechanical | |
Length | 100.45 mm |
Width | 70.1 mm |
Height | 15.0 mm |
Weight | 0.238 Kg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: J19XM 0J19XM
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
