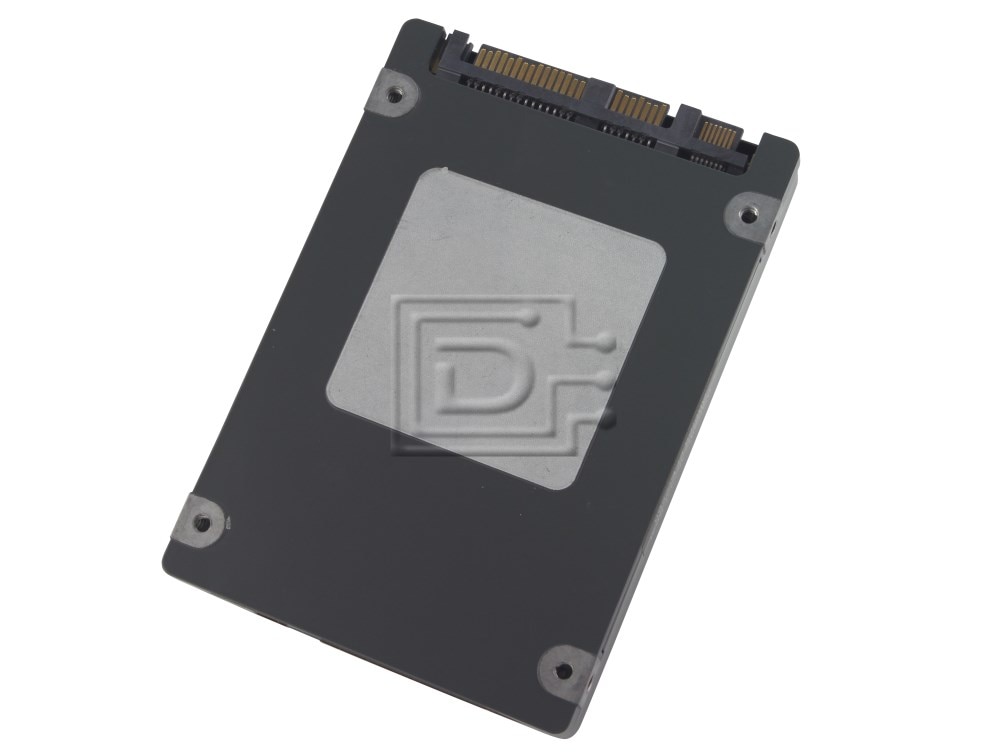

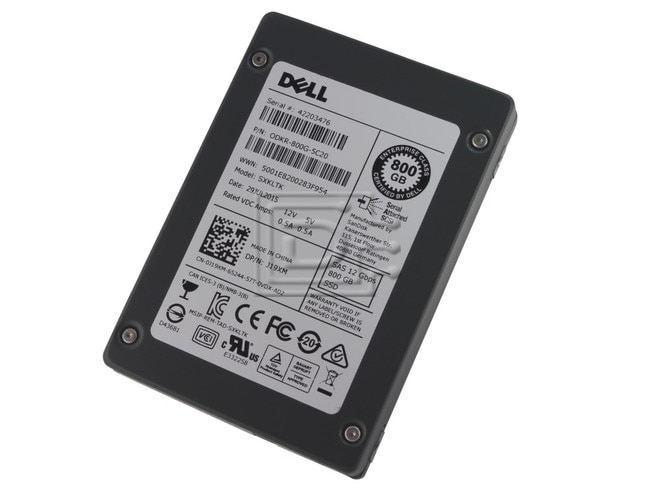

SanDisk Lightning Eco Gen. II SDLTODKR-800G-5C20 / J19XM 800GB 12Gbps SAS SSD
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 800GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
SanDisk Lightning Eco Gen. II SDLTODKR-800G-5C20 / J19XM 800GB 12Gbps 2.5" SFF eMLC 3-DWPD SAS Solid State Drive - New Pull OEM
Dell Part Numbers: J19XM, 0J19XM
Lightning® Gen. II Product Family of SAS SSDs
Maximum bandwidth and performance for a variety of write-intensive, mixed-use and read-intensive applications
Lightning Eco™ Gen. II SAS SSDs
Lightning Eco™ Gen. II SAS SSDs offer solid I/O cost to performance benefits with low latency data access for high quality of service (QoS). Available in 19nm eMLC capacities from 1TB – 1.6TB2 and with random read/write performance of up to 180K/35K IOPS and sequential read/write speed of up to 1000/500 MB/s. These SSDs are designed for read-intensive applications such as Data Warehousing, Media Streaming, Video on Demand (VOD), Web-based Applications, Virtual Tape Libraries (VTL) and File Servers, with a heavy read workload comprised of a 90/10 read/write mix. This SSD offers 3 full drive writes per day (DWPD) with a limited 5 year warranty.
Application Workloads
- Web Servers
- Data Warehousing
- Media Streaming
- Virtual Tape Libraries (VTL)
- Video on Demand (VOD)
- Web-Based Applications
- File Servers
Compatibility
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives with Dell firmware.
Specifications
| Lightning Eco™ | |
|---|---|
| Model Number | SDLTODKR-800G-5C20 |
| Performance | |
| Interface | 12Gb/s SAS |
| Interface Ports | Dual full-duplex |
| Sequential Read/Write (MB/s) | Up to 980/600 |
| Random Read/Write (IOPS) (4K-single port) | Up to 195K/80K |
| Capacity | |
| 19nm User Capacities | 800GB |
| Reliability | |
| Sector Sizes | 512, 520, 4K bytes/sector, T10-DIF 1, DIF 2 Support |
| Data Reliability (UBER) | <1 sector in 10^18 bits read |
| MTBF | 2.5 Million Hours |
| Endurance | |
| DWPD (Random Read) | 3 DWPD |
| Power | |
| Idle | 3.9W |
| Active (Typ) | 5.9W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17 g rms, 7-800 Hz |
| Operating Temperature | 0° C to 60° C |
| Storage Temperature | -40° C to 85° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length | 100.45 mm |
| Width | 70.1 mm |
| Height | 15.0 mm |
| Weight | 0.238 Kg |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: J19XM 0J19XM
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
