SANDISK Part #/MPN: SDLFODAR-480G-1HA1
DiscTech Item #: SAN-SDLFODAR-480G-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 450/400
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

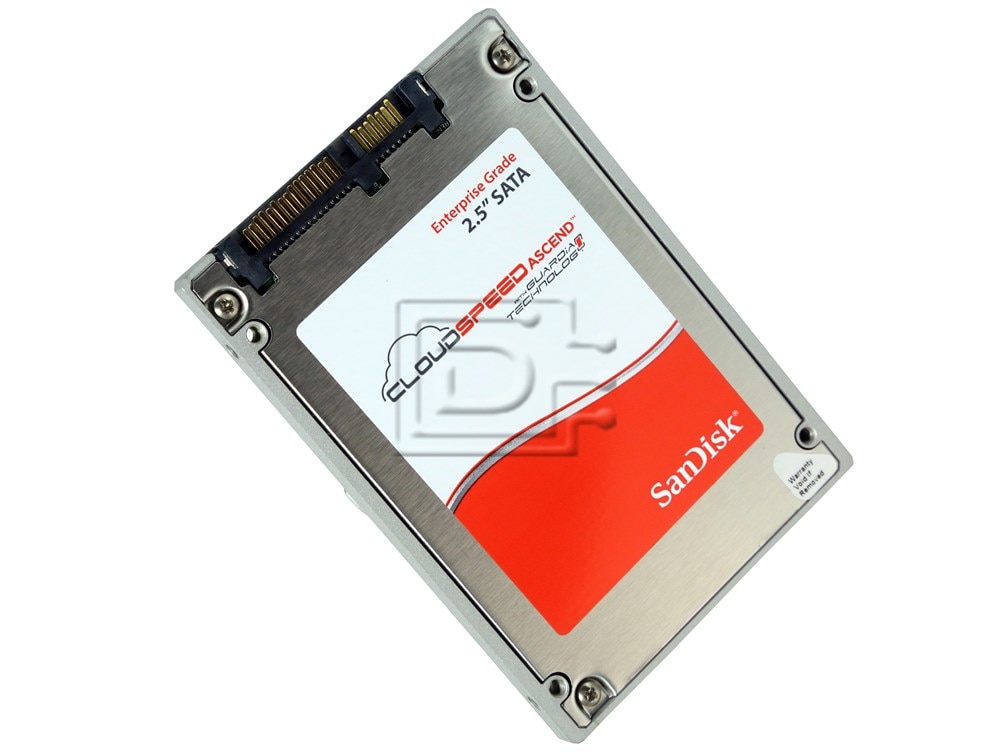

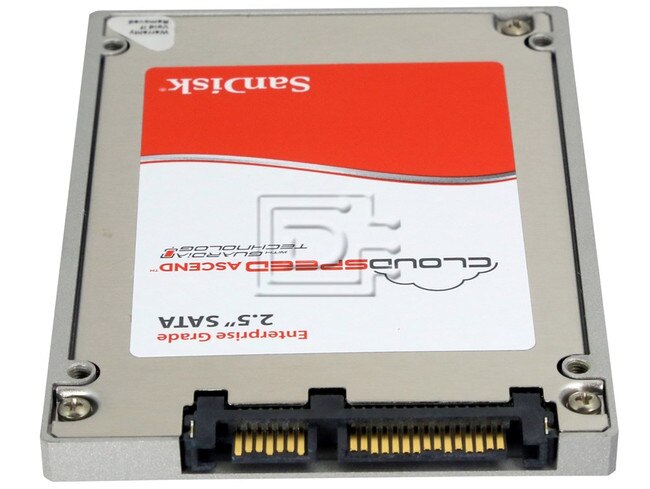

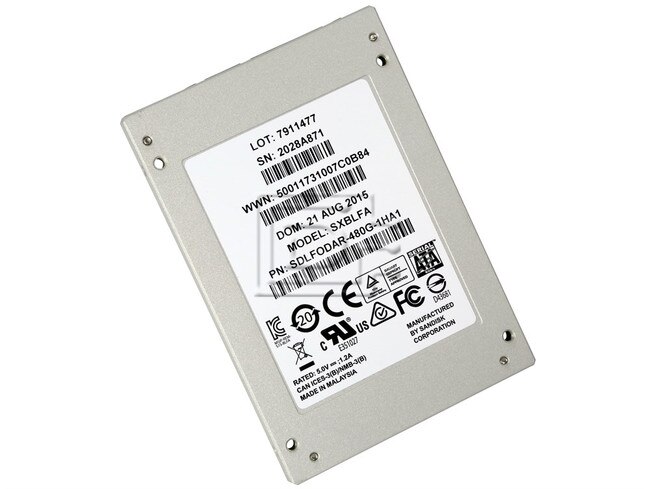

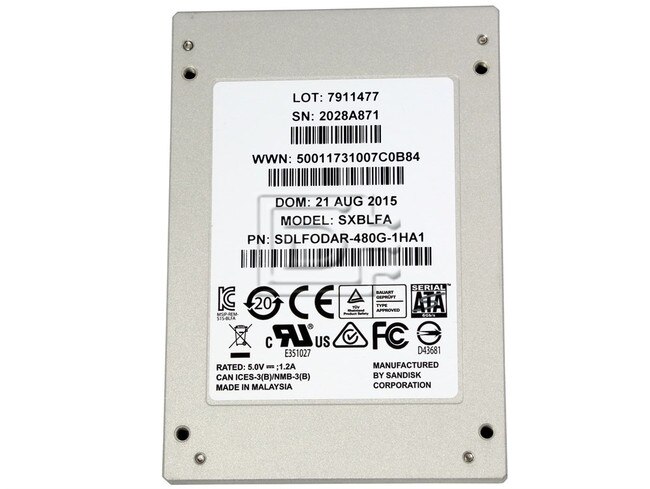

SanDisk CloudSpeed Ascend SXBLFA SDLFODAR-480G / SDLFODAR-480G-1HA1 480GB 2.5 inches 6Gbps MLC Read Intensive Serial ATA / SATA SSD - Brand New
SanDisk CloudSpeed Ascend SXBLFA SDLFODAR-480G 480GB 2.5" 6.0 Gb/s Multi-Level Cell Read Intensive 1 Drive Write Per Day Serial Attached Technology Attachment Solid State Disk Drive - Brand New
CloudSpeed Ascend™ SATA SSDs
Cost-effective storage for read-intensive workloads with excellent performance and industry-leading reliability.
SanDisk’s CloudSpeed Ascend™ SATA SSDs are the next generation of 19nm NAND with higher performance that are optimized for enterprise server and cloud computing environments. CloudSpeed Ascend SSDs are ideally suited for readintensive applications such as, File Servers, Web-based Applications and Virtual Tape Libraries (VTL). The CloudSpeed Ascend SSDs excellent price-performance makes it an ideal replacement for hard disk drives.
Available in capacities of 240GB to 960GB*, CloudSpeed Ascend SSDs feature a 6Gb/s SATA interface and provide data transfer rates up to 450/400 MB/s** sequential read/write and performance up to 80K/15K IOPS random read/write. CloudSpeed Ascend SSDs offer high data integrity by employing a combination of powerful error correction and detection, full data path protection, thermal monitoring, and data fail recovery.
Guardian Technology™ Platform
CloudSpeed Ascend SATA SSDs are powered by SanDisk’s proprietary Guardian Technology Platform, a suite of enterprise features that include FlashGuard™, DataGuard™ and EverGuard™ technologies.
FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from cost-effective 19nm MLC flash, making it suitable for read-intensive application workloads.
DataGuard Technology features full data path protection, safeguarding user data from corruption along all data paths in the SSD.
EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd genearation backup power circuit design and high-reliability discrete capacitors.
Featires
- Guardian Technology™ Platform
- Up to 5x Better Endurance than Client MLC SSDs
- Powerful Error Correction and Detection
- High-Reliability Backup Power Circuitry
- Data Path Protection
- Data Fail Recovery
- Thermal Management
- Comprehensive S.M.A.R.T. Attributes
Read-Intensive Application Workloads
- File Servers
- Web-based Applications
- Virtual Tape Libraries (VTL)
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.
| CloudSpeed Ascend™ SATA SSDs | |
|---|---|
| Part Number | SDLFODAR-480G |
| Alternate Part Number | SDLFODAR-480G-1HA1 |
| Model | SXBLFA |
| Performance | |
| Interface | SATA 6Gb/s |
| Sequential Read/Write (MB/s) | Up to 450/400 MB/s |
| Random Read/Write (IOPS) | Up to 80K/15K IOPS |
| Access Time | <2.0 ms/td> |
| 19nm MLC User Capacities | 480 GB/td> |
| Reliability | |
| Data Reliability (BER) | 1 unrecoverable error in 10^17 bits read |
| MTBF | 2.5M hours |
| Data Fail Recovery | Recover up to 1 NAND flash erase block of data |
| Power Fail Recovery | High-reliability backup-power circuitry |
| Temperature Monitoring | Performance throttling upon warning/critical temperature |
| Endurance | 1DWPD |
| Power | |
| Vcc | 5V ± 5% |
| Active (Typ) | 5.2W |
| Idle | 2.2W |
| Environmental | |
| Shock (operating) | 1000g @ 1.0 msec, 1 shock along each axis, X, Y, Z, in each direction |
| Vibration (operating) | 2.17 g rms 7-800 Hz |
| Operating Temperature | 0° C to 70° C (internal) |
| Storage Temperature | -40° C to 95° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | -200 feet to 10,000 feet |
| Mechanical | |
| Length | 100.2 mm |
| Width | 69.85 |
| Height | 7 mm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDLFODAR-480G
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
