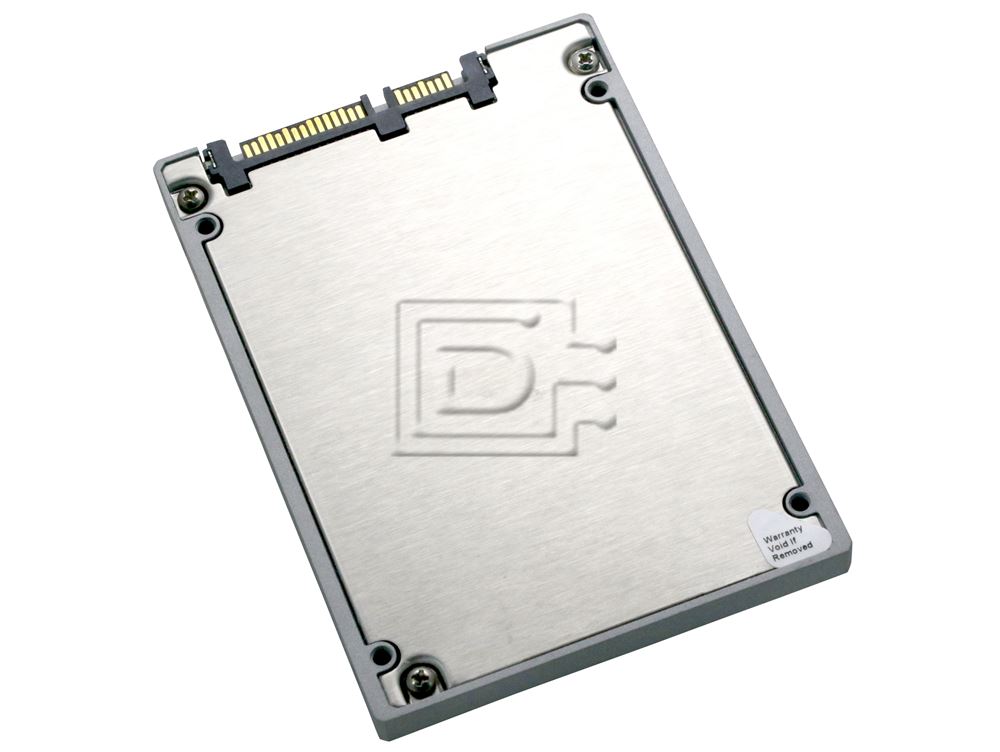

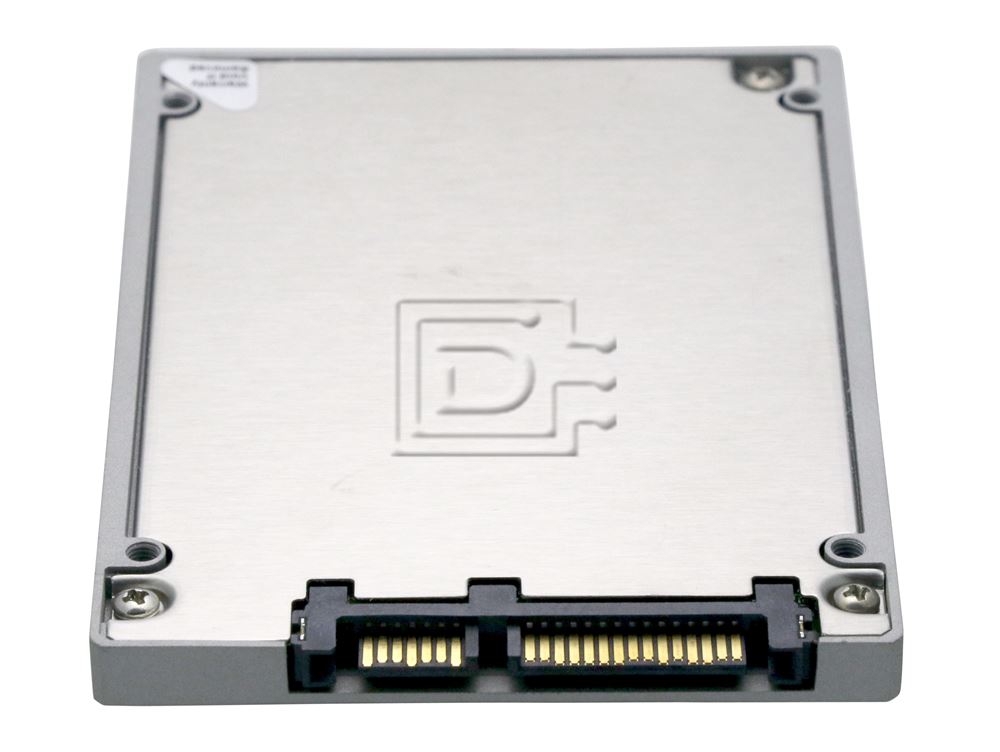

SANDISK Part #/MPN: SDLFNDAR-480G-1H14
DiscTech Item #: SAN-SDLFNDAR-480G-1H14-BN-OE-HPI
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 450/400 MBytes/sec
Average Seek Time: 2
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
The SanDisk CloudSpeed™ Eco Solid State Drive (SSD) product family is designed specifically to address the growing need for SSDs that are optimized for mixed workload applications in enterprise server and cloud computing environments. Leveraging SanDisk’s proprietary Guardian Technology™ Platform, tier-one OEM-enterprise firmware, proven power fail technology, and the latest generation of consumer Multi-Level Cell (MLC) NAND flash, the CloudSpeed SSD product family offers all the features expected from an enterprise-class drive at the right value.
Available in capacities of 240 GBytes, 480 GBytes, and 960 GBytes, the CloudSpeed Eco SSD product family features a 6 Gigabits (Gbits)/sec Serial Advanced Technology Attachment (SATA) interface and provides up to 450/350 megabytes (MBytes)/sec sequential read/write and up to 80K/30K Input/Output Operations Per Second (IOPS) random read/write performance.
The CloudSpeed Eco product family is powered by SanDisk’s proprietary Guardian Technology Platform™, a comprehensive suite of innovative features comprised of FlashGuard™, DataGuard™, and EverGuard™ technologies.
FlashGuard extends the native endurance of Multi-Level Cell (MLC) flash-based products. It combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD. Using these features, with proprietary-enhanced errorcorrection techniques, FlashGuard technology provides the endurance enhancements required to enable the use of MLC flash in mission-critical enterprise applications.
CloudSpeed Eco implements data path protection using a comprehensive set of features, including:
- • ECC and parity protection on internal data path memories
- • CRC protection on internal SATA link data paths
- • ECC on data resident in flash
- • Flexible Redundant Array of Independent Memory Elements (FRAME) block-level flash data recovery/ redundancy
EverGuard protects against loss of user data in the event of unexpected power interruptions using a third-generation backup power circuit design and high-reliability discrete capacitors. SanDisk has built its foundation by providing proven technology and quality products to the most demanding Fortune 100 OEMs. SanDisk engineers its products to perform at the highest degree of reliability and compatibility.
Read-Intensive Application Workloads
- File Servers
- Web-based Applications
- Virtual Tape Libraries (VTL)

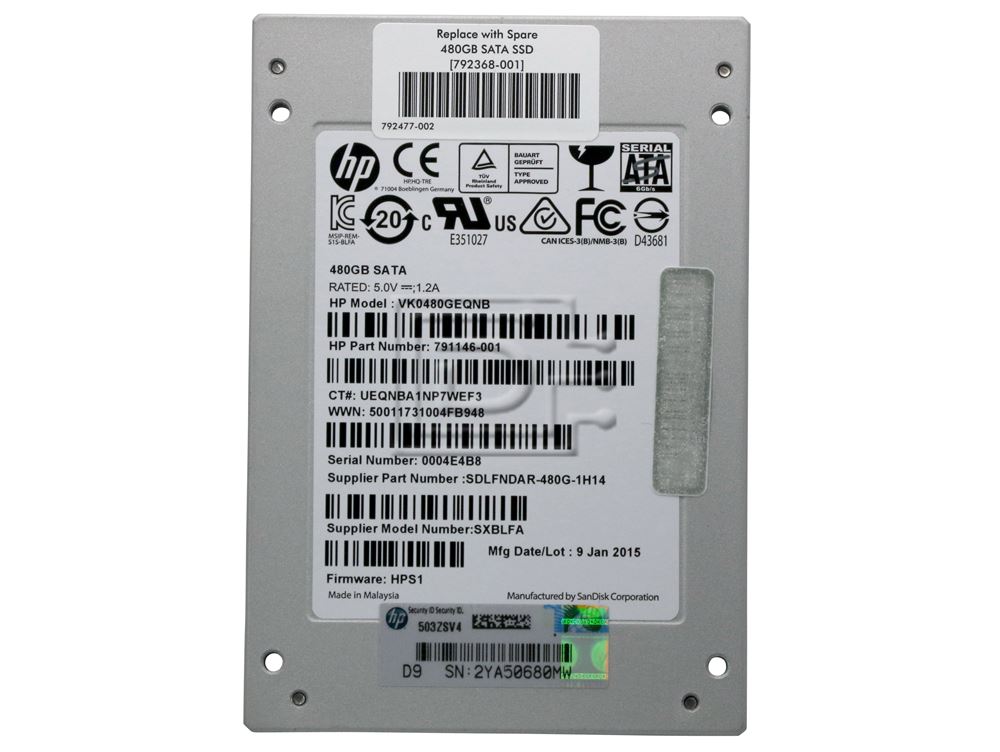

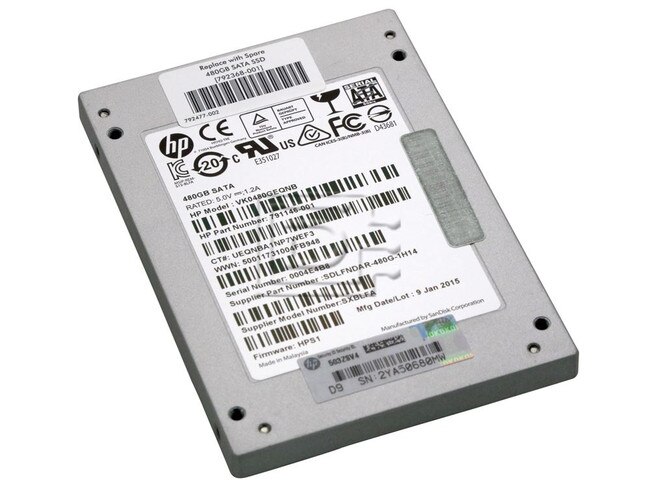

HP Model: VK0480GEQNB
ALT MP/N: 792368-001 792243-001 791146-001 SDLFNDAR-480-1H14 SXBLFA
Compatibility: This drive is compatible with laptops, workstations, desktops, and servers / SANs that accept 2.5" x 7mm (Thin/Case) SATA drives.
| CloudSpeed Eco™ SATA SSDs | |
|---|---|
| Part Number | SDLFNDAR-480G / VK0480GEQNB |
| Alternate Part Number | SDLFNDAR-480G-1H14 |
| Model | SXBLFA |
| Performance | |
| Interface | SATA 6Gb/s |
| Sequential Read/Write (MB/s) | Up to 450/400 MBytes/sec |
| Random Read/Write (IOPS) | Up to 80K/15K IOPS |
| Access Time | <2.0 ms/td> |
| 19nm MLC User Capacities | 480 GB/td> |
| Reliability | |
| Data Reliability (BER) | 1 unrecoverable error in 10^17 bits read |
| MTBF | 2.5M hours |
| Data Fail Recovery | Recover up to 1 NAND flash erase block of data |
| Power Fail Recovery | High-reliability backup-power circuitry |
| Temperature Monitoring | Performance throttling upon warning/critical temperature |
| Endurance | 1DWPD |
| Power | |
| Vcc | 5V ± 5% |
| Active (Typ) | 5.2W |
| Idle | 2.2W |
| Environmental | |
| Shock (operating) | 1000g @ 1.0 msec, 1 shock along each axis, X, Y, Z, in each direction |
| Vibration (operating) | 2.17 g rms 7-800 Hz |
| Operating Temperature | 0° C to 70° C (internal) |
| Storage Temperature | -40° C to 95° C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | -200 feet to 10,000 feet |
| Mechanical | |
| Length | 100.2 mm |
| Width | 69.85 |
| Height | 7 mm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: VK0480GEQNB 792368-001 792243-001 791146-001 SDLFNDAR-480-1H14 SDLFNDAR-480
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
