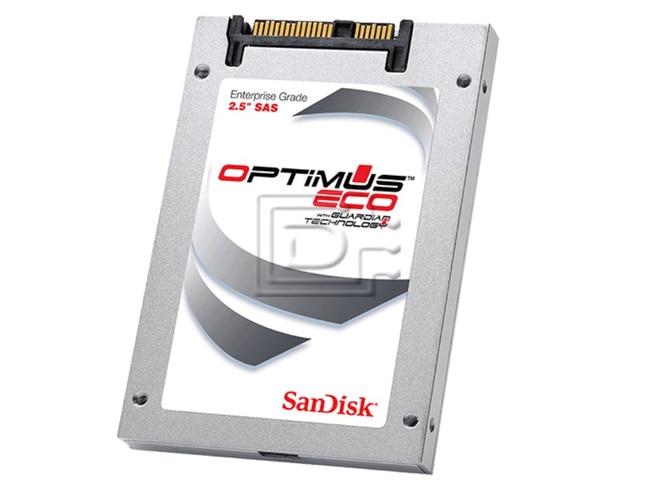

SanDisk Optimus Eco SDLKOC6R-800G 800GB 2.5" 6Gbps eMLC SAS SSD

SANDISK Part #/MPN: SDLKOC6R-800G

DiscTech Item #: SAN-SDLKOC6R-800G-RF-OE

$999.00

Refurbished
Warranty:1 Year DiscTech
Special Order - Ships in 5-10 business days

Back

$999.00

Enterprise Grade

Capacity: 800GB

Speed: Solid State

Interface Types: SAS

Form Factor: 2.5" x 9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: 530

Electrical Interface: SAS-2 6Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive / RI

SanDisk Optimus Eco SDLKOC6R-800G 800GB 2.5" 6Gbps eMLC Read-Intensive 3-DWPD SAS SSD - Refurbished

SanDisk Optimus Eco SDLKOC6R-800G / SDLKOC6R-800G-5CA1 800GB 2.5" 6.0 Gbps Enterprise Multi-Level Cell Read-Intensive 3-DWPD Serial Attached SCSI Solid State Disk Drive - Refurbished

Optimus Eco™ SAS SSDs

Cost-effective storage for mixed-use and read-intensive workloads with excellent performance.

The Optimus Eco™ SSD ushers in a new era of flash storage bringing together a combination of high performance, capacity, endurance and reliability, while using cost-effective 19nm eMLC flash. This combination makes the Optimus Eco SSD the ideal solution for a wide variety of mixed-used application workloads such as On-line Transactions Processing (OLTP), Financial Transactions, and E-mail/Messaging, and read-intensive application workloads such as Web Servers. Video on Demand (VOD) and Web-based Applications. The Optimus Eco can be deployed by Cloud service providers or hyper-scale data centers, in existing directly attached, SAN, and NAS storage architectures.

The Optimus Eco SSD provides random read/write performance up to 90K/35K IOPS and sequential read/write data transfer rates of up to 530/530 MB/s. The Optimus Eco SSD also includes support for wide-port SAS capability providing up to 1GB/s sequential read performance in applications that support this advanced feature. The Optimus Eco SSD provides 3 random DWPD.

Guardian Technology™ Platform

Optimus Eco SAS SSDs are powered by SanDisk’s proprietary Guardian Technology Platform, a comprehensive suite of enterprise features comprised of FlashGuard™, DataGuard™ and EverGuard™ technologies.

FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from commercial-grade MLC flash, makig it suitable for mixed-use and read0intensive application workloads.

DataGuard Technology features full date path protection, safeguarding user data from corruption along all data paths in the SSD.

EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd generation backup power circuit design and high0reliability discrete capacitors. Optimus Eco SAS SSDs are designed for I/O intensive mission-critical, 24/7 applications.

Features

3 Full Random DWPD
Data integrity – BER 100,000,000,000,000,000
FlashGuard – Enhances Flash Endurance
DataGuard – Ensures Data Integrity
EverGuard – Reliable 24x7 operation

Mixed-Use Applications Workloads

On-Line Transaction Processing (OLTP) Databases
Financial Transactions
E-Commerce
E-Mail/Messaging
Virtual Desktop
Collaboration

Alt MPN's: SDLKOC6R-800G-5CA1

Compatibility:

This drive is compatible with any server that accepts 2.5"x9mm SAS Drives.

Drive Model	SDLKOC6R-800G
Capacity	800GB
Form Factor	2.5" x 9.5mm
Performance
Interface	6Gb/s SAS
Interface Ports	Dual/Wide
Sequential Read/Write (MB/s)	Up to 530/530 MB/s Up to 1 GB/s Wide-Port
Random Read/Write (IOPS)	Up to 90K/35K IOPS
DWPD (Drives Writes Per Day)	3
Capacity
19nm eMLC User Capacities	800GB
Reliability
Sector Sizes	512, 520, 528 byte
Data Reliability (BER)	1 unrecoverable error in 100,000,000,000,000,000 bits read
MTBF	2.5M hours2,500
Data Fail Recovery	F.R.A.M.E. (Flexible Redundant Array of Memory Elements)
Power Fail Recovery	EverGuard Technology: Backup Power Circuitry
Data Path Protection	DataGuard Technology, T10 DIF
Endurance
Random Workload	3 DWPD
Power
Vcc	5V/12V
Active (Typ)	7W
Environmental
Shock	1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction
Vibration	2.17g rms, 7-800 Hz
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 90°C
Humidity	5% to 95%, non-condensing, relative humidity
Altitude	5486.4 m [18,000 ft]
Mechanical
Length (mm/in)	100.20/3.945
Width (mm/in)	69.85/2.75
Height	9.5/0.374
