SANDISK Part #/MPN: SDLKOC6R-800G
DiscTech Item #: SAN-SDLKOC6R-800G-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 530
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

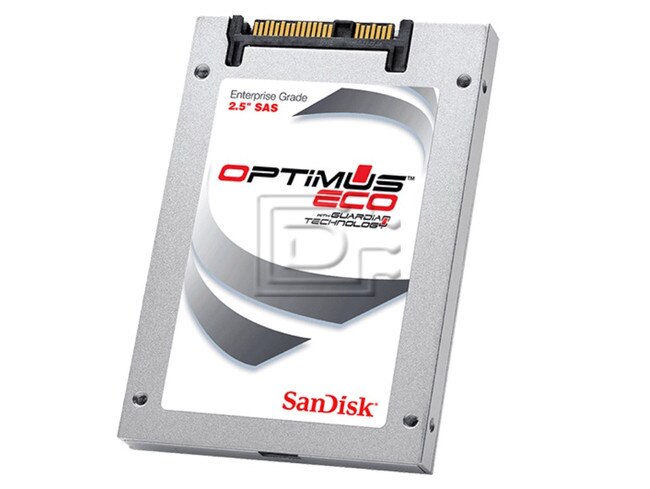

SanDisk Optimus Eco SDLKOC6R-800G 800GB 2.5" 6Gbps eMLC Read-Intensive 3-DWPD SAS SSD - Brand New
SanDisk Optimus Eco SDLKOC6R-800G / SDLKOC6R-800G-5CA1 800GB 2.5" 6.0 Gbps Enterprise Multi-Level Cell Read-Intensive 3-DWPD Serial Attached SCSI Solid State Disk Drive - Brand New
Optimus Eco™ SAS SSDs
Cost-effective storage for mixed-use and read-intensive workloads with excellent performance.
The Optimus Eco™ SSD ushers in a new era of flash storage bringing together a combination of high performance, capacity, endurance and reliability, while using cost-effective 19nm eMLC flash. This combination makes the Optimus Eco SSD the ideal solution for a wide variety of mixed-used application workloads such as On-line Transactions Processing (OLTP), Financial Transactions, and E-mail/Messaging, and read-intensive application workloads such as Web Servers. Video on Demand (VOD) and Web-based Applications. The Optimus Eco can be deployed by Cloud service providers or hyper-scale data centers, in existing directly attached, SAN, and NAS storage architectures.
The Optimus Eco SSD provides random read/write performance up to 90K/35K IOPS and sequential read/write data transfer rates of up to 530/530 MB/s. The Optimus Eco SSD also includes support for wide-port SAS capability providing up to 1GB/s sequential read performance in applications that support this advanced feature. The Optimus Eco SSD provides 3 random DWPD.
Guardian Technology™ Platform
Optimus Eco SAS SSDs are powered by SanDisk’s proprietary Guardian Technology Platform, a comprehensive suite of enterprise features comprised of FlashGuard™, DataGuard™ and EverGuard™ technologies.
FlashGuard Technology combines Aggregated Flash Management, which treats all flash elements as a single system, and Advanced Signal Processing, which dynamically adjusts flash parameters throughout the life of the SSD, to reliably extract significantly more life from commercial-grade MLC flash, makig it suitable for mixed-use and read0intensive application workloads.
DataGuard Technology features full date path protection, safeguarding user data from corruption along all data paths in the SSD.
EverGuard Technology protects against loss of user data in the event of unexpected power interruptions using a 3rd generation backup power circuit design and high0reliability discrete capacitors. Optimus Eco SAS SSDs are designed for I/O intensive mission-critical, 24/7 applications.
Features
- 3 Full Random DWPD
- Data integrity – BER 100,000,000,000,000,000
- FlashGuard – Enhances Flash Endurance
- DataGuard – Ensures Data Integrity
- EverGuard – Reliable 24x7 operation
Mixed-Use Applications Workloads
- On-Line Transaction Processing (OLTP) Databases
- Financial Transactions
- E-Commerce
- E-Mail/Messaging
- Virtual Desktop
- Collaboration
Alt MPN's: SDLKOC6R-800G-5CA1
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm SAS Drives.
| Drive Model | SDLKOC6R-800G |
|---|---|
| Capacity | 800GB |
| Form Factor | 2.5" x 9.5mm |
| Performance | |
| Interface | 6Gb/s SAS |
| Interface Ports | Dual/Wide |
| Sequential Read/Write (MB/s) | Up to 530/530 MB/s Up to 1 GB/s Wide-Port |
| Random Read/Write (IOPS) | Up to 90K/35K IOPS |
| Capacity | |
| 19nm eMLC User Capacities | 800GB |
| Reliability | |
| Sector Sizes | 512, 520, 528 byte |
| Data Reliability (BER) | 1 unrecoverable error in 100,000,000,000,000,000 bits read |
| MTBF | 2.5M hours2,500 |
| Data Fail Recovery | F.R.A.M.E. (Flexible Redundant Array of Memory Elements) |
| Power Fail Recovery | EverGuard Technology: Backup Power Circuitry |
| Data Path Protection | DataGuard Technology, T10 DIF |
| Endurance | |
| Random Workload | 3 DWPD |
| Power | |
| Vcc | 5V/12V |
| Active (Typ) | 7W |
| Environmental | |
| Shock | 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction |
| Vibration | 2.17g rms, 7-800 Hz |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 90°C |
| Humidity | 5% to 95%, non-condensing, relative humidity |
| Altitude | 5486.4 m [18,000 ft] |
| Mechanical | |
| Length (mm/in) | 100.20/3.945 |
| Width (mm/in) | 69.85/2.75 |
| Height | 9.5/0.374 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: SDLKOC6R-800G-5CA1
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
