DiscTech Item #: SAN-SDLTODKM-800G-5CA1-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 1000

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

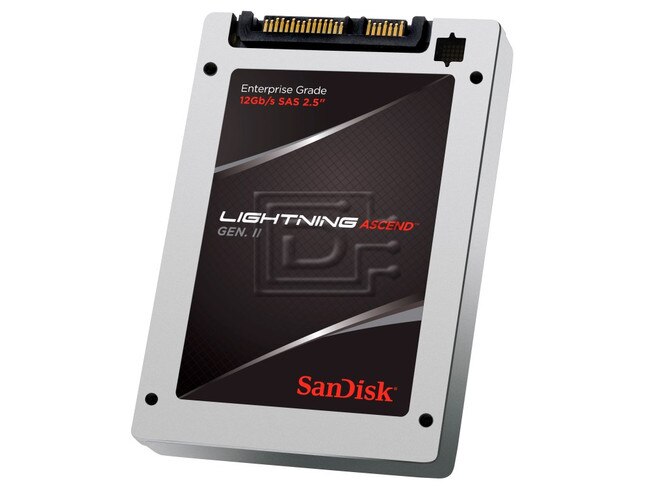

SanDisk SDLTODKM-800G-5CA1 Lightning Ascend Generation 2.0 800GB 2.5" 12.0 Gbps Enterprise Multi-Level Cell Self-Encrypting Serial Attached SCSI Solid State Disk Drive - Brand New


Lightning Asending Gen. II SAS SSD’s
Maximize Application Speed with Bandwidth for the Most Cost-effective IO Performance

Lightning Ascend™ Gen. II SAS SSDs offer superior reliability with high speed data transfer rates where quick access to data is essential. Available in 19nm eMLC, these SSDs are designed for mixed-use applications such as on-line transaction processing (OLTP) databases, email/messaging, e-commerce, virtual desktop infrastructure (VDI), and collaboration with a typical workload comprised of a 70/30 read/write mix.

This next generation Lightning ® SSD offers a feature-rich robust design combined with SanDisk’s innovative parallel processing architecture to deliver full data path protection (supports T10-DIF), temperature based power control, SED instant secure erase, an MTBF of 2.5 million hours and power fail protection.


Collaborative workloads include email, messaging, and groupware. These workloads, such as Microsoft® SharePoint, Microsoft Exchange®, and Linux-based groupware, allow end-users to share content and coordinate with others. SanDisk flash memory promotes ease-of-use by reducing latency and smoothing out the customer experience—even if the amount of end-user updates ebbs and peaks throughout the work day.


Email messages have become essential parts of the official “records” for businesses and organizations. They must be maintained, with accuracy, for legal and compliance purposes. In everyday business, emails are the “glue” of daily business, allowing teams in many locations to collaborate on projects. Flash storage delivers high-volume email updates safely and securely to their destinations, supporting the daily flow of business processes.

On-Line Transaction Processing (OLTP) Databases

  • Databases supporting online transaction processing (OLTP) workloads, such as those used inside “integrated systems,” must keep pace with large amounts of data, as they are updated throughout the day, for 24/7 operations.
  • These databases must scale and be reliable, preserving data as it is written, and recording it for later analysis and use by the business. Accuracy and data integrity are key to these workloads and to their successful deployments across the organization. Often, they serve as the “databases of record” for many important enterprise applications.
  • Lightning Ascend Gen. II SAS SSDs preserve the data and support the accuracy, reliability, and scalability of these databases as they are updated.

Virtual Desktop Infrastructure (VDI)

Lightning Ascend Gen. II SAS SSDs support hundreds of individual end-user “sessions” on a server instead of storing those sessions on local PCs. This approach protects enterprise data and ensures business continuity. Lightning Ascend Gen. II SAS SSDs avoid boot storms which often slow VDI response times when large numbers of end-users start up their personal-desktop applications in a VDI environment.


This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) SAS drives.

Drive ModelSDLTODKM-800G-5CA1
Data Throughput (Sequential Read/Write)1000/600 MB/s
Total IOPS (Random Read) 4KB - (single port)190,000 IOPS
Total IOPS (Random Write) 4KB - (single port)80,000 IOPS
Interface, Capacity, and Memory Technology
Host Interface12Gb/s SAS
Interface PortsDual full-duplex
Form Factor2.5 inch
19nm eMLC User Capacities800GB
Sector Sized Supported512, 520, 528 bytes/sector
Unrecovered Bit Error Rate (UBER)1 sector in 10e17 bits read
End-to-End Data ProtectionNo performance impact
Patrol Read (automatic)No performance impact
Power-on Hours8760 hours per year
MTBF2.5 million hours
DWPD (Random Workload)10 DWPD
Physical Dimensions
Length (mm/in)100.45/3.9547
Width (mm/in)70.1/2.7598
Height (mm/in)15.0/0.59055
Weight (g/lb)238/0.5247
Power Consumption
Idle3.9 watts
Typical5.9 watts
Operating Temperature (ambient)0° C to 60° C
Non-Operating Temperature-40° C to 85° C
Start-up Time (Power-on to Ready)<15 seconds

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SDLTODKM-800G

Weight: 1.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
