Seagate Part #/MPN: ST3250820NS
DiscTech Item #: SGT-ST3250820NS-NP-5Y
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 250GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 72
Average Seek Time: 8.5 / 9.5
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

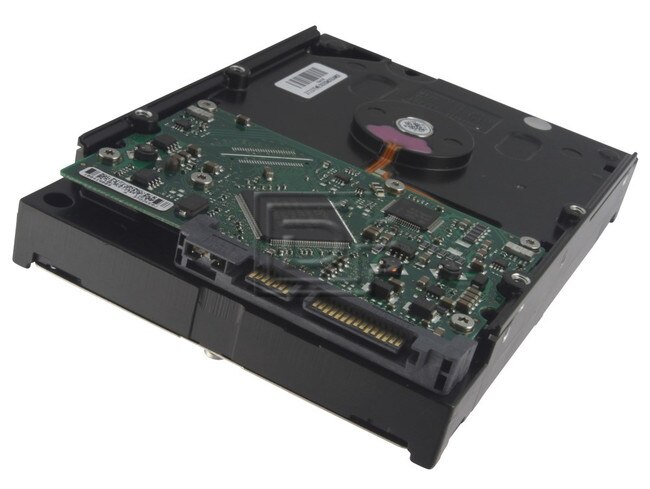

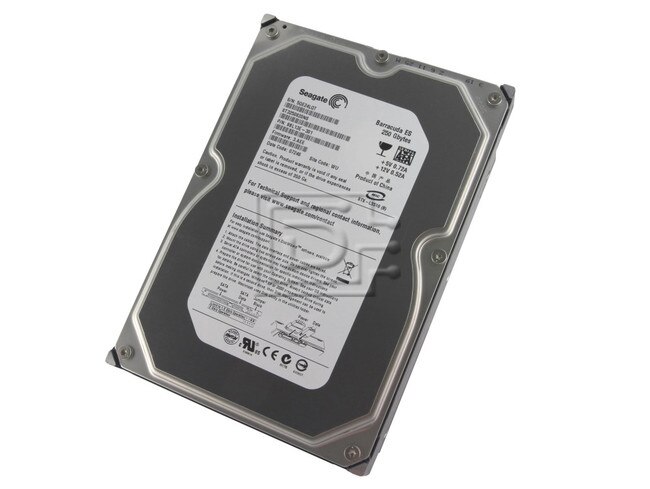

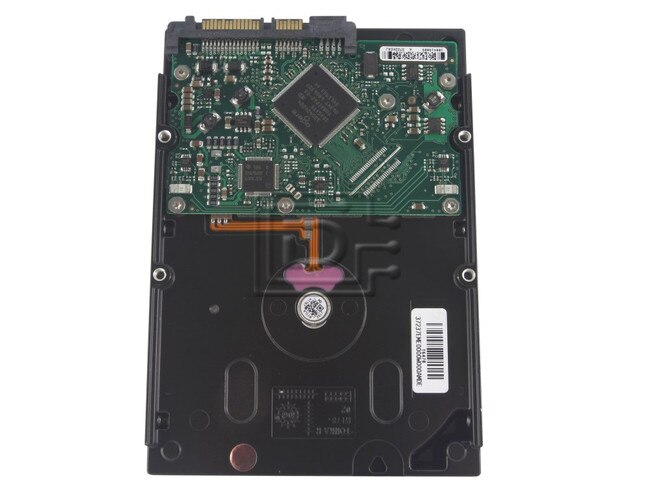

Seagate Barracuda ES 250GB 7.2K SATA Hard Drive ST3250820NS - New Pull
The Seagate® Barracuda® ES enterprise hard drive is the industry’s most reliable, highest capacity 7200-RPM hard drive for 24 x 7, multidrive, business-critical applications. The Barracuda ES hard drive is built with perpendicular recording technology for maximum capacity, reliability and cost-effectiveness.
Compatibility:
This drive is compatible with any of our SATA hot-swap trays.
Specifications | 250 GB |
---|---|
Model Number | ST3250820NS |
Interface | SATA 3.0Gb/s |
Cache | 8 MBytes |
Capacity | 250 GB |
Guaranteed Sectors | 488,397,168 |
PHYSICAL | |
Height (max) | 26.1 mm (1.028 inches) |
Width (max) | 101.6 mm (4.010 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (typical) | 720 grams (1.58 pounds) |
PERFORMANCE | |
Spindle Speed | 7,200 rpm |
Average latency | 4.16 msec |
Random read seek time | 8.5 msec |
Random write seek time | 9.5 msec |
Sustained Throughput (MBps) | 72 |
RELIABILITY | |
MTBF | 1,200,000 hours |
Annual Failure Rate | 0.73 % |
Environmental | |
Max Operating Shock (2-msec) | 63 Gs |
Max Nonoperating Shock (2-msec) | 225 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
POWER | |
Typical (watts) | 13 |
Idle Average (watts) | 9.3 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
