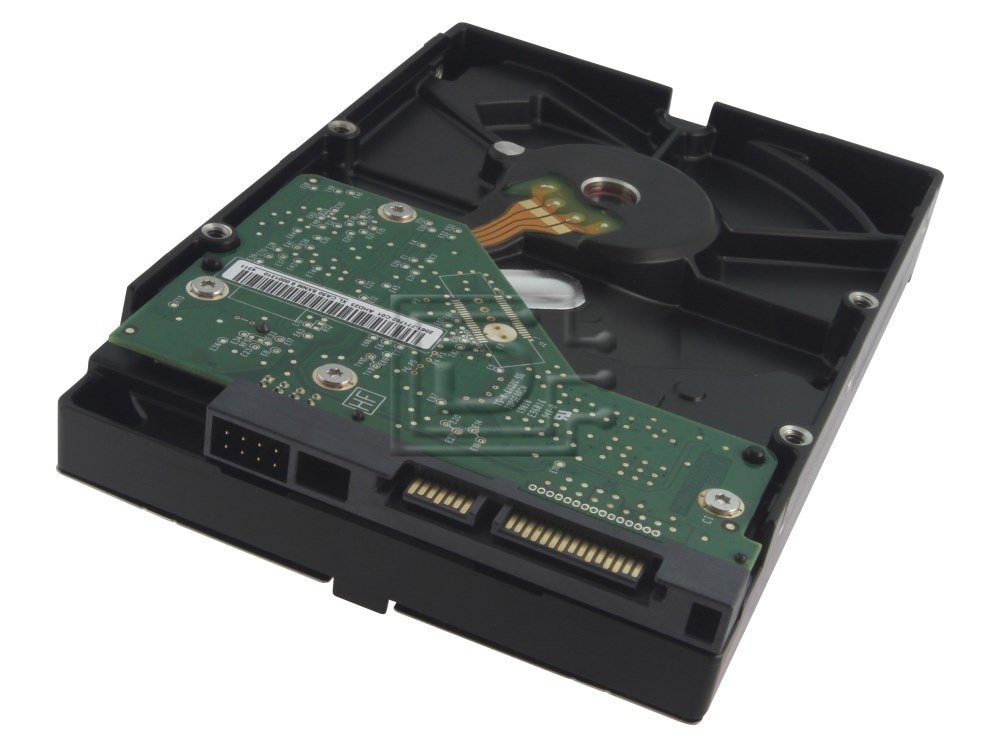

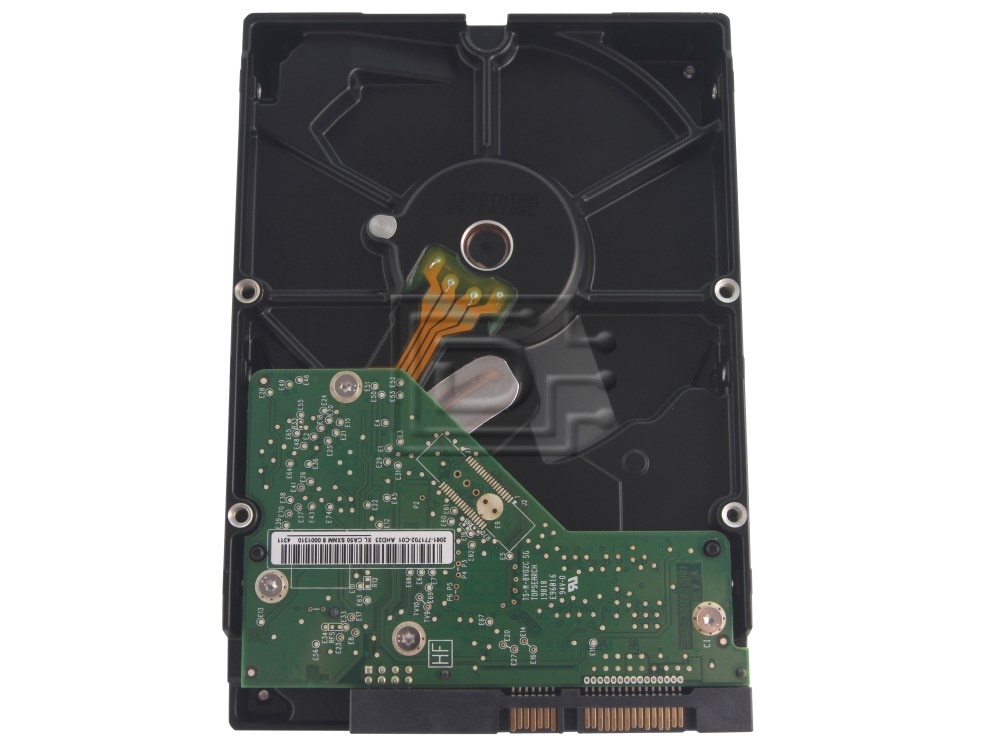

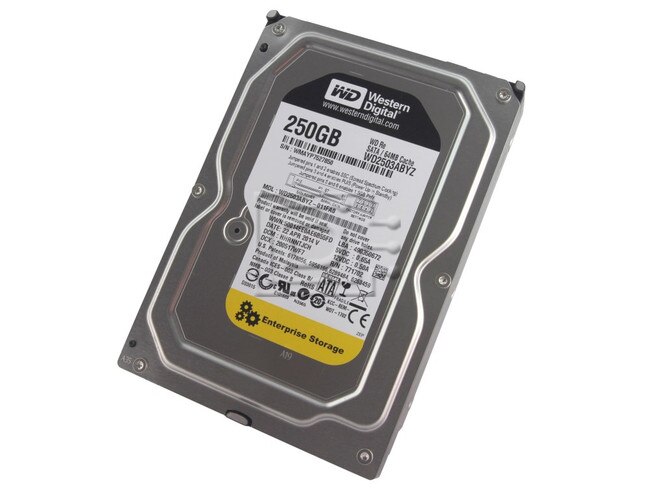

Western Digital Re WD2503ABYZ 250GB Enterprise 3.5" SATA Hard Disk Drives

Western Digital Part #/MPN: WD2503ABYZ

DiscTech Item #: WDC-WD2503ABYZ-FR-1Y


$49.00
$49.00

Enterprise Grade

Capacity: 250GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 128

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 64MB

Western Digital Re WD2503ABYZ 250GB 7.2K 6Gb/s Enterprise 3.5" SATA Hard Drive -Factory Recertified

WD Re Datacenter SATA Hard Drives
Ideal for servers, video surveillance, and other demanding write-intensive applications, WD Re 7200 RPM Enterprise SATA hard drives offer 64 MB cache,4th generation vibration tolerance, and 5-year limited warranty.

Dual processor
With double the processing power,WD Re boasts the highest performance of any drive in the WD family.

RAFF™
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.

IntelliSeek™
Calculates optimum seek speeds to lower power consumption, noise, and vibration.

Multi-axis shock sensor
Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Thermal extended burn-in test
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.

Third generation dynamic fly height
Each read-write head’s fly height is adjusted in real time for optimum reliability.

24x7 reliability
With 1.2 million hours MTBF (tested at100% duty cycle), these drives have the highest available reliability rating on a high-capacity drive.


Compatibility:

This drive is compatible with any SATA hot swap trays and controllers.

Specifications
Model numberWD2503ABYZ
InterfaceSATA 6 Gb/s
Formatted capacity251 GB
User sectors per drive490,350,672
Native command queuingYes
SATA latching connectorYes
Form factor3.5-inch
Performance
Max Data transfer rate6 Gb/s
Cache (MB)64
Rotational speed (RPM7200
Average drive ready time (sec)14
Configuration/Organization
Heads/disks1/1
Bytes per sector (STD)512
Reliability/Data Integrity
Load/unload cycles600,000
Non-recoverable read errors per bits read<1 in 1015
Limited warranty (years)5
Power Management
12VDC (A, max)2.25
Average required wats Read/Write6.5 / 6.4
Average required wats Idle4.4
Average required wats Standby0.8
Average required wats Sleep0.8
Environmental Specifications
Operating Temperature (°C)5 to 55
Non-operating Temperature (°C)-40 to 70/td>
Shock (Gs) Operating (2 ms, read/write)30
Shock (Gs) Operating (2 ms, read)65
Shock (Gs) Non-operating (2 ms)350
Average acoustics (dBA) Idle mode27-
Average acoustics (dBA) Performance seek mode30
Average acoustics (dBA) Quiet seek mode29
Physical Dimensions
Height (in./mm, max)1.028/26.1
Length (in./mm, max)5.787/147
Width (in./mm, ± .01 in.)4/101.6

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year Manufacturer

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
