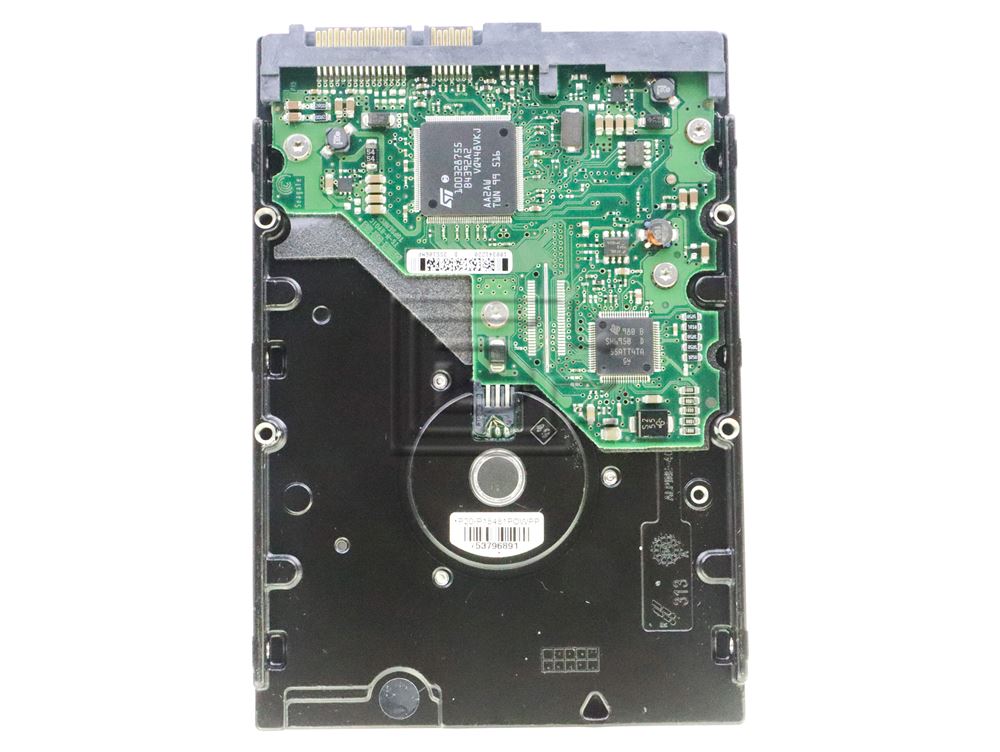

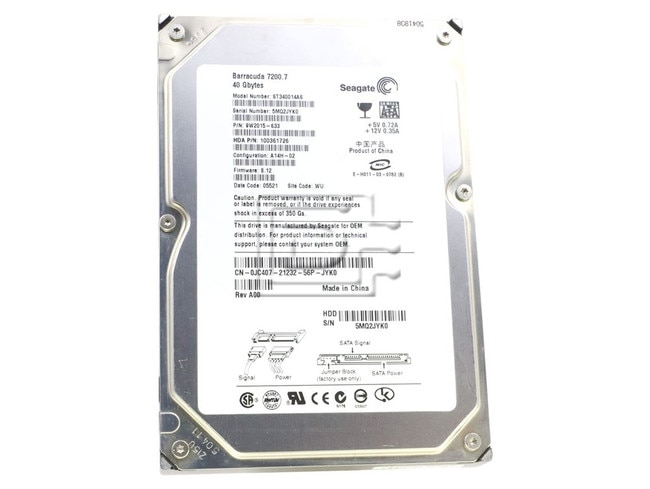

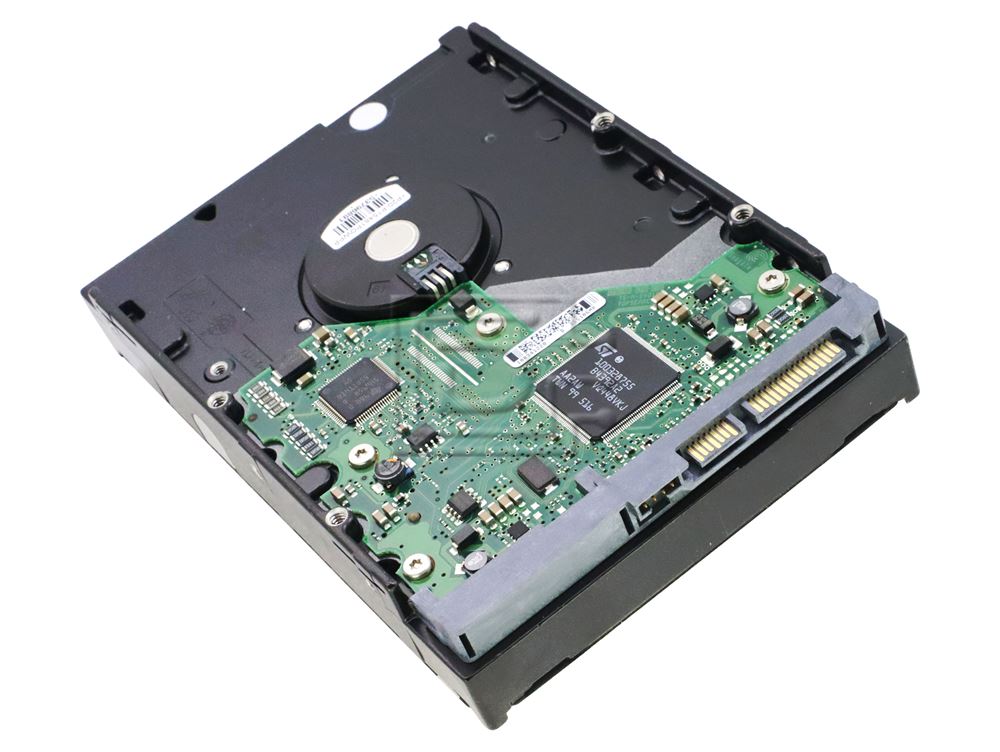

Seagate Barracuda 7200.7 ST340014AS SATA Hard Drive

- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Capacity: | 40GB |
Speed: | 7.2K RPM |
Interface Types: | SATA |
Form Factor: | 3.5" LFF Hard Drive |
Electrical Interface: | SATA 150 - 1.5Gbps |
RAM: | 2MB |
Description
Seagate Barracuda 7200.7 ST340014AS 40GB 7.2K SATA 3.5" Hard Drive - New Pull
• 7,200-RPM spindle speed
• 2-Mbyte buffer
• High instantaneous (burst) data transfer rates (up to 100 Mbytes per second) using Ultra DMA mode 5.
• Giant magnetoresistive (GMR) recording heads and EPRML technology, which provide the drives with
increased areal density.
• State-of-the-art cache and on-the-fly error-correction algorithms.
• Full-track multiple-sector transfer capability without local processor intervention.
• Quiet operation.
• 350 Gs nonoperating shock.
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• The 3D Defense System™, which includes Drive Defense, Data Defense, and Diagnostic Defense, offers
the industry’s most comprehensive protection for disc drives.
• Support for S.M.A.R.T. drive monitoring and reporting.
• Support for Read Multiple and Write Multiple commands.
• Support for autodetection of master/slave drives that use cable select (CSEL).
Specifications
Drive specification | ST340014AS | |
Formatted Gbytes (512 bytes/sector)* | 40 | |
Bytes per sector | 512 | |
Spindle speed (RPM) | 7,200 | |
ATA data-transfer modes supported | PIO modes 0–4Multiword DMA modes 0–2Ultra DMA modes 0–5 | |
Cache buffer | 2 Mbytes | |
Height (max) | 26.11 mm (1.028 inches) | |
Width (max) | 101.85 mm (4.010 inches) | |
Length (max) | 146.99 mm (5.787 inches) | |
Weight (max) grams / lb. | 635 / 1.39 | |
Average latency (msec) | 4.16 | |
Power-on to ready (typical) | 10 sec | |
Standby to ready (typical) | 10 sec | |
Average seek (msec typical) | <8.5 | |
Ambient temperature | 0° to 60°C (op.) –40° to 70°C (nonop.) |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
