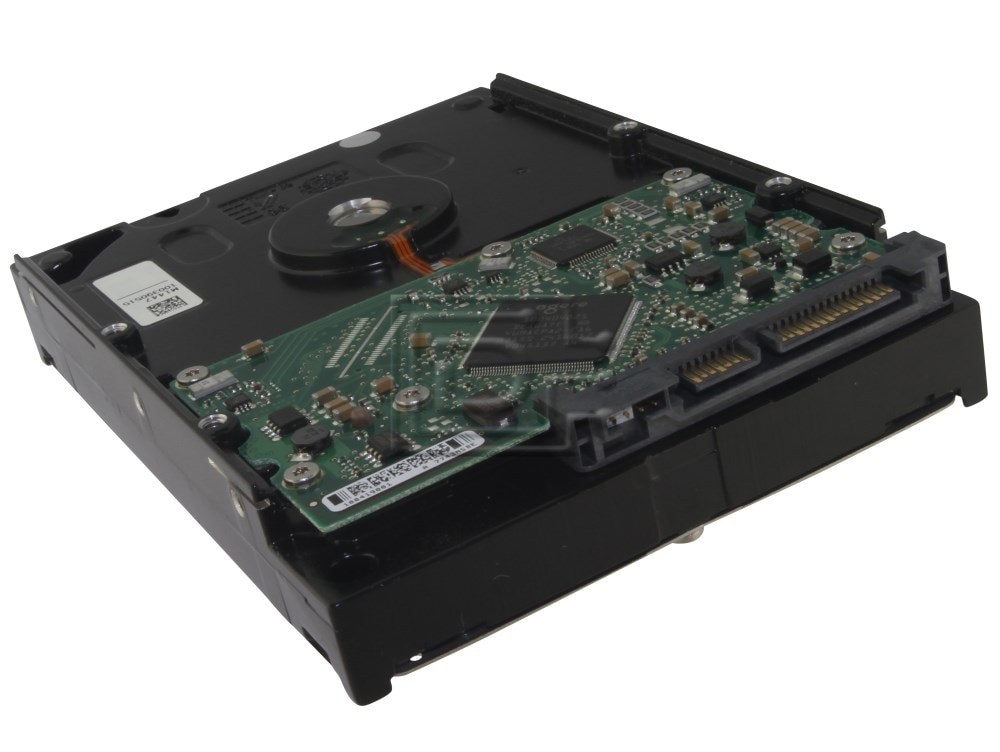

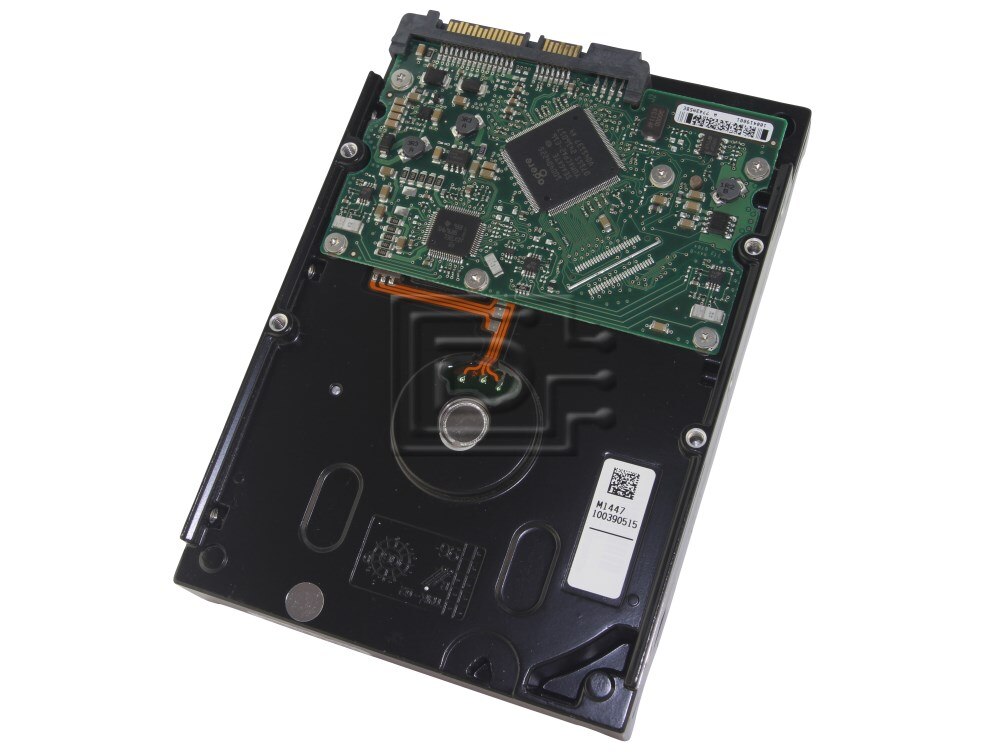

Seagate Barracuda ES 400GB 7.2K SATA Hard Disk Drive ST3400620NS
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 400GB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 16MB |
Description
Seagate Barracuda ES ST3400620NS 400GB 7.2K SATA Hard Drive - Refurbished
The Seagate® Barracuda® ES enterprise hard drive is the industry’s most reliable, highest capacity 7200-RPM hard drive for 24 x 7, multidrive, business-critical applications. The Barracuda ES hard drive is built with perpendicular recording technology for maximum capacity, reliability and cost-effectiveness.
Specifications
| Specifications | 400 GB |
|---|---|
| Model Number | ST3400620NS |
| Interface | SATA 3.0Gb/s |
| Cache | 16 MBytes |
| Capacity | 400 GB |
| Guaranteed Sectors | 781,422,768 |
| Number of pins on the I/O connector | 22 |
| PHYSICAL | |
| Height (max) | 26.1 mm (1.028 inches) |
| Width (max) | 101.6 mm (4.000 inches) |
| Length (max) | 146.99 mm (5.787 inches) |
| Weight (typical) | 635 grams (1.40 pounds) |
| COMPLIANCE | |
| European Union Restriction of Hazardous Substances | Y |
| PERFORMANCE | |
| Spindle Speed | 7200 rpm |
| Native Command Queuing | Y |
| Average latency | 4.16 msec |
| Random read seek time | <8.50 msec |
| Random write seek time | <10.0 msec |
| Maximum interface transfer rate | 300 Mbytes/sec. |
| RELIABILITY | |
| MTBF | 1,200,000 hours |
| Annual Failure Rate | 0.73 % |
| Unrecoverable read errors | 1 in 10^14 |
| POWER | |
| Average idle current | 9.30 watts |
| Average seek power | 12.60 watts |
| Standby power | 0.80 watts |
| Sleep power | 0.807 watts |
| Maximum start current, DC | 2.80 amps |
| ENVIRONMENT | |
| Ambient Temperature | |
| Operating | 5 to 55 degrees C |
| Nonoperating | -40 to 70 degrees C |
| Maximum operating temperature change | 20 degrees C per hour |
| Maximum nonoperating temperature change | 30 degrees C per hour |
| Maximum operating case temperature | 69 degrees C |
| Relative Humidity | |
| Operating | 5 to 90 % |
| Nonoperating | 5 to 95 % |
| Maximum allowable humidity change | 30 % per hour |
| Altitude | |
| Operating altitude (min) | -60.96 meters (-200 feet) |
| Operating altitude (max) | 3,048 meters (10,000 feet) |
| Nonoperating altitude (min) | -60.96 meters (-200 feet) |
| Nonoperating altitude (max) | 12,192 meters (40,000 feet) |
| Shock | |
| Operating Shock (max) | 63 Gs at 2 msec |
| Nonoperating Shock (max) | 300 Gs at 2 msec |
| Vibration | |
| Operating vibration | 0.25 Gs at 5-22 Hz |
| Operating vibration | 0.50 Gs at 22-350 Hz |
| Operating vibration | 0.25 Gs at 350-500 Hz |
| Nonoperating vibration | 0.25 Gs at 5-22 Hz |
| Nonoperating vibration | 5.0 Gs at 22-350 Hz |
| Nonoperating vibration | 1.0 Gs at 350-500 Hz |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 2.5 bels |
| Acoustics (Seek Volume) | 3.2 bels |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
