Seagate Part #/MPN: ST3400620NS
DiscTech Item #: SGT-ST3400620NS-NP-OE
$169.00
- New Pull
- Warranty:1 Year DiscTech
- In Stock:2Need more?
Enterprise Grade
Capacity: 400GB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 8.5 / 10
Electrical Interface: SATA 300 - 3Gbps
On-Board Cache: 16MB

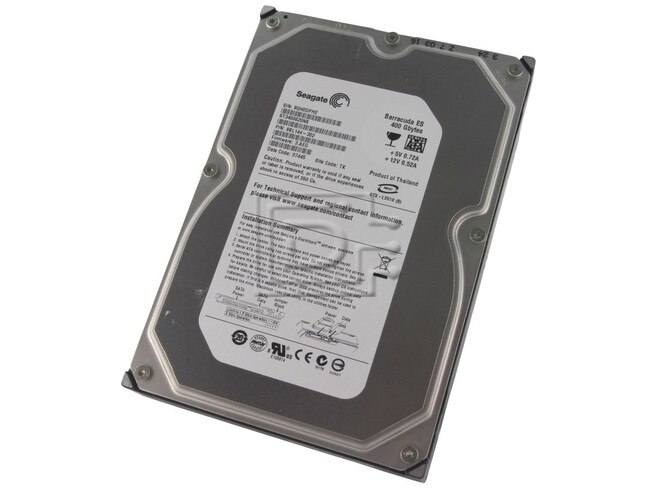

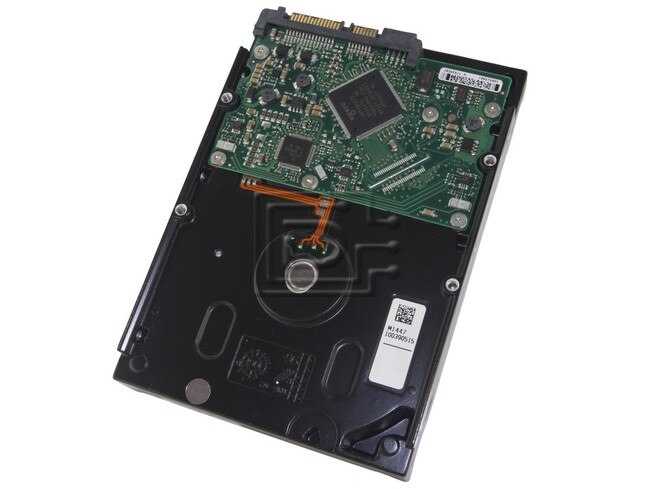

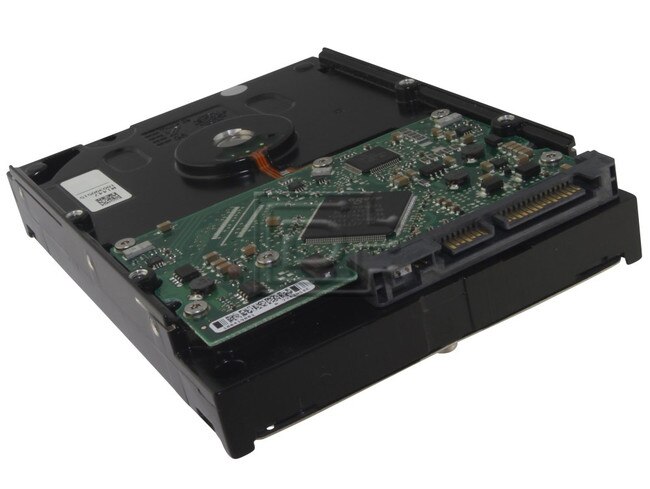

Seagate Barracuda ES 400GB 7.2K SATA Hard Drive ST3400620NS - New Pull
The Seagate® Barracuda® ES enterprise hard drive is the industry’s most reliable, highest capacity 7200-RPM hard drive for 24 x 7, multidrive, business-critical applications. The Barracuda ES hard drive is built with perpendicular recording technology for maximum capacity, reliability and cost-effectiveness.
Specifications | 400 GB |
---|---|
Model Number | ST3400620NS |
Interface | SATA 3.0Gb/s |
Cache | 16 MBytes |
Capacity | 400 GB |
Guaranteed Sectors | 781,422,768 |
Number of pins on the I/O connector | 22 |
PHYSICAL | |
Height (max) | 26.1 mm (1.028 inches) |
Width (max) | 101.6 mm (4.000 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (typical) | 635 grams (1.40 pounds) |
COMPLIANCE | |
European Union Restriction of Hazardous Substances | Y |
PERFORMANCE | |
Spindle Speed | 7200 rpm |
Native Command Queuing | Y |
Average latency | 4.16 msec |
Random read seek time | <8.50 msec |
Random write seek time | <10.0 msec |
Maximum interface transfer rate | 300 Mbytes/sec. |
RELIABILITY | |
MTBF | 1,200,000 hours |
Annual Failure Rate | 0.73 % |
Unrecoverable read errors | 1 in 10^14 |
POWER | |
Average idle current | 9.30 watts |
Average seek power | 12.60 watts |
Standby power | 0.80 watts |
Sleep power | 0.807 watts |
Maximum start current, DC | 2.80 amps |
ENVIRONMENT | |
Ambient Temperature | |
Operating | 5 to 55 degrees C |
Nonoperating | -40 to 70 degrees C |
Maximum operating temperature change | 20 degrees C per hour |
Maximum nonoperating temperature change | 30 degrees C per hour |
Maximum operating case temperature | 69 degrees C |
Relative Humidity | |
Operating | 5 to 90 % |
Nonoperating | 5 to 95 % |
Maximum allowable humidity change | 30 % per hour |
Altitude | |
Operating altitude (min) | -60.96 meters (-200 feet) |
Operating altitude (max) | 3,048 meters (10,000 feet) |
Nonoperating altitude (min) | -60.96 meters (-200 feet) |
Nonoperating altitude (max) | 12,192 meters (40,000 feet) |
Shock | |
Operating Shock (max) | 63 Gs at 2 msec |
Nonoperating Shock (max) | 300 Gs at 2 msec |
Vibration | |
Operating vibration | 0.25 Gs at 5-22 Hz |
Operating vibration | 0.50 Gs at 22-350 Hz |
Operating vibration | 0.25 Gs at 350-500 Hz |
Nonoperating vibration | 0.25 Gs at 5-22 Hz |
Nonoperating vibration | 5.0 Gs at 22-350 Hz |
Nonoperating vibration | 1.0 Gs at 350-500 Hz |
ACOUSTICS | |
Acoustics (Idle Volume) | 2.5 bels |
Acoustics (Seek Volume) | 3.2 bels |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
1 Year DiscTech Warranty
