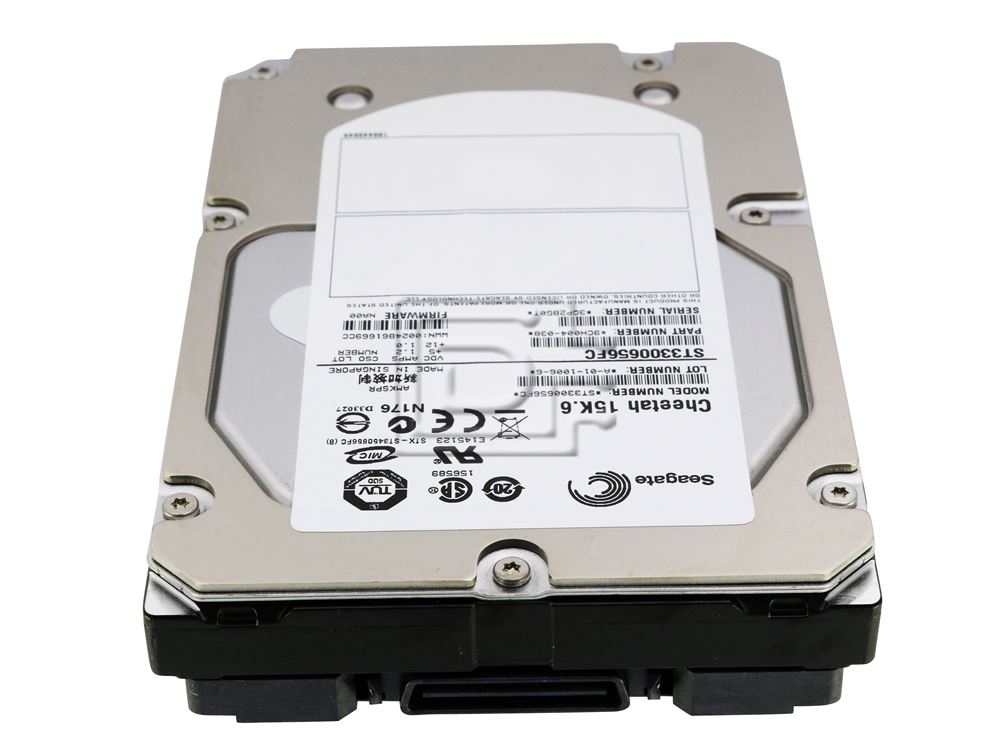

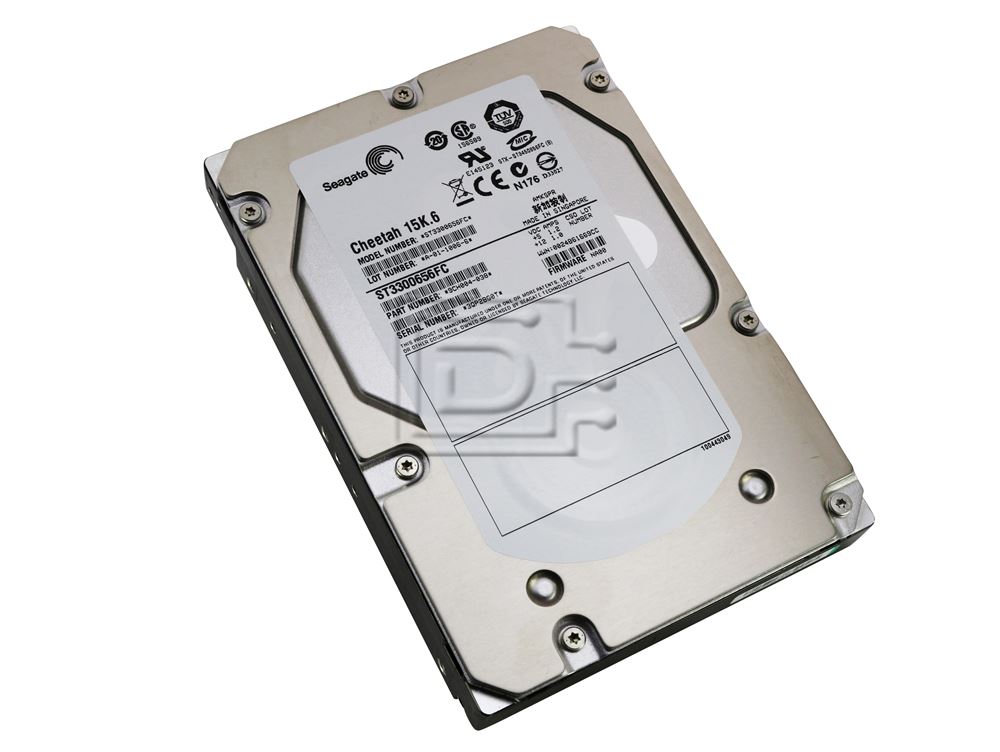

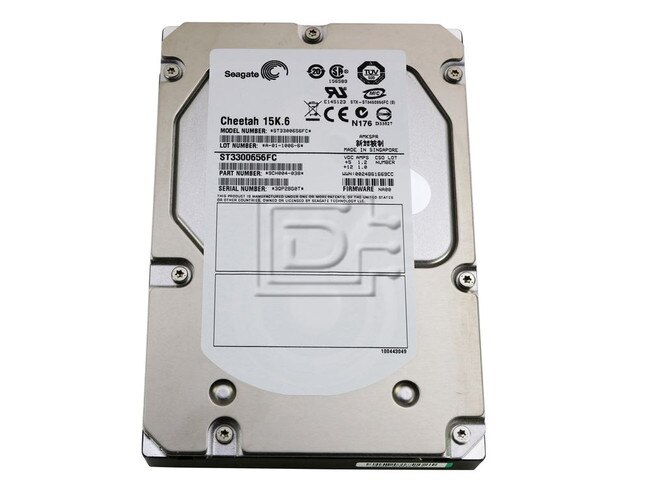

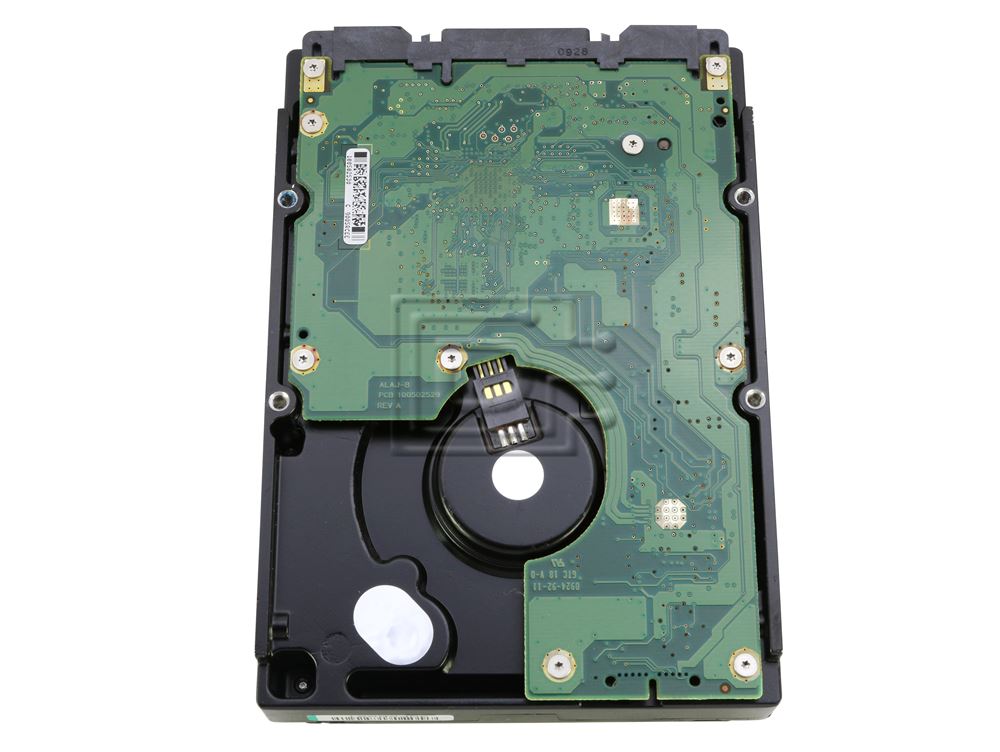

Seagate Cheetah ST3300656FC 300GB 15K Fiber Channel HDD Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 300GB |
| Speed: | 15K RPM |
| Interface Types: | Fibre Channel - Internal - Arbitrated Loop ASA II |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | FC-AL - 4Gbps |
| RAM: | 16MB |
Description
Seagate Cheetah 15K.6 300GB 15K 4Gbps 40pin FC-AL Fibre / Fiber Channel Hard Drive ST3300656FC - Refurbished
Key Advantages- Second-generation perpendicular recording delivers up to 450-GB capacity.
- Unprecedented performance with a 28 percent increase in sustained data rate, up to 164 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim™ technology provides a 61 percent improvement in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10-16
- Available in FC or SAS interfaces
- Second-generation perpendicular recording delivers up to 450-GB storage
- Unprecedented performance with a sustained data rate up to 164 MB/sec
- The industry’s highest 3.5-inch drive reliability at 1.6 million hours MTBF
- Advanced read/write technology drives an error rate of 1x10E-16
- PowerTrim#153; technology provides best-in-class IOPS/watt
- Integrated data integrity provisions protect against system miscompare errors
- Supports T10 end-to-end data protection for new system development
- Available with either a FC or a SAS interface
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel adapters and also with any of our Fibre / Fiber hot-swap trays.
Specifications
| Specifications | |
|---|---|
| Model number | ST3300656FC |
| Model Name | Cheetah 15K.6 |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 4 Gbp /sec |
| Sustained Transfer Rate | 164 MBytes/sec |
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.9 msec typical |
| Average Latency | 2 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.11 mm |
| Width | 101.85 mm |
| Length | 146.99 mm |
| Weight | 0.694 kg |
| Electrical | |
| Startup Current (12VDC +/- 5%) | 4.15 amps |
| Startup Current (5VDC +/- 5%) | 1.78 amps |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
