Seagate Part #/MPN: ST9500620SS
DiscTech Item #: SGT-ST9500620SS-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 115
Average Seek Time: 7.5 / 8.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

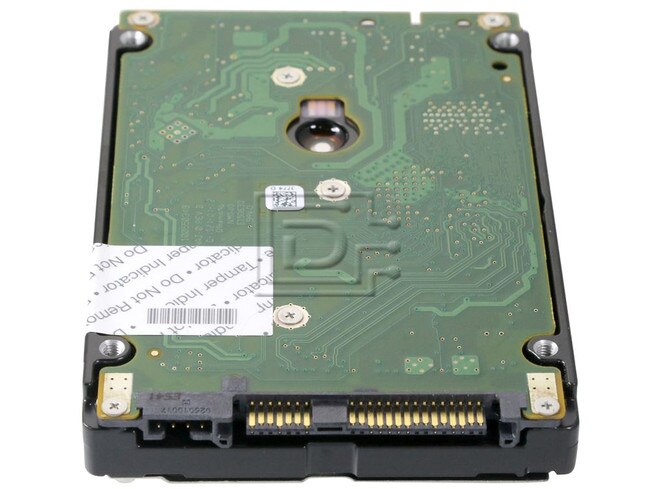

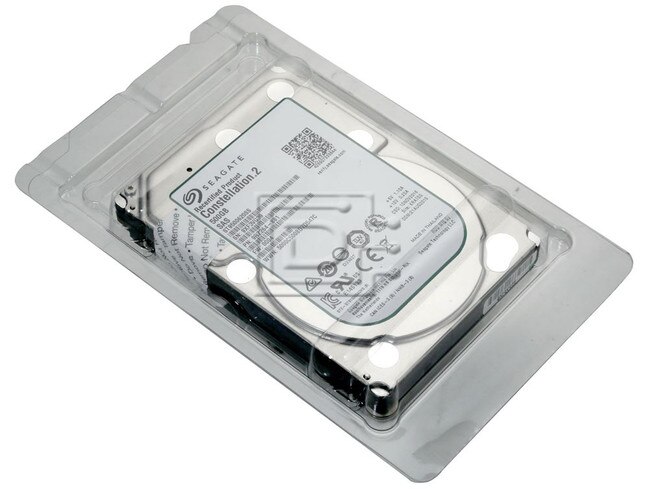

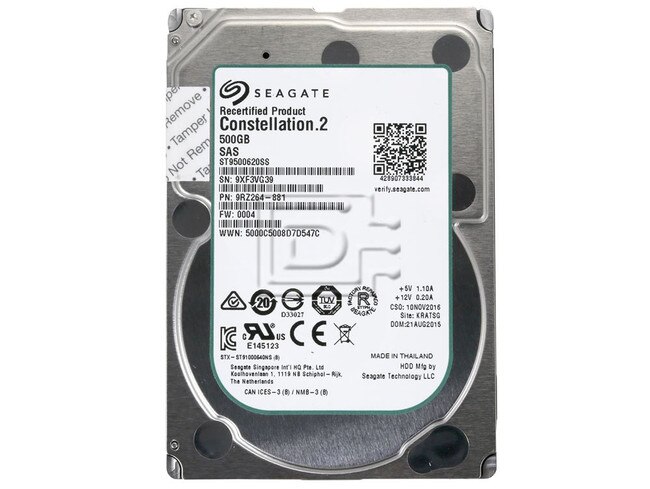

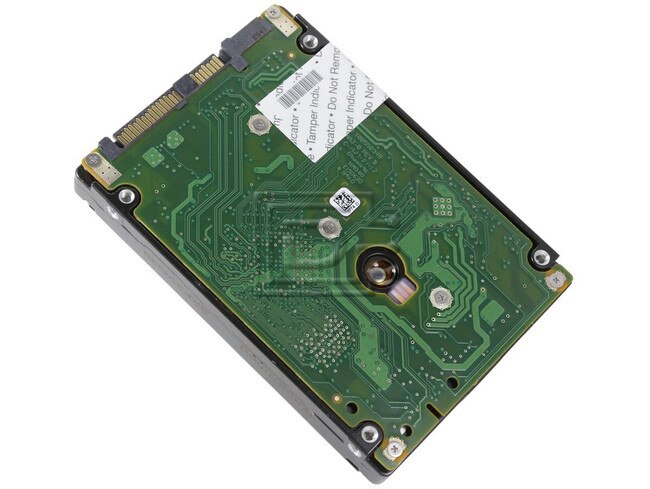

Seagate Constellation.2 ST9500620SS 500GB 7.2K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Factory Recertified
The Constellation 7200 hard drive enables manageable nearline storage solutions in 2.5" chassis — either direct attach or in a tiered storage environment — at the lowest power usage without compromising performance or reliability. Constellation 500GB SATA drives deliver cost-effective, eco-friendly nearline storage.
Key Features and Benefits- Lowest operating power & enhanced power options with PowerChoice™ for even greater power savings during slow or idle periods
- First 2.5", 15mm business critical drive on the market designed for enterprise reliability, vibration performance and high data integrity. Fits in more server & storage slots!
- Fastest Tier 2/Nearline HDD on the market (SAS @ 6Gb/s speed). At a system level (with more drives) the performance will be >2x as compared to 3.5" HDD.
- The highest capacity 2.5" enterprise drive with 500GB with both SAS and SATA interfaces. (160GB SATA also available for boot/entry server applications)
- 6Gbps SAS 2.0 allows for easier integration, enhanced features and outstanding performance
- Government-grade self-encrypting drive (SED) on SAS models
- Best performing nearline drive with Best-in-class Rotational Vibration
Manufacturer's p/n: 9FY246 9RZ264
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Drive specification | ST9500620SS |
Formatted Gbytes (512 bytes/sector) | 500 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 16 |
Interface Type | 6.0Gbps SAS |
Average latency | 4.16 ms |
Seek time (read / write) ms | 7.5 / 8.5 |
Cache | 64 MB |
Dimensions (HxLxW) mm | 15 / 100.45 / 70 |
Weight | 0.2 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 400G, 2ms |
Temperature - Operating | 5C -55C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 3.5w / 2.6w |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 9FY246 9RZ264
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
