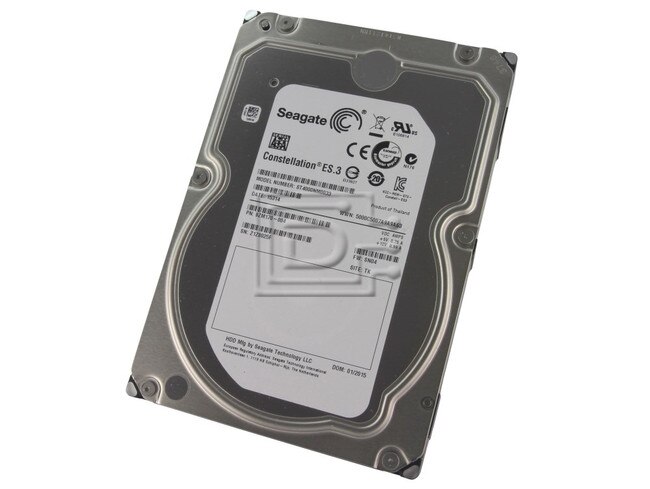

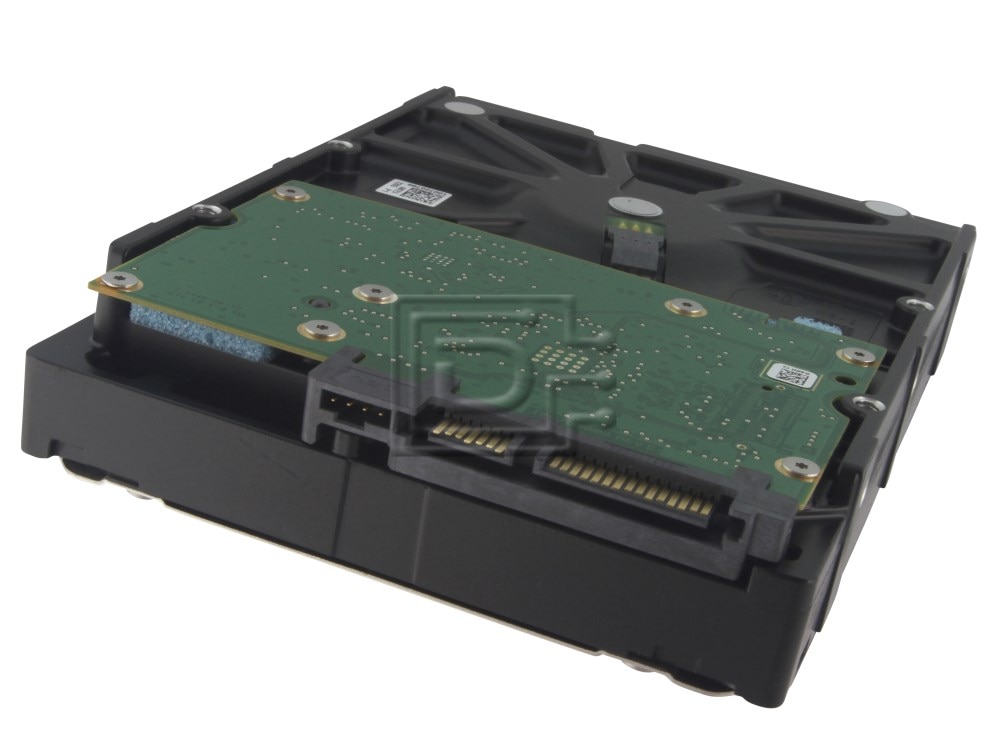

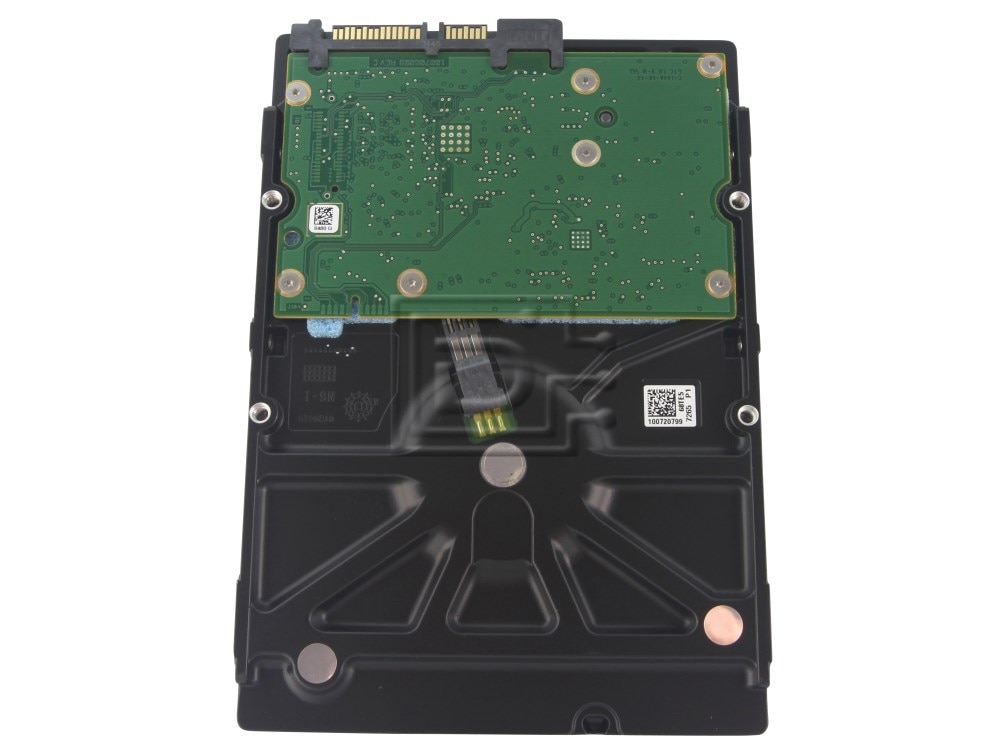

Seagate Constellation ES.3 ST4000NM0033 4TB SATA Hard Disk Drive

Seagate Part #/MPN: ST4000NM0033

DiscTech Item #: SGT-ST4000NM0033-BN-3Y


$209.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$209.00

Enterprise Grade

Capacity: 4TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 175

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Seagate Constellation ES.3 ST4000NM0033 4TB / 4000GB 7.2K 3.5" SATA Hard Drive - Brand New

Alt MPN: 9ZM170-004

The Constellation ES.3 SATA drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average. Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.


Compatibility:

This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.

Product Specifications
InterfaceSATA 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Cache128 MB
Transfer Rate, Max Ext (MB/s)600 MB/s
Sustained Data Rate OD175MB/s
Average Latency (ms)4.16
Reliability/Data Integrity
Nonrecoverable Read Errors per Bits Read1 in 1015
Annualized Failure Rate (AFR)0.63%
Physical Dimensions
English
Height1.028 Inches
Length5.787 Inches
Width4.00 Inches
Weight1.543 Lbs
Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.700 kg
Environmental Specifications
Shock
Operating Shock (Read)70/40 (2 ms)
Non-operating Shock300G (2 ms)
Acoustics (belssound power)
Idle Mode2.8
Seek Mode 03.0
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 60° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation:
Read/Write11.27 Watts
Idle6.73 Watts


Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9ZM170-004

Weight: 1.8 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
