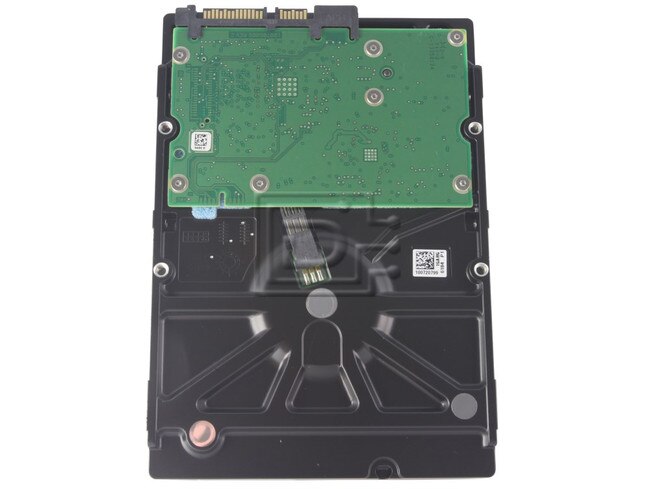

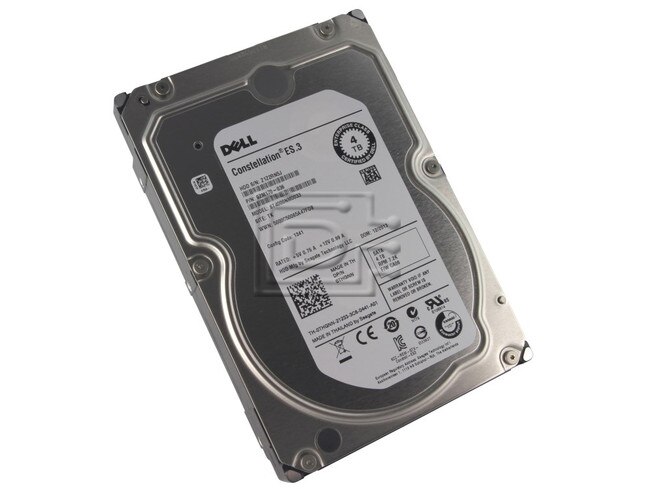

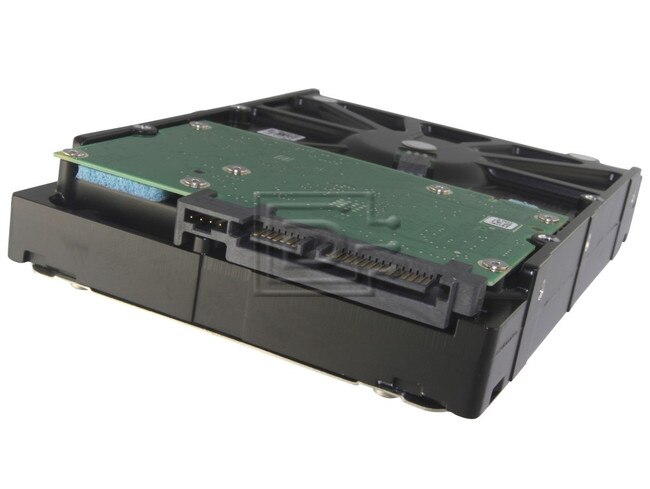

Dell THGNN / Seagate Constellation ES.3 ST4000NM0033 4TB Enterprise SATA Hard Disk Drive

Seagate Part #/MPN: ST4000NM0033

DiscTech Item #: SGT-ST4000NM0033-RF-OE-DEL


$138.00
$138.00

Enterprise Grade

Capacity: 4TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 175

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 128MB

Dell THGNN / Seagate Constellation ES.3 ST4000NM0033 4TB SATA - Refurbished OEM

Alt MPN: 9ZM170-036
Dell Part Number: 0THGNN, THGNN

The Constellation ES.3 SATA drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SATA interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average. Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SATA-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.


Compatibility:

This hard drive is compatible with: Windows 7/Vista/XP/2000, Windows Server, Linux, and Mac OS.

Product Specifications
InterfaceSATA 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Cache128 MB
Transfer Rate, Max Ext (MB/s)600 MB/s
Sustained Data Rate OD175MB/s
Average Latency (ms)4.16
Reliability/Data Integrity
Nonrecoverable Read Errors per Bits Read1 in 1015
Annualized Failure Rate (AFR)0.63%
Physical Dimensions
English
Height1.028 Inches
Length5.787 Inches
Width4.00 Inches
Weight1.543 Lbs
Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.700 kg
Environmental Specifications
Shock
Operating Shock (Read)70/40 (2 ms)
Non-operating Shock300G (2 ms)
Acoustics (belssound power)
Idle Mode2.8
Seek Mode 03.0
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 60° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation:
Read/Write11.27 Watts
Idle6.73 Watts


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0THGNN THGNN 9ZM170-036 9PR63 09PR63 9ZM170-136

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
