Seagate Constellation ES ST1000NM0001 SAS Dell Enterprise Plus Hard Disk Drive

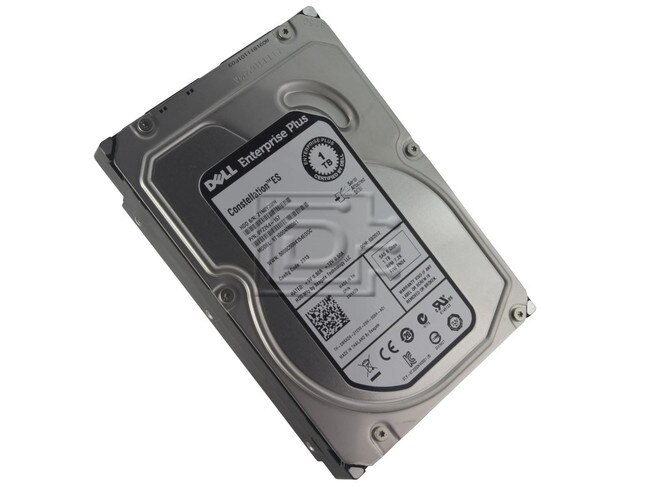

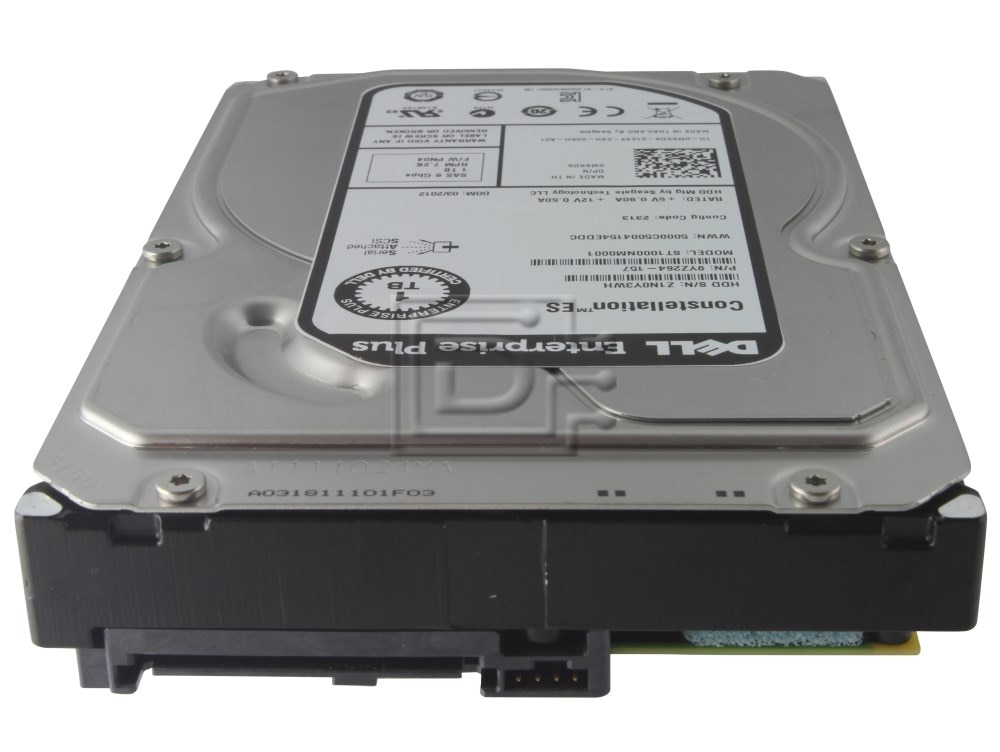

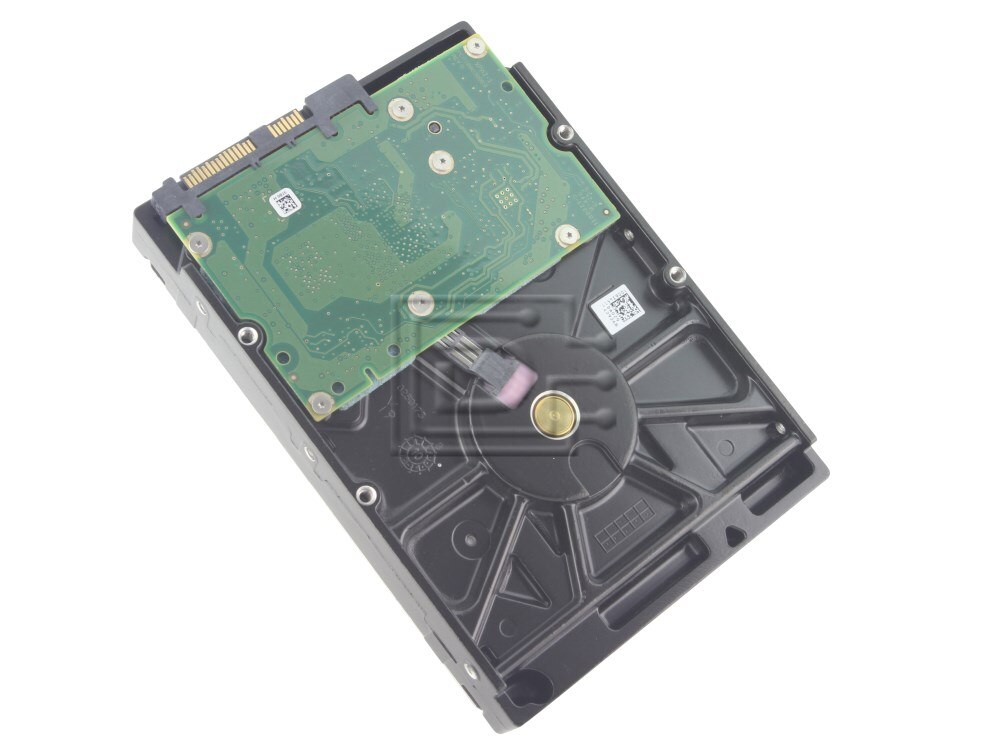

Seagate ST1000NM0001 9YZ264-157 M5XD9 0M5XD9 SAS Hard Drive Image 1 imageSeagate ST1000NM0001 9YZ264-157 M5XD9 0M5XD9 SAS Hard Drive Image 2 imageSeagate ST1000NM0001 9YZ264-157 M5XD9 0M5XD9 SAS Hard Drive Image 3 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • In Stock:3
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$135.00

Capacity:1TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-2 6Gbps
RAM:64MB

Description

Seagate Constellation ES ST1000NM0001 1TB / 1000GB 7.2K 6.0Gbps Serial SCSI / SAS Dell Enterprise Plus Hard Drive - Refurbished OEM

Dell Enterprise Plus PNs: M5XD9, 0M5XD9

Overview

Seagate® Constellation® ES fifth-generation drives lead the industry with a range of high capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimized, 24x7 multi-drive server and storage environments.

Features and Benefits

  • Fifth-generation, enterprise, nearline drive designed for 24×7 operation
  • Up to 2TB capacity for data-hungry enterprise business applications
  • Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
  • Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
  • Proven reliability with multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor technology and ramp load technology
  • Provides business sustainability with Seagate Unified Storage architecture
  • 6Gb/s SAS performance with error detection and correction

Best Fit Applications

  • High-capacity data center storage
  • Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
  • Enterprise backup and restore–D2D, virtual tape
  • Centralized surveillance
  • Cloud storage

Compatibility

This drive is compatible with any system that can accept 3.5" LFF SAS Dell Enterprise Plus Drives.

Specifications

Drive specification

ST1000NM0001

Formatted Gbytes (512 bytes/sector)

1000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

64MB

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

8.5 / 9.5

Average Latency

4.16ms

Dimensions (HxLxW) mm

26.1 / 147 / 101.85

Weight

0.640 kg

Operating Shock (Read)

70G, 2ms

Non-operating Shock

300G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

MTBF

1,200,000 hrs

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9YZ264-157 M5XD9 0M5XD9

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Condition

Refurbished

Warranty

1 Year DiscTech Warranty
