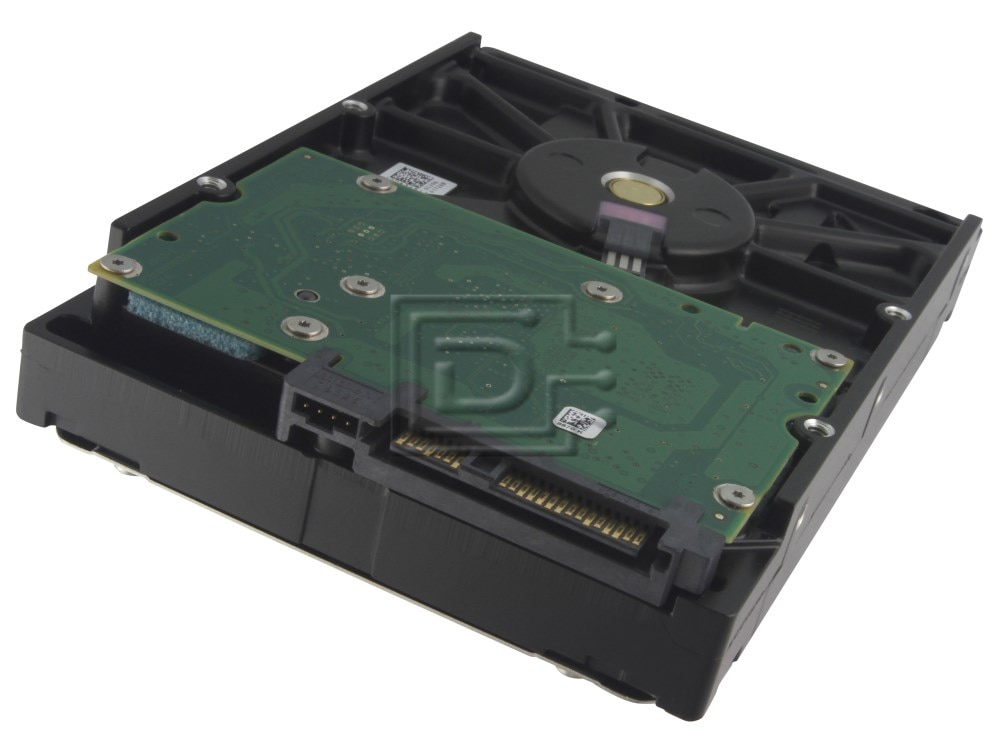

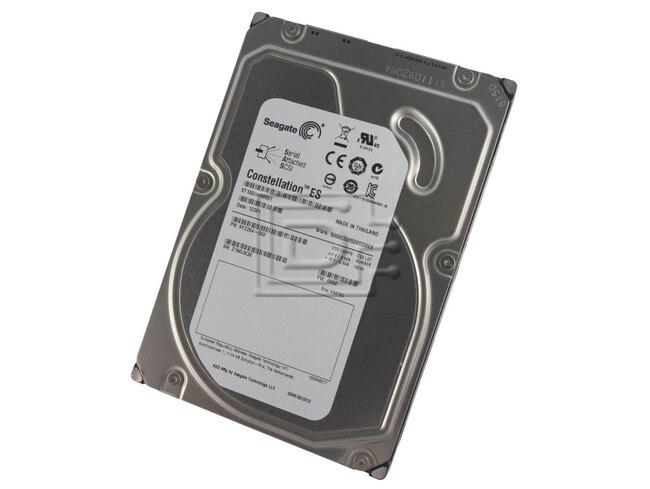

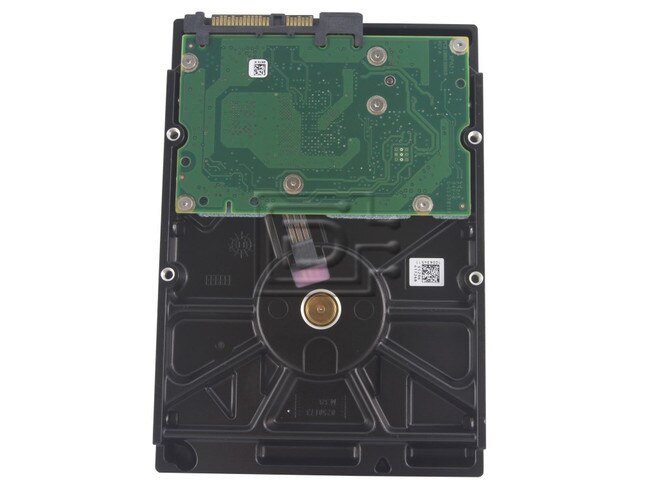

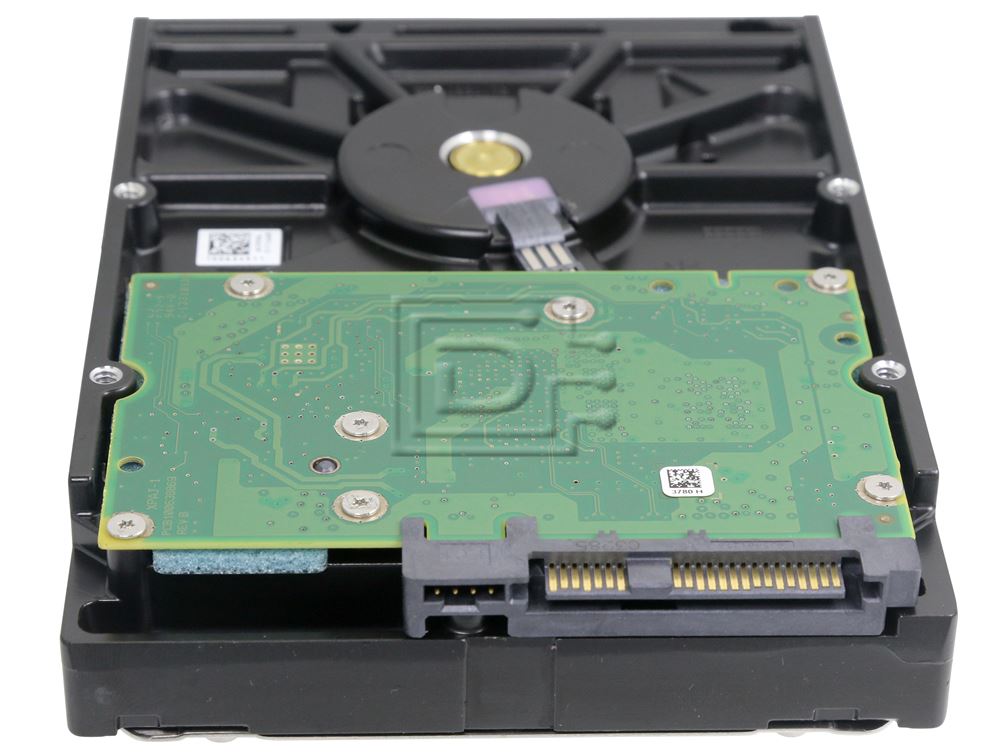

Seagate Constellation ES ST1000NM0001 1TB / 1000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive

- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 3 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
Capacity: | 1TB |
Speed: | 7.2K RPM |
Interface Types: | SAS |
Form Factor: | 3.5" LFF Hard Drive |
Electrical Interface: | SAS-2 6Gbps |
RAM: | 64MB |
Description
Seagate Constellation ES ST1000NM0001 1TB / 1000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New
Alt. PN: 9YZ264, 9YZ264-002
Overview
Seagate® Constellation® ES fifth-generation drives lead the industry with a range of high capacity enterprise drive options. Available in both 6Gb/s SAS and SATA interfaces, these drives feature enterprise-class reliability with the power and performance efficiencies that make them ideal for capacity-optimized, 24x7 multi-drive server and storage environments.
Features and Benefits
- Fifth-generation, enterprise, nearline drive designed for 24×7 operation
- Up to 2TB capacity for data-hungry enterprise business applications
- Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
- Proven reliability with multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor technology and ramp load technology
- Provides business sustainability with Seagate Unified Storage architecture
- 6Gb/s SAS performance with error detection and correction
Best Fit Applications
- High-capacity data center storage
- Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
- Enterprise backup and restore–D2D, virtual tape
- Centralized surveillance
- Cloud storage
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Specifications
Drive specification | ST1000NM0001 |
Formatted Gbytes (512 bytes/sector) | 1000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64MB |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Average Latency | 4.16ms |
Dimensions (HxLxW) mm | 26.1 / 147 / 101.85 |
Weight | 0.640 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 300G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
MTBF | 1,200,000 hrs |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9YZ264 9YZ264-002
Weight: 1.8 lb
Warranty: 3 Year Manufacturer
Condition
Brand New
Warranty
3 Year Manufacturer Warranty
