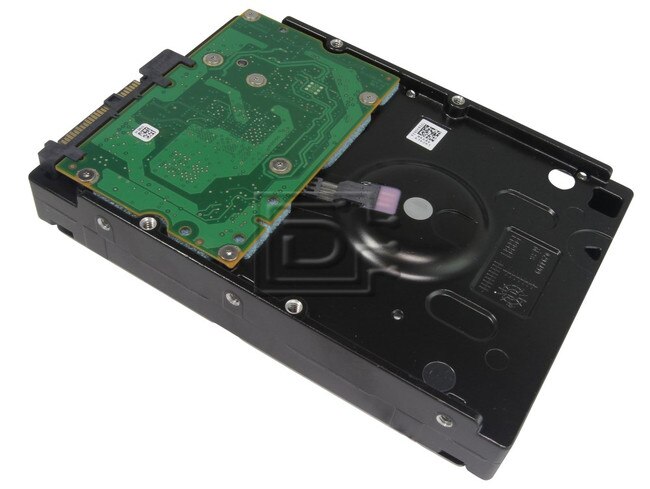

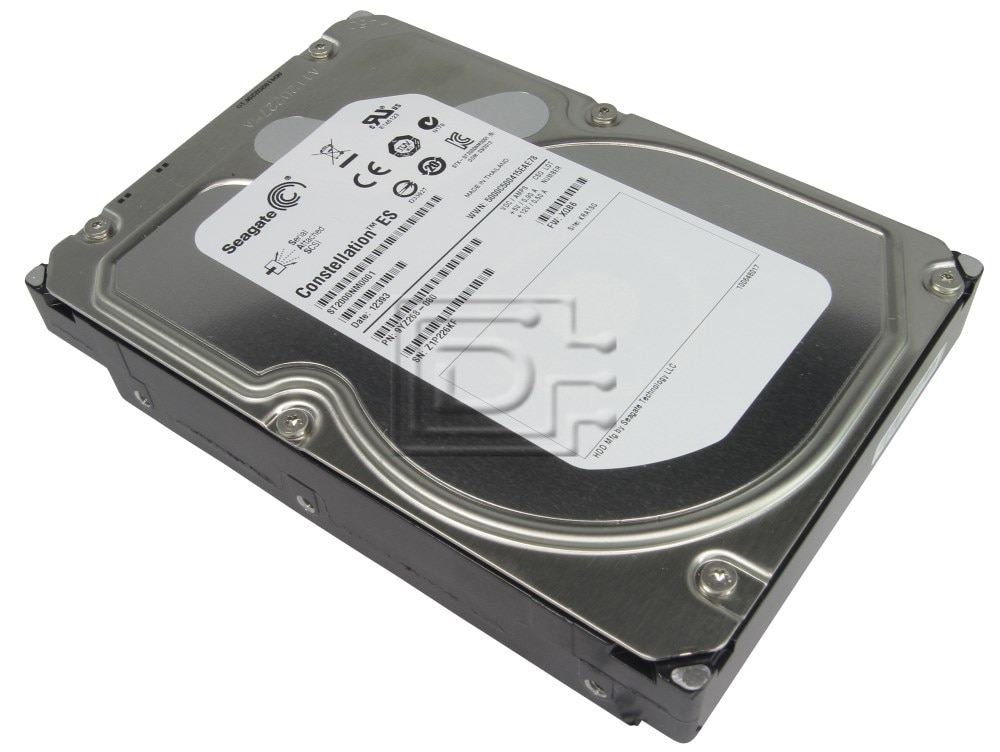

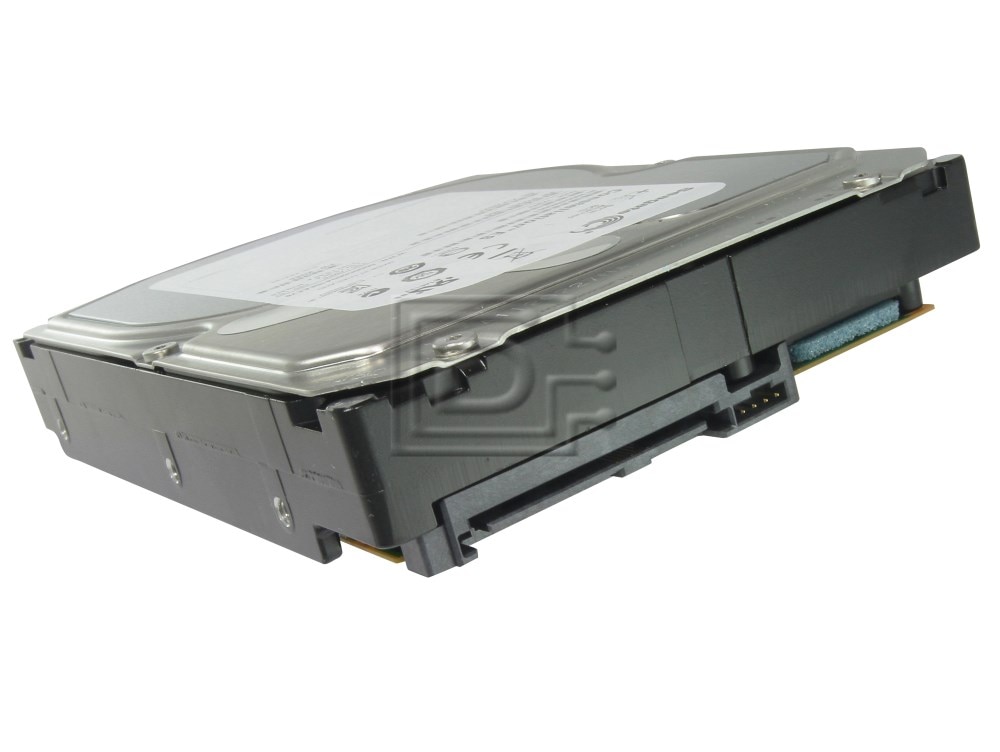

Seagate Constellation ES ST2000NM0001 SAS Hard Drive
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description
Compellent / Xyratex / Seagate Constellation ES ST2000NM0001 2TB / 9yz268-080 6.0Gbps Serial SCSI / SAS Hard Drive - New Pull OEM
Overview
Constellation ES drives offer the world’s highest capacity at 2TB while providing enterprise robustness for Tier 2/nearline environments. They are differentiated from 3.5-inch desktop drives by offering enterprise-class reliability and superior data integrity with a UER of 1E10-15. Enterprise-class rotational vibration tolerance provides robust protection from chassis and fan vibrations (RV 12.5 rad/sec 20 to 1500Hz). The drives are offered with either a 3-Gb/s SATA interface or a 6-Gb/s SAS 2.0 interface for superior data protection at industry-leading speeds, along with optional power saving modes with PowerChoice™.
Features and Benefits
- Fourth-generation, enterprise, nearline drive designed for 24×7 operation
- Up to 2TB capacity for data-hungry enterprise business applications
- Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
- Proven reliability with multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor technology and ramp load technology
- Provides business sustainability with Seagate Unified Storage architecture
- 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity
Best Fit Applications
- High-capacity data center storage
- Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
- Enterprise backup and restore–D2D, virtual tape
- Centralized surveillance
- Cloud storage
Xyratex PN: 9yz268-080
Compatibility
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
for use with Compellent / Xyratex
Specifications
Drive specification | ST2000NM0001 |
Formatted Gbytes (512 bytes/sector) | 2000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.71 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 70G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 12.2w / 8.0w |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9yz268-080
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
