Seagate Constellation ES ST3500414SS Serial SCSI / SAS Hard Disk Drives
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 500GB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 16MB |
Description

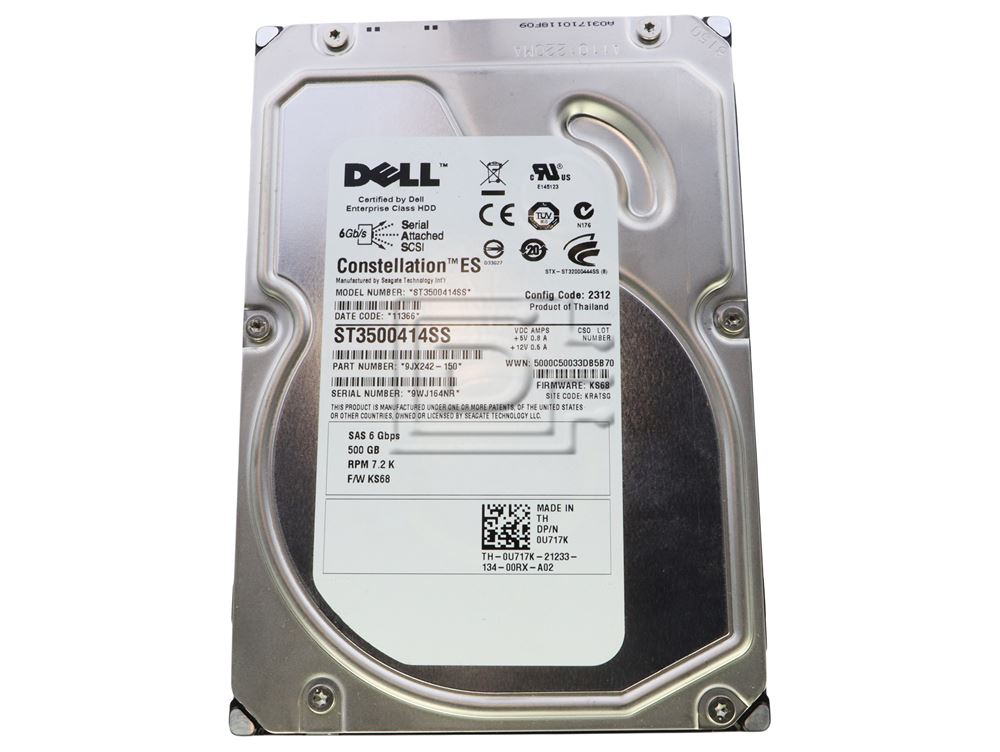

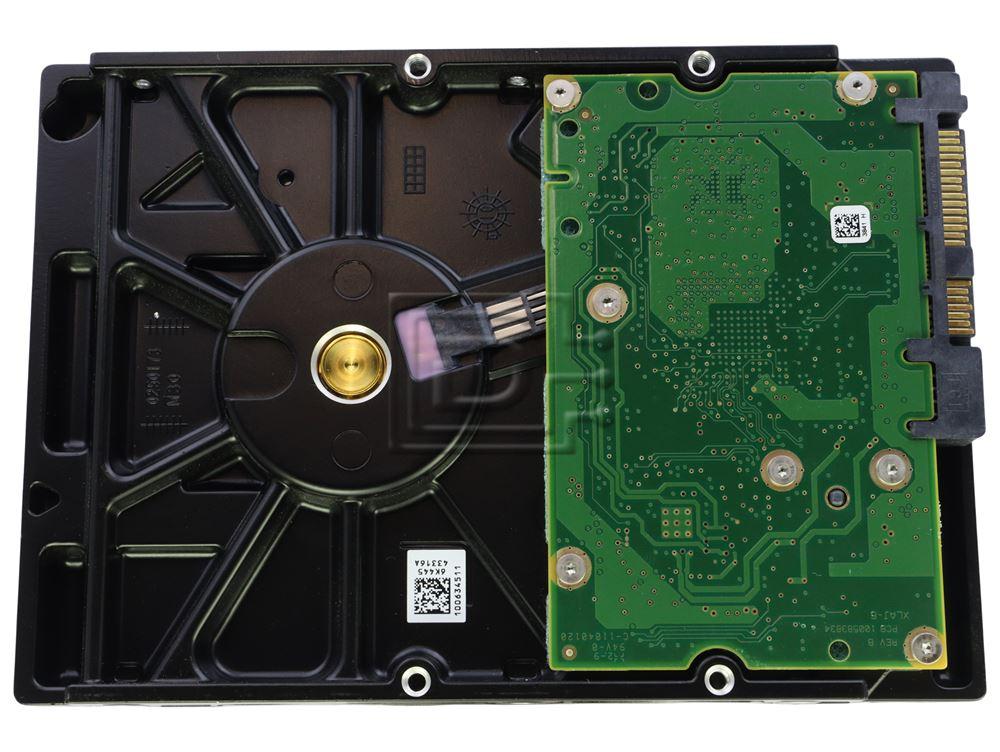

Seagate Constellation ES ST3500414SS 500GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Refurbished OEM
• Fourth-generation, enterprise, nearline drive designed for 24×7 operation
• Up to 2-TB capacity for data-hungry enterprise business applications
• Best-in-class enhanced rotational vibration tolerance ensures unrivalled
performance in high-density applications requiring continuous data access
• Enhanced efficiencies with PowerChoice™ host-selectable power options,
for unprecedented savings (up to 92 per cent) during slow or idling periods
• Proven reliability with multi-drive firmware maximised for enterprise
system availability
• Robust performance with dual processor technology and ramp load
technology (35 per cent average sustained throughput increase over
previous generation)
• Provides business sustainability with Seagate® Unified Storage architecture
- 6-Gb/s SAS performance with error detection and correction (IOEDC/
IOECC) capabilities for the ultimate in data integrity
- US Government-grade Self-Encrypting Drive (SED) option for TCGcompliant/
AES-128 security cuts IT drive retirement costs, while
protecting data securely¹
DPN: U717K / 0U717K
Compatibility
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Specifications
Drive specification | ST3500414SS |
Formatted Gbytes (512 bytes/sector) | 500 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 16 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.61 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 400G, 2ms |
Temperature - Operating | 5C -55C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 3.5w / 2.6w |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: U717K 0U717K
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
