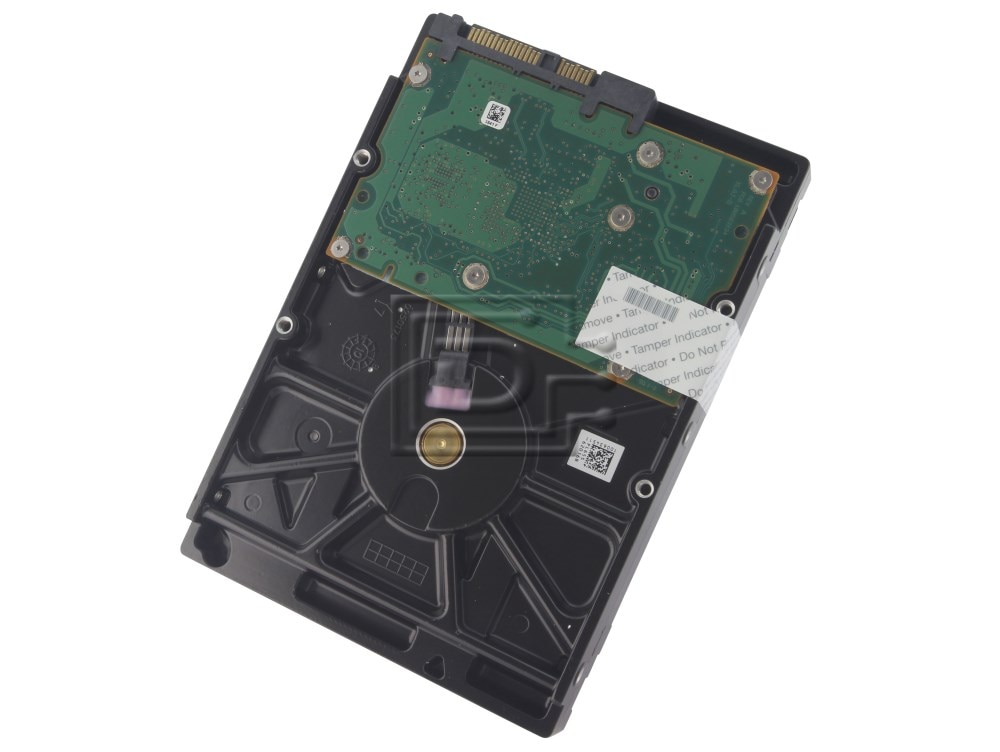

Seagate Constellation ES ST3500414SS 500GB Serial SCSI / SAS Hard Disk Drives
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 500GB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 16MB |
Description
Seagate Constellation ES ST3500414SS 500GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - New Pull OEM
• Fourth-generation, enterprise, nearline drive designed for 24×7 operation
• Up to 2-TB capacity for data-hungry enterprise business applications
• Best-in-class enhanced rotational vibration tolerance ensures unrivalled
performance in high-density applications requiring continuous data access
• Enhanced efficiencies with PowerChoice™ host-selectable power options,
for unprecedented savings (up to 92 per cent) during slow or idling periods
• Proven reliability with multi-drive firmware maximised for enterprise
system availability
• Robust performance with dual processor technology and ramp load
technology (35 per cent average sustained throughput increase over
previous generation)
• Provides business sustainability with Seagate® Unified Storage architecture
- 6-Gb/s SAS performance with error detection and correction (IOEDC/
IOECC) capabilities for the ultimate in data integrity
- US Government-grade Self-Encrypting Drive (SED) option for TCGcompliant/
AES-128 security cuts IT drive retirement costs, while
protecting data securely¹
Compatibility
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Specifications
Drive specification | ST3500414SS |
Formatted Gbytes (512 bytes/sector) | 500 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 16 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.61 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 400G, 2ms |
Temperature - Operating | 5C -55C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 3.5w / 2.6w |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
