Seagate Part #/MPN: ST20000NM007D
DiscTech Item #: SGT-ST20000NM007D-FR-6M
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:6 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 20TB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6Gbps
On-Board Cache: 256MB

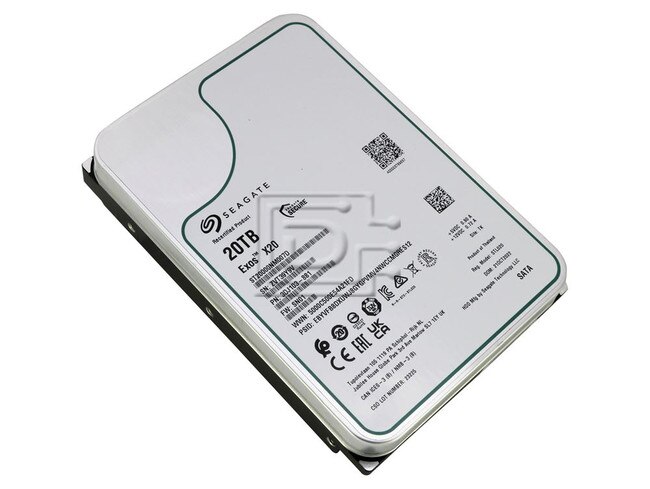

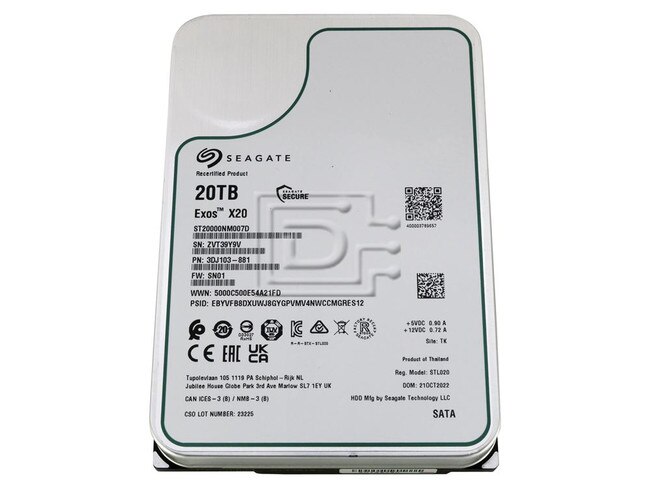

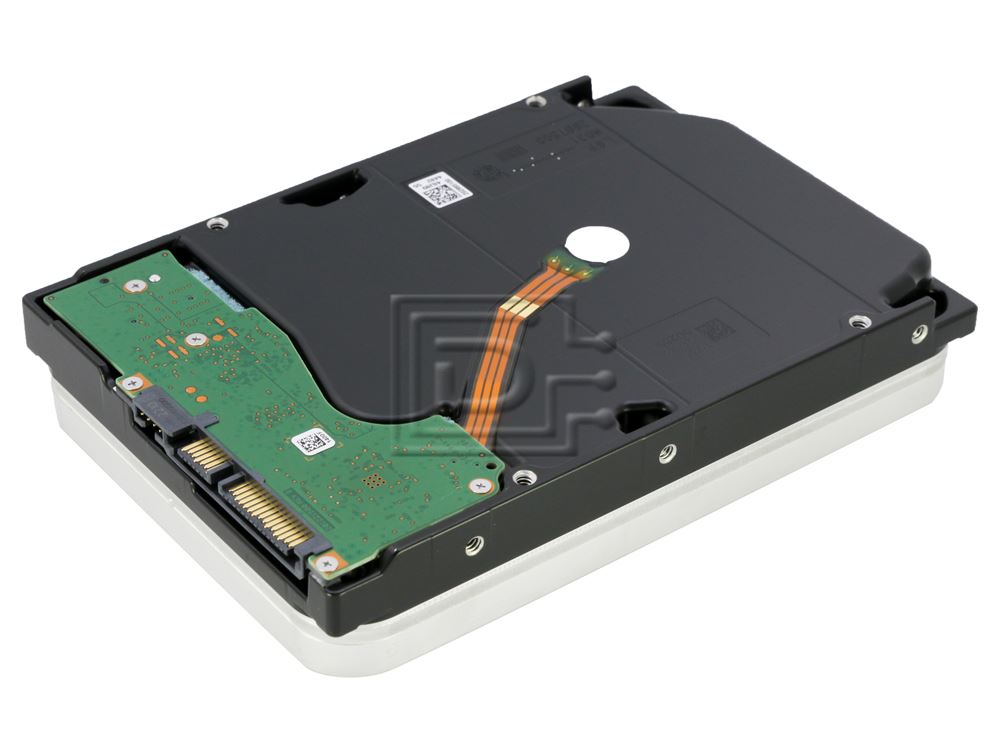

EXOS X20
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X20 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.
Compatibility: Compatible with systems that support 20TB 3.5" SATA HDDS
| Exos Enterprise X20 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST20000NM007D |
| Interface | 6Gb/s SATA III |
| Capacity | 20TB / 20000GB |
| Features | |
| Helium Sealed-Drive Design | Yes |
| Conventional Magnetic Recording (CMR) | Yes |
| Protection Information (T10 DIF) | --- |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice Idle Power Technology | Yes |
| PowerBalance Power/Performance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) |
|
| 4Kn Sector Size (Bytes per Sector) |
|
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 168/550 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Power Consumption | |
| Idle A (W) Average |
|
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Evrironmental/Temperature | |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 40 |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Physical | |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.010in/101.85mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 670g/1.477lb |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 3DJ103-001
Weight: 1.8 lb
Warranty: 6 Month DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
6 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
