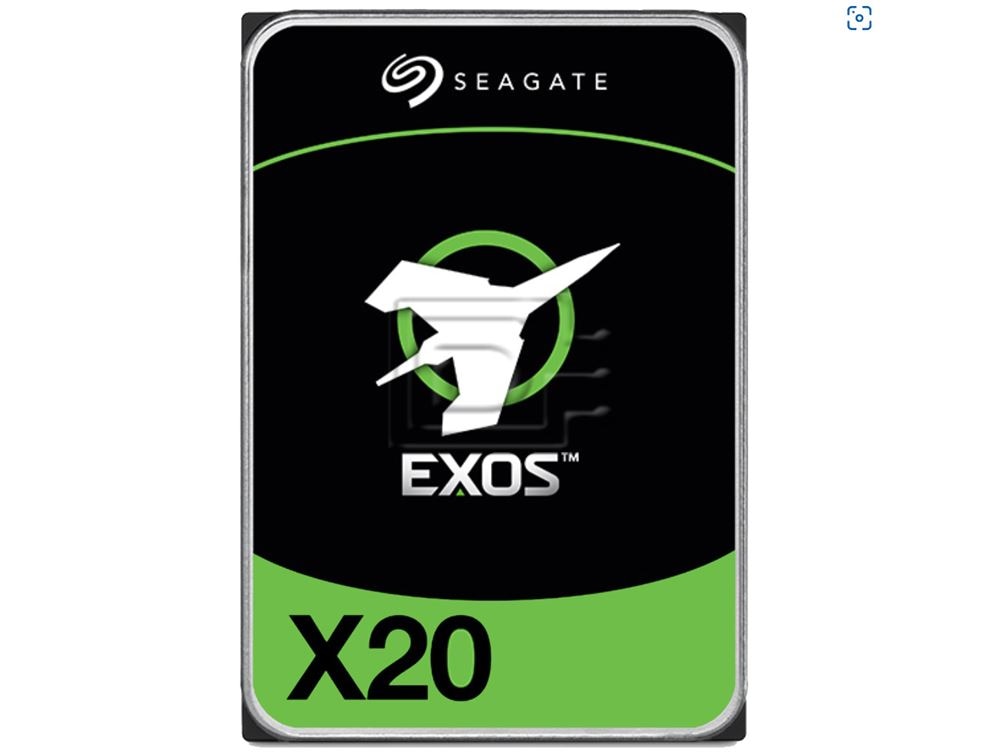

Seagate Exos X20 ST20000NM007D 20TB 3.5 LFF 6Gbps 7.2K RPM 512e Enterprise SATA Hard Drive

Seagate Part #/MPN: ST18000NM000J

DiscTech Item #: SGT-ST20000NM007D-BN-5Y


$469.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$469.00

Enterprise Grade

Capacity: 20TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 285 / 272

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Seagate Exos X20 ST20000NM007D 20TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New Seagate Exos X20 ST20000NM007D 20TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New

EXOS X20
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X20 enterprise hard drives are the highest-capacity hard drives in the fleet.

Best-Fit Applications
  • Hyperscale applications/cloud data centers
  • Massive scale-out data centers
  • Big data applications
  • High-capacity density RAID storage
  • Mainstream enterprise external storage arrays
  • Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
  • Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
• FastFormat only works with 512e and 4Kn. You can’t use FastFormat with 512-byte native drives.
• FastFormat reformats the drive, so all data on the drive will be lost once you issue the command. Don’t forget to back up your data before issuing FastFormat!
• T10 fast format conversion between 4K and 512E configurations is possible only if sector sizes are exact multiples of 8.
• The new sector size will take effect only after a fast format.

Compatibility: Compatible with systems that support 20TB 3.5" SATA HDDS

Exos Enterprise X20
Standard Model FastFormat (512e/4Kn)ST20000NM007D
Interface6Gb/s SATA III
Capacity20TB / 20000GB
Features
Helium Sealed-Drive DesignYes
Protection Information (T10 DIF)---
SuperParityYes
Low HalogenYes
PowerChoice TechnologyYes
PowerBalance TechnologyYes
Hot-Plug SupportYes
Cache, Multisegmented (MB)256
Organic Solderability PreservativeYes
RSA 2048 Firmware VerificationYes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)2,500,000
Reliability Rating @ Full 24×7 Operation (AFR)0.35%
Nonrecoverable Read Errors per Bits Read1 Sector per 1015
Power-On Hours per Year (24×7)8760
512e Sector Size (Bytes per Sector)
  • 512
4Kn Sector Size (Bytes per Sector)
  • 4096
Performance
Spindle Speed (RPM)7200
Interface Access Speed (Gb/s)
  • 6.0
  • 3.0
Max Sustainable Transfer Rate
  • 285
  • 272
Random Rewad/Write 4K QD03 WCD (IOPS)168/550
Average Latency (ms)4.16
Interface PortsSingle
Rotational Vibration @ 20-1500Hz (rad/sec)12.5
Power Consumption
Idle A (W) Average
  • 5.40W
Max Operating, Random Read/Write 4K/16Q (W)
  • 9.4
  • 6.4
Power Supply Requirements+12 V and +5 V
Evrironmental/Temperature
Temperature, Operating (°C)5°C - 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms)2.27
Shock, Operating Read/Write (Gs)40Gs
Shock, Nonoperating, 1ms/2ms (Gs)200
Physical
Height (in/mm, max)1.028in/26.1mm
Weight (in/mm, max)4.01 in/101.85 mm
Depth (in/mm, max)5.787in/147.0mm
Weigt (g/lb)670g/1.47lb

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
