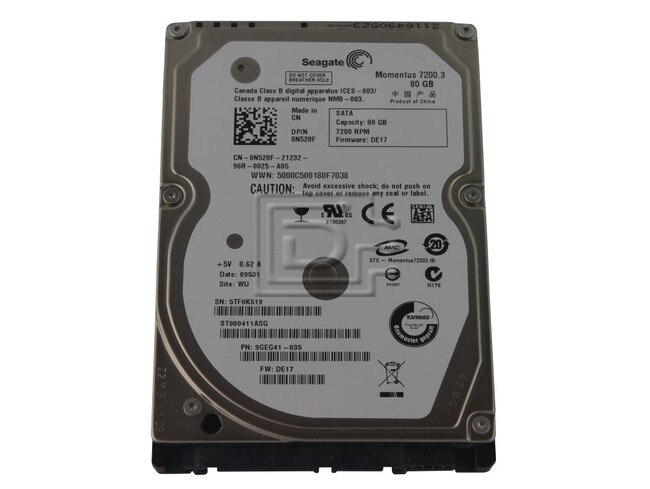

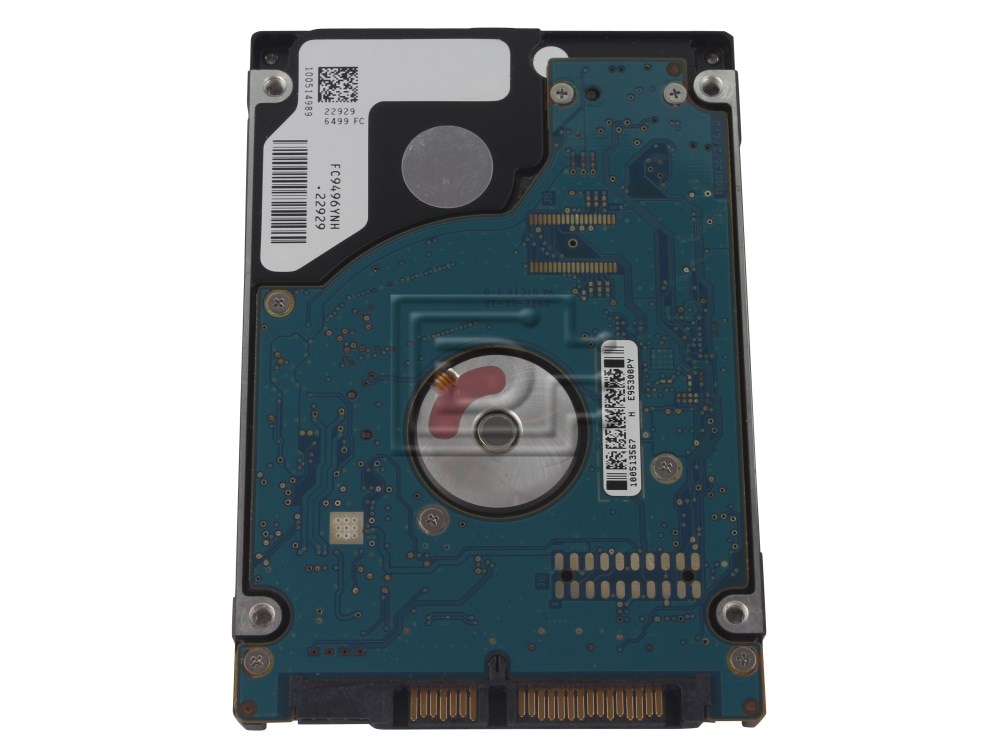

Seagate Momentus ST980411ASG SATA Hard Drive

Seagate Part #/MPN: ST980411ASG

DiscTech Item #: SGT-ST980411ASG-RF-OE-DEL


Capacity: 80GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 11 / 13

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 8MB

Seagate Momentus 7200.3  ST980411ASG 80GB 7.2K 2.5-inch mobile SATA Hard Drive - Refurbished OEM

G-Force Protection
When a laptop is dropped, the most catastrophic damage to the hard drive occurs when the head scrapes across the surface of the disk, causing potential data loss. G-Force Protection, an optional drop sensor, protects the Momentus 7200.3 drive against shock by sensing when the system is in a free-fall state, moving the heads off the platter and locking them in place—all within three-tenths of a second.

Market Opportunity
Demand for drives for laptop computers continues to grow exponentially. The laptop transition is driven by technology, as the performance gap between desktops and laptop PCs continues to close, making it possible to run the same applications on a laptop that users would previously have run on a desktop. Users no longer have to sacrifice performance for mobility.

Key Advantages
•  Highest available notebook performance increases productivity in all environments.
•  Developed with proven Seagate® 7200-RPM laptop technology
•  Available in capacities from 80 GB to 320 GB
•  SATA 3Gb/s NCQ interface.
•  16-MB cache on every capacity
•  G-Force Protection available for added robustness in mobile environments
•  Green features:
  – Leverages Seagate laptop power management technology, delivering the lowest-power 7200-RPM laptop hard drive yet
  – Utilizes ramp load features which remove the head from the disk during idle periods, improving idle power consumption
and adding to the durability of the drive
•  QuietStep™ technology enables ultra-quiet load/unload acoustics
•  Perpendicular recording technology

Alternate Part Numbers: 0N528F N528F


This drive is compatible with any laptop/computer that accepts 2.5" SATA hard drives.

ManufacturerSeagate Technology
Product LineSeagate Momentus
Environmental Parameters
Max Operating Temperature60°C
Min Operating Temperature0°C
Shock Tolerance Operating350G @ 2 ms
Shock Tolerance Storage1000G @ 1 ms
Connector Type7 pin Serial ATA
Interface (Storage)SATA-300
Drive Performance
Average Latency4.17ms
Average Seek Time2.3ms
Buffer Size16MB
Data Transfer Rate300MBps
Form Factor2.5" x .9mm
Hard Drive TypeInternal hard drive
Interface TypeSerial ATA-300
Non-Recoverable Errors1 per 10^14
Spindle Speed7200 rpm
Dimensions & Weight
Depth3.945 in
Height.374 in
Weight.243 lbs
Width2.75 in

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0N528F N528F

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
