Seagate Part #/MPN: ST10000VN0004
DiscTech Item #: SGT-ST10000VN0004-BN-3Y
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 210
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

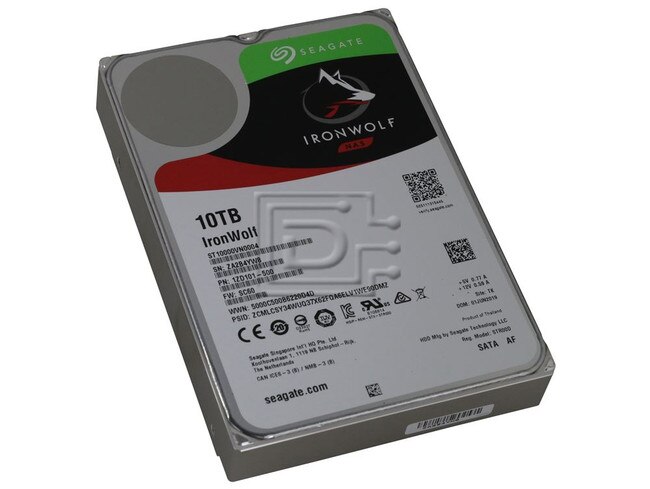

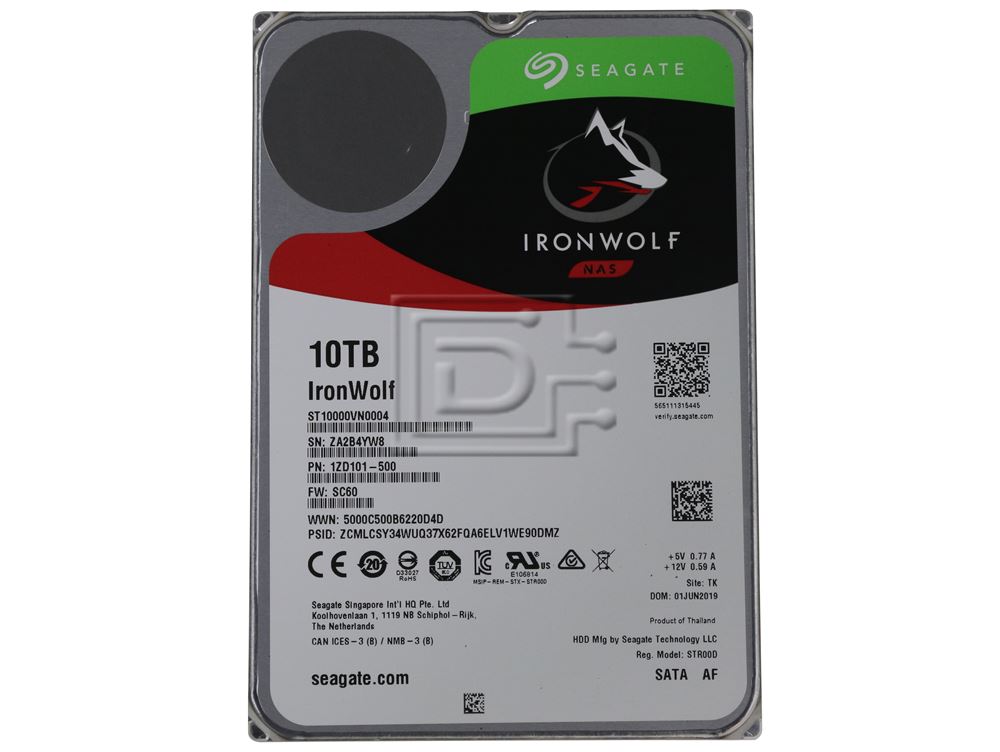

Seagate IronWolf NAS ST10000VN0004 10TB / 10,000GB 3.5-in 6.0 Gb/s 7200 RPM 512 Emulation SATA / Serial ATA Hard Disk Drive - Brand New
The Power of Agility for Home, SOHO and SMB NAS enclosures
IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24x7 performance that can handle multiple-drive environments with a wide range of capacities.
Optimized for NAS with AgileArray - AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with the most advanced power management possible.
High performance means no lag times - or downtime for users during high traffic time for the NAS. Seagate leads the competition with the highest performance in NAS-class drives.
Range of capacities up to 10TB.- More capacity options mean more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
Get ahead with more cache. - IronWolf provides high-cache options allowing your NAS to serve data faster.
Do more with multi-user technology. - Enables user workload rate of 180TB/year. Multiple users can confidently upload and download data to the NAS server, knowing it can handle the workload, whether you’re a creative professional or small business.
Designed for always on, always accessible 24×7 performance. - Access your data on your NAS any time, remotely or on site.
1M hours MTBF - represents an improved total cost of ownership (TCO) with reduced maintenance costs.
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
|IronWolf NAS Seagate|
|Features and Performance|
|Formatted Capacity||10TB / 10000GB|
|Number of Drive Bays Supported||1 to 8|
|Multi-User Technology (TB/yr)||180|
|Rotational Vibration (RV) Sensors||Yes|
|Error Recovery Control||Yes|
|Max Sustained Data Transfer Rate OD (MB/s)||210|
|Spindle Speed (RPM)||7200|
|Nonrecoverable Read Errors per Bits Read, Max||1 per 10E15|
|Power-On hours (per year)||8760|
|Workload Rate Limit (WRL) (TB/year)||180|
|Mean Time Between Failures (MTBF) (hours)||1M|
|Startup Current, Typical (12V, A)||1.8|
|Average Operating Power (W)||6.8|
|Idle Average (W)||4.42|
|Standby Mode/Sleep Mode, Typical (W)||0.8/0.8|
|Voltage Tolerance (5V)||±5%|
|Voltage Tolerance (12V)||±105%|
|Operating (ambient, min)||5|
|Operating (drive case, max)||70|
|Nonoperating (ambient, min)||-40|
|Non Operating (ambient, max)||70|
|Shock, Operating/Nonoperating: 2ms (max, Gs)||70/250|
|Idle (typical, bels)||2.8|
|Operating (typical, bels)||3.2|
|Height (mm/in, max)||26.11/1.028|
|Width (mm/in, max)||101.85/4.01|
|Depth (mm/in, max)||146.99/5.787|
|Weight (g/lb, typical)||650/1.433|
Click here to view the manufacturer's item description/brochure
Weight: 1.5 lb
Warranty: 3 Year Manufacturer
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
