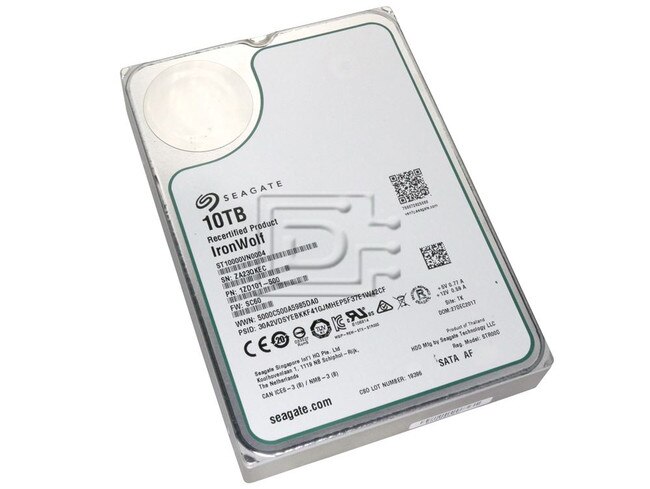

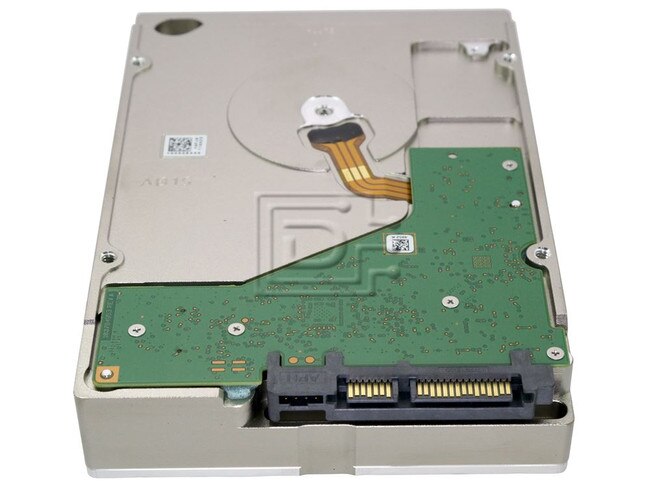

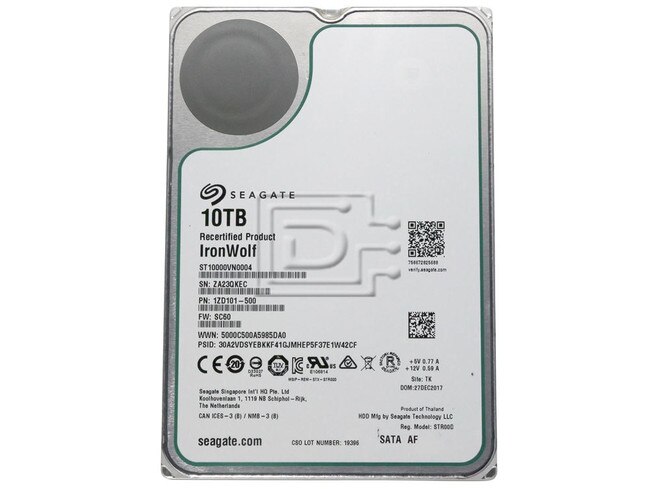

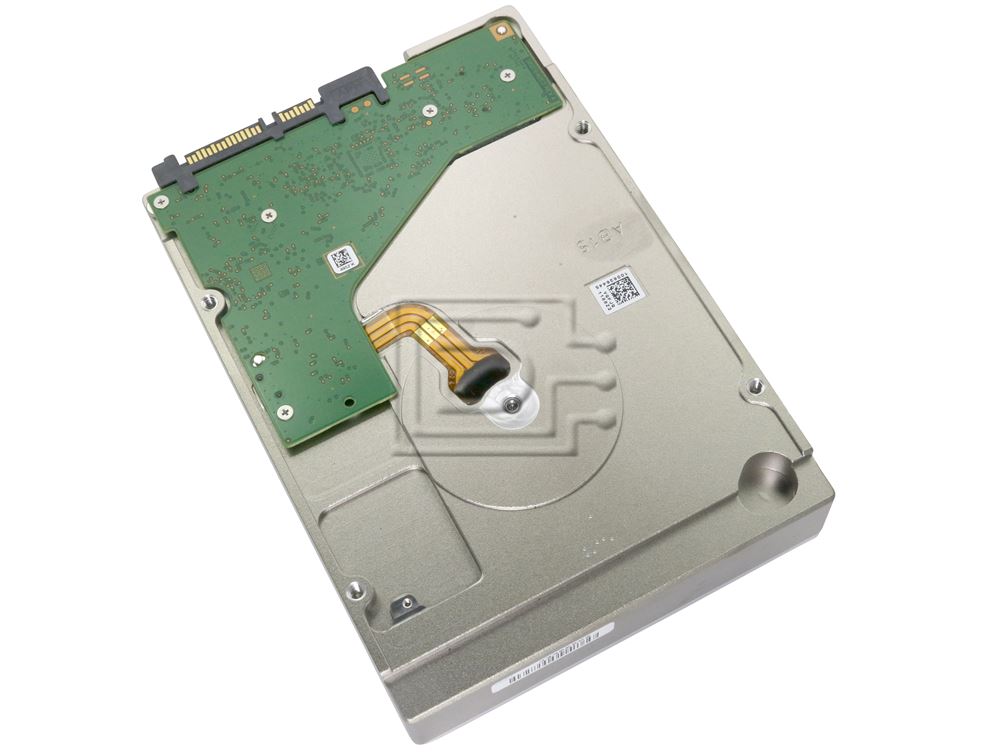

Seagate ST10000VN0004 10TB SATA Hard Drive

Seagate Part #/MPN: ST10000VN0004

DiscTech Item #: SGT-ST10000VN0004-FR-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 10TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 210

Average Seek Time: 4.16

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 256MB

Bays/Ports/Slots: 8

Seagate IronWolf NAS ST10000VN0004 10TB / 10,000GB 3.5-in 6.0 Gb/s 7200 RPM 512 Emulation SATA / Serial ATA Hard Disk Drive - Factory ReCertificated

The Power of Agility for Home, SOHO and SMB NAS enclosures

IronWolf is designed for everything NAS. Get used to tough, ready and scalable 24x7 performance that can handle multiple-drive environments with a wide range of capacities.


Optimized for NAS with AgileArray
- AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with the most advanced power management possible.

High performance means no lag times - or downtime for users during high traffic time for the NAS. Seagate leads the competition with the highest performance in NAS-class drives.

Range of capacities up to 10TB.- More capacity options mean more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.

Get ahead with more cache. - IronWolf provides high-cache options allowing your NAS to serve data faster.

Do more with multi-user technology. - Enables user workload rate of 180TB/year. Multiple users can confidently upload and download data to the NAS server, knowing it can handle the workload, whether you’re a creative professional or small business.

Designed for always on, always accessible 24×7 performance. - Access your data on your NAS any time, remotely or on site.

1M hours MTBF - represents an improved total cost of ownership (TCO) with reduced maintenance costs.


This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.

IronWolf NAS Seagate
Model NumbersST10000VN0004
InterfaceSATA 6Gb/s
Features and Performance
Formatted Capacity10TB / 10000GB
Sector Size512e
Number of Drive Bays Supported1 to 8
Multi-User Technology (TB/yr)180
Rotational Vibration (RV) SensorsYes
Dual-Plane BalanceYes
Error Recovery ControlYes
Max Sustained Data Transfer Rate OD (MB/s)210
Spindle Speed (RPM)7200
Cache (MB)256
Reliability/Data Integity
Load/Unload Cycles600,000
Nonrecoverable Read Errors per Bits Read, Max1 per 10E15
Power-On hours (per year)8760
Workload Rate Limit (WRL) (TB/year)180
Mean Time Between Failures (MTBF) (hours)1M
Power Management
Startup Current, Typical (12V, A)1.8
Average Operating Power (W)6.8
Idle Average (W)4.42
Standby Mode/Sleep Mode, Typical (W)0.8/0.8
Voltage Tolerance (5V)±5%
Voltage Tolerance (12V)±105%
Temperature (°C)
Operating (ambient, min)5
Operating (drive case, max)70
Nonoperating (ambient, min)-40
Non Operating (ambient, max)70
Halogen FreeYes
Shock, Operating/Nonoperating: 2ms (max, Gs)70/250
Idle (typical, bels)2.8
Operating (typical, bels)3.2
Height (mm/in, max)26.11/1.028
Width (mm/in, max)101.85/4.01
Depth (mm/in, max)146.99/5.787
Weight (g/lb, typical)650/1.433

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
