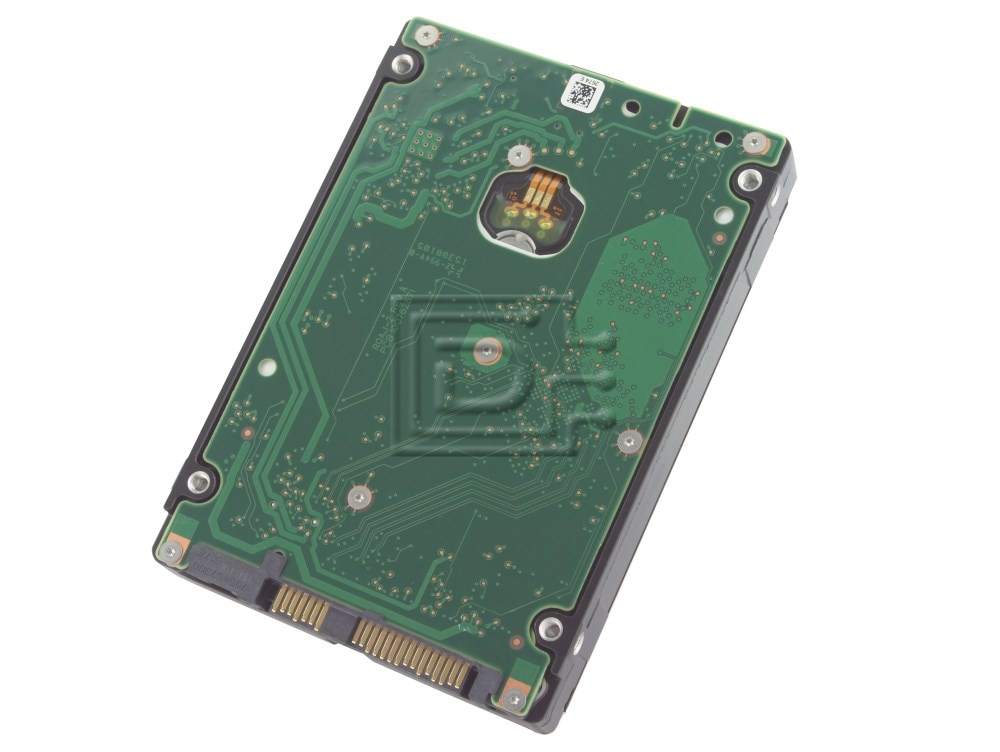

Seagate ST1000NX0453 / 56M6W 1TB SFF Enterprise SAS Hard Drive

Seagate Part #/MPN: ST1000NX0453

DiscTech Item #: SGT-ST1000NX0453-BN-OE-DEL


$225.00
$225.00

Enterprise Grade

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 136

Average Seek Time: 4.16

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Seagate ST1000NX0453 / 56M6W 1TB / 1000GB 12.0Gbps 7,200 RPM 2.5in SFF 512N Enterprise SAS Hard Drive - Brand New OEM

Alt. MPN: 1VE200-150
Alt DPNs: 56M6W, 056M6W

Enterprise Capacity 2.5 HDD

Design Small and Deliver BIG—2.5-Inch Nearline Drive

  • Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers
  • Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency
  • Choose 12Gb/s SAS for high data integrity, scalability and fast data access or SATA 6Gb/s for economical nearline performance.
  • Third-generation, enterprise-class reliability for 24×7 environmental robustness
  • Advanced sector formats (4K Native and 512 Emulation) as well as 512 Native support for legacy systems
  • Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation
  • Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
  • Lowest enterprise operating power and enhanced PowerChoice™ options for additional power savings during idle periods
  • Protect data where it lives—on the drive—by choosing from government-grade SED FIPS 140-2 option or SED models with Seagate Instant Secure Erase technology for easy and cost-effective drive disposal.

Best-Fit Applications

  • Storage-hungry business applications
  • Storage area networks (SAN) and network attached storage (NAS)
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore—D2D, virtual tape
  • Cloud computing

Compatibility:

This drive is compatible with any server that accepts 2.5"x15MM (SFF) SAS drives.

Specifications
Standard Model NumberST1000NX0453
InterfaceSAS 12Gbps
Format512 Native
Features
PowerChoice™ On-Demand Power OptionYes
Protection InformationYes
Low HalogenYes
RAID Rebuild™ Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2.0 million
Reliability Rating @ Full 24x7 operation (AFR)0.44%
Nonrecoverable Read Errors per Bits Read1 sector per 10E15
Power-On Hours per Year8760
Bytes per Sector512
Performance
Spindle Speed (RPM)7200
Cache Buffer, Multisegmented (MB)128
Interface Access Speed (Gb/s)12.0, 6.0, 3.0
Max. Sustained Transfer Rate (MB/s)136
Average Latency (ms)4.16
Interface PortsDual
RV Tolerance (rad/s to 1800Hz)16
Physical
Height (in/mm)0.591/15.00
Width (in/mm)2.760/70.10
Depth (in/mm)3.955/100.45
Weight (lb/kg) 0.437/0.198

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 056M6W 56M6W 1VE200-150

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
