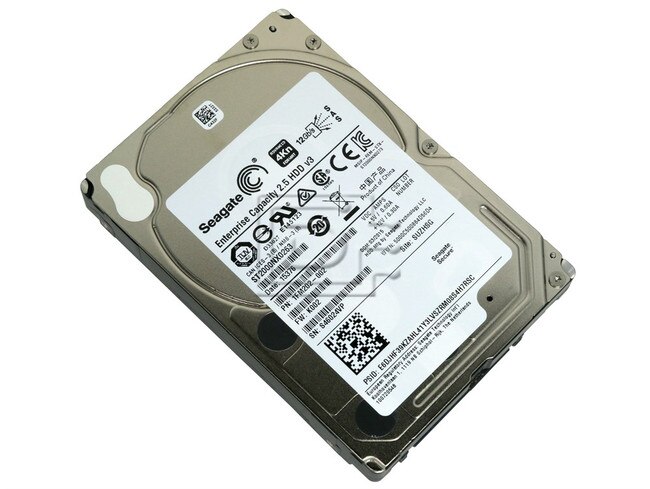

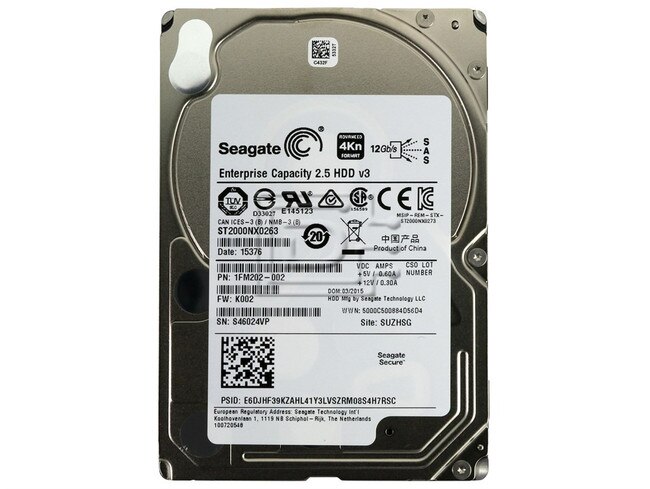

Seagate ST2000NX0263 2000GB SAS Hard Drive
- New Retail BoxCondition Levels Explained
The product is brand new & sealed in retail box packaging.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Seagate ST2000NX0263 2TB 2.5in 12Gbps 7200RPM Enterprise Capacity (4Kn) SAS HDD - Brand New
Seagate ST2000NX0263 2000GB 2.5" 12.0 Gbps 7.2K RPM Enterprise Capacity 4K Native Serial Attached SCSI Hard Disk Drive - Brand New
Design Small and Deliver BIG—2.5-Inch Nearline Drive
- Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
- Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
- Third-generation, enterprise-class reliability for 24x7 environmental robustness.
- Highest efficiency for over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
- Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
- Lowest enterprise operation power and enhanced PowerChoice™ options for additional power savings during idle periods.
Best-Fit Applications
- Storage-hungry business applications.
- Storage area networks (SAN) and network attached storage (NAS)
- Maximum-capacity entry-level servers and blade servers
- Rich media content storage
- Enterprise backup and restore—D2D, virtual tape
- Cloud computing
Compatibility:
This drive is compatible with any server that accepts 2.5" x 15mm (SFF Hard Drive) SAS drive.
Specifications
| Drive Model | ST2000NX0263 |
|---|---|
| Capacity | 2TB/2000GB |
| Interface | SAS 12Gbps |
| Self-Encrypted Drive | No |
| Features | |
| PowerChoice™ on-demand power option | Yes |
| Protection Information | Yes |
| Low Halogen | Yes |
| RAID Rebuild™ | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.4 million |
| Reliability Rating @ Full 24x7 operation (AFR) | 0.63% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 |
| Bytes per Sector | 4K |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Cache Buffer, Multisegmented (MB) | 128 |
| Interface Acces Speed (Gb/s) | 12.0 |
| Max. Sustained Transfer Rate (MB/s) | 136 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| RV Tolerance(rad/s to 1800Hz) | 16 |
| Power Management | |
| Idle Power (W) | 3.53 |
| Typical Operating, Random Read (W) | 6.02 |
| PowerChoice™ Technology (Standby) (W) | 1.52 |
| Power Supply Requirements | +12V and +5V |
| Enviromental | |
| Temperature, Operating (˚C) | 5 to 55 |
| Vibration, Operating, 5Hz to 500Hz (Gs) | 0.5 |
| Vibration, NonOperation, 5Hz to 500Hz (Gs) | 3.0 |
| Shock, Operating, 2ms (Gs) | 25 |
| Shock, Nonoperating, 2ms (Gs) | 400 |
| Acoustics, Typical Idle (bels) | 2.8 |
| Acoustics, Typical Seek (bels) | 3.2 |
| Physical | |
| Height (in/mm) | 0.591/15.00 |
| Width (in/mm) | 2.760/70.10 |
| Depth (in/mm) | 3.955/100.45 |
| Weight (lb/g) | 0.437/198 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
Condition
New Retail Box
Warranty
5 Year Manufacturer Warranty
