Dell NCT9F / Seagate ST300MP0026 300GB 15K SAS

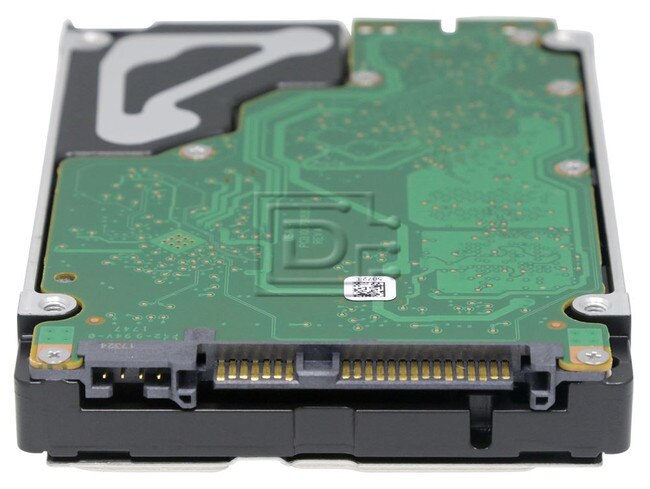

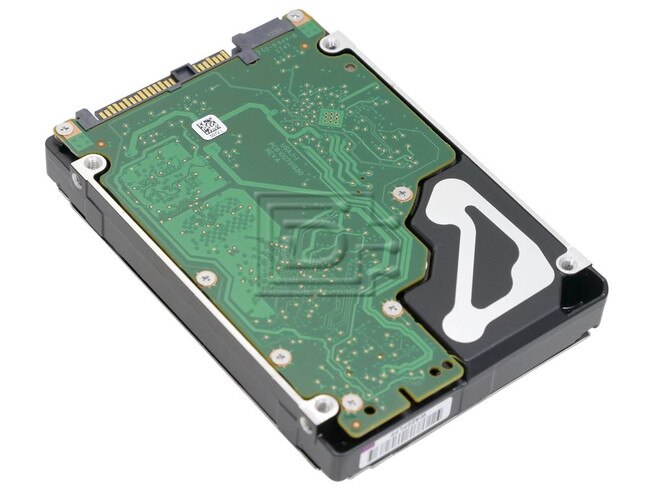

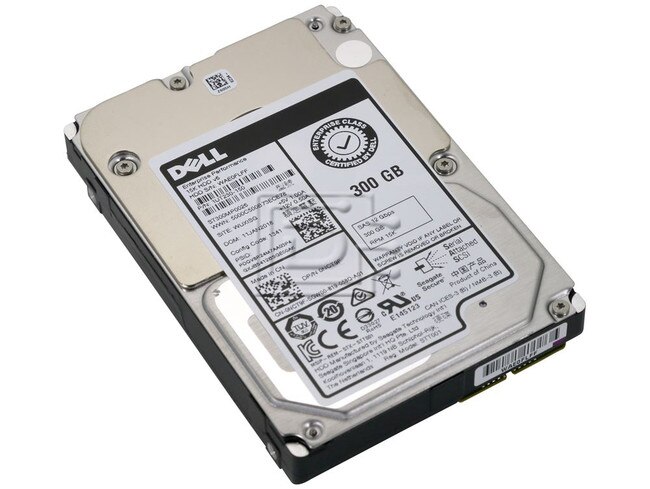

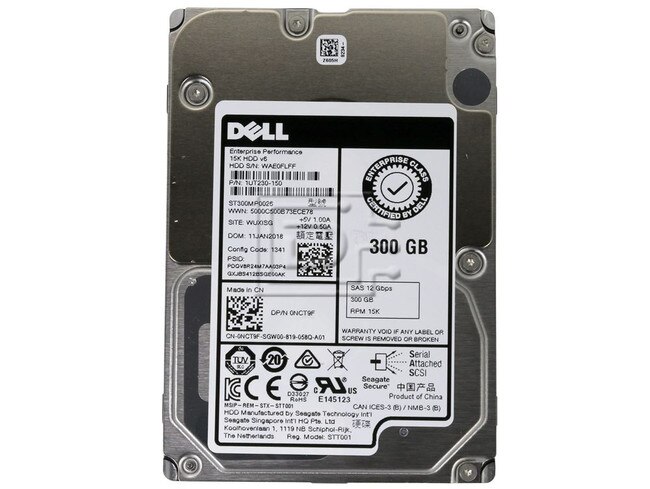

  • Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 1
  • Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 2
  • Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 3
  • Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 4
Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 1
Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 2
Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 3
Seagate ST300MP0026 1UT230-150 NCT9F 0NCT9F SAS Hard Drive image 4

Seagate Part #/MPN: ST300MP0026

DiscTech Item #: SGT-ST300MP0026-BN-OE-DEL

$124.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$124.00

Enterprise Grade

Capacity: 300GB

Speed: 15K RPM

Interface Types: SAS

Form Factor: 2.5" SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 233 to 160

Average Seek Time: 2.0

Electrical Interface: SAS-3 12Gbps

On-Board Cache: 256MB

Dell NCT9F / Seagate ST300MP0026 300GB 2.5in SFF 12Gbps 15K RPM Enterprise SAS HDD - Brand New OEM

Alt PN: 1UT230-150 NCT9F 0NCT9F

Enterprise Performance 15K HDD

High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.

Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

SPECIFICATIONS
Model NumberST300MP0026
Specification512
Capacity300GB
Interface12Gb/s SAS
PERFORMANCE
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s233 to 160
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)256
CONFIGURATION/RELIABILITY
Disks/Heads2/4
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical Op (A) +5V/+12V0.46/0.51
Average Idle Power (W)4.8
Average Operating Power (W)8.4
ENVIRONMENTAL
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
PHYSICAL
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.496/0.225
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1UT230-150 NCT9F 0NCT9F

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
