Seagate ST336754SS SAS Hard Disks Drives

Seagate Part #/MPN: ST336754SS

DiscTech Item #: SGT-ST336754SS-BN-OE-DEL

$239.95

Brand New
Warranty:1 Year DiscTech
Low Stock:Call for ETA

Back

$239.95

Enterprise Grade

Capacity: 36GB

Speed: 15K RPM

Interface Types: SAS

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 85.6 to 142.7

Average Seek Time: 3.5 / 4.0

Electrical Interface: SAS-1 3Gbps

On-Board Cache: 8MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

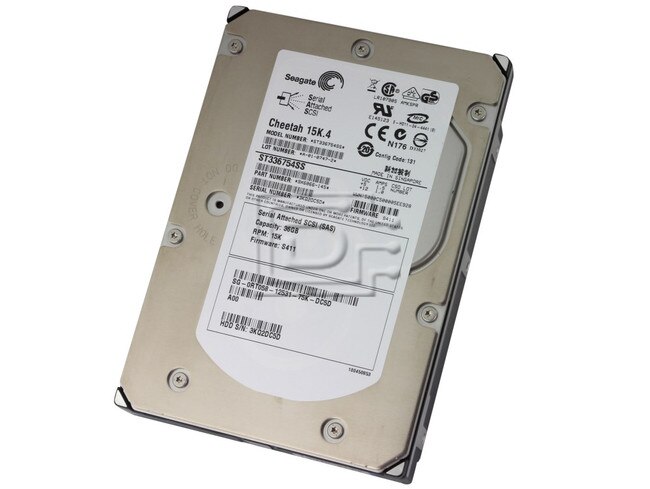

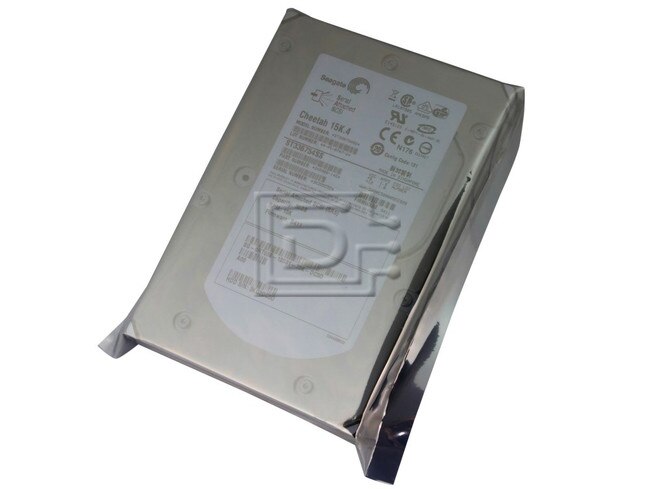

Seagate Cheetah 15K.4 36GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive ST336754SS - Brand New OEM

Alt MPN: 9X6066-145
Dell PNs: RT058, 0RT058


The Cheetah 15K.4 is the best performance, lowest cost of ownership, 3.5-inch disc drive. It enables higher performance with fewer drives, while offering the industry's highest reliability.

Features	Benefits

15K RPM spindle speed	Delivers more I/O's per second than 10K, and faster sustained transfer rates, enabling the same high performance to be met with fewer drives.
Background Media Scan	Proactively scans the media for potential defects during drive idle time without using system bandwidth. It enables incipient errors to be corrected before data is lost.
Enhanced Error Correction Code	Better maintains performance throughout the life of the drive and reduces the probability of lost data.
Fluid Dynamic Bearing Motor	No ball bearings means reduced acoustics and improved reliability.
Full Duty Cycle Reliability	The Cheetah 15K.4 is designed to have the highest reliability, even when in used in demanding applications around the clock, 365 days per year.
Serial Attached SCSI (3 Gb/sec)	Serial Attached SCSI (SAS) enables high-performance 15K SAS drives to interoperate with high-capacity NL35 SATA drives helping simplify and consolidate tiered storage.

Distinctions
30% more IOPS and more than 20% faster response times than 3.5-inch 10K drives The industry's highest reliability, with 1,400,000 hour MTBF

Compatibility: All SAS compatible servers including:
Dell PowerEdge 2900, 2950, 69090, 6950. PowerVault MD1000

Description

Model number		ST336754SS
Model Name		Cheetah 15K.4
Form Factor(width)		3.5-inch
Form Factor(height)		1-inch

Physical Specifications

Height		25.4 mm
Width		101.6 mm
Length		146.05 mm
Weight		0.68 kg

Capacity/Interface

Formatted Capacity		36.7 Gbytes

Performance

Transfer Rates

Internal Transfer Rate (min)		685 Mbits/sec
Internal Transfer Rate (max)		1,142 Mbits/sec
Formatted Int Transfer Rate (min)		85.6 MBytes/sec
Formatted Int Transfer Rate (max)		142.7 MBytes/sec
External (I/O) Transfer Rate (max)		300 MBytes/sec
Seek Times

Average Seek Time, Read		3.5 msec typical
Average Seek Time, Write		4 msec typical
Track-to-Track Seek, Read		0.2 msec typical
Track-to-Track Seek, Write		0.4 msec typical
Full Disc Seek, Read		7.4 msec typical
Full Disc Seek, Write		7.9 msec typical
Average Latency		2 msec
Other

Default Buffer (cache) Size		8,192 Kbytes
Spindle Speed		15K RPM
Spinup Time		20 sec
Power-on to Ready Time		3 sec

Configuration

Number of Discs (physical)		4
Number of Heads (physical)		8
Total Cylinders		50,864
Total Tracks		203,456
Bytes Per Sector		512
Track Density (TPI)		85,000 tracks/inch
Recording Density (BPI, max)		628,000 bits/inch
Bytes/Track (avg)		471,916
Recording Components


Electrical Requirements

Current

Typical Current (12VDC +/- 5%)		0.83 amps
Startup Current (12VDC +/- 5%)		2.56 amps
Typical Current (5VDC +/- 5%)		1.12 amps
Startup Current (5VDC +/- 5%)		1.64 amps
Power

Idle Power (typ)		10.33 watts

Environmental Specifications

Shock and Vibration

Max Operating Shock (2-msec)		65 Gs
Max Nonoperating Shock (2-msec)		250 Gs
Operating Vibration (max)		0.5 Gs
Nonoperating Vibration (max)		2 Gs
Temperature and Humidity

Operating Temperature (max)		55 deg C
Operating Temperature (min)		5 deg C
Nonoperating Temperature (max)		70 deg C
Nonoperating Temperature (min)		-40 deg C
Operating Temperature Change (max)		20 deg C/hr
Nonoperating Temperature Change (max)		20 deg C/hr
Operating Humidity (max)		95 percent
Nonoperating Humidity (max)		95 percent
Operating Humidity Change (max)		20 percent per hour
Operating Wet Bulb Temp (max)		28 deg C
Altitude

Operating Altitude (max)		3,048 m
Operating Altitude (min)		-305 m
Nonoperating Altitude (max)		12,210 m
Nonoperating Altitude (min)		-305 m
Acoustics

Acoustics, Idle (sound power, typ)		3.6 Bels

Reliability

MTBF (Hours)		1,400,000 hours
Recoverable Read Errors		10 per 1012 bits read
Nonrecoverable Read Errors		1 per 1015 bits read
Seek Errors		10 per 108 bits read
Supports S.M.A.R.T.		Yes
Service Life		5 year(s)
Limited Warranty Period		5 year(s)
