Seagate ST3500514NS SATA Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 500GB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 300 - 3Gbps |
| RAM: | 32MB |
Description

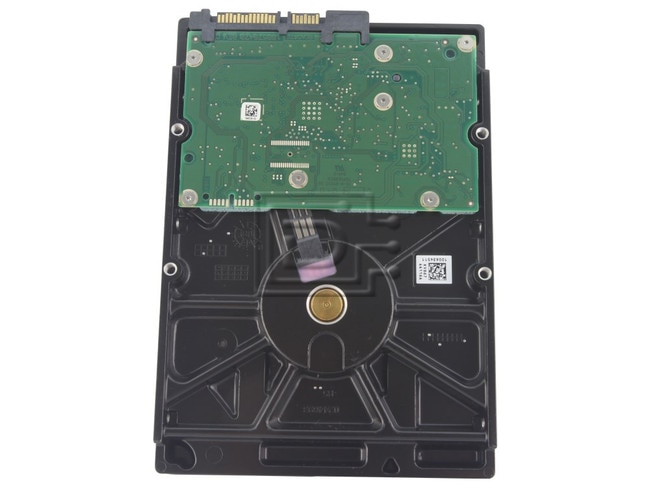

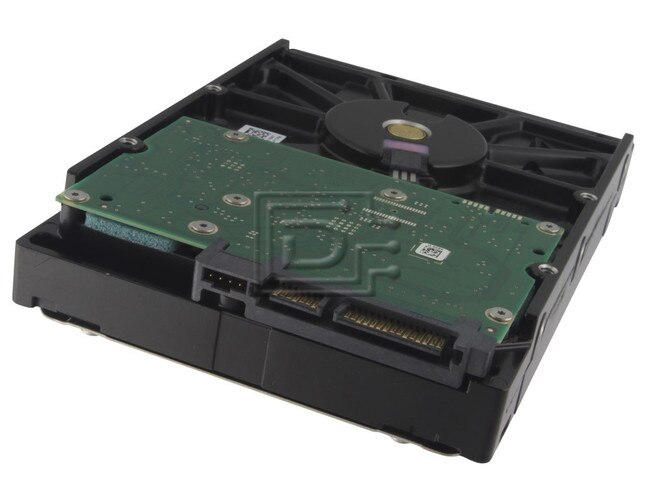

Seagate Constellation ES 500GB 7.2K SATA Hard Drive ST3500514NS - Brand New
Key Advantages
• Fourth-generation, enterprise, nearline drive designed for 24×7 operation
• Up to 2TB capacity for data-hungry enterprise business applications
• Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access.
• Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
• Proven reliability with multi-drive fi rmware maximized for enterprise system availability
• Robust performance with dual processor technology and ramp load technology
• Provides business sustainability with Seagate Unified Storage architecture - 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity
- Government-grade Self-Encrypting Drive (SED) option for TCG-compliant/AES-128 security cuts IT drive retirement costs while securely protecting data.¹
Best-Fit Applications
• High-capacity data center storage
• Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
• Enterprise backup and restore—D2D, virtual tape
• Centralized surveillance
• Cloud storage
Alt. PN: 9JW152
Compatibility
This drive is compatible with any of our SATA hot-swap trays.
Specifications
| Performance Specifications | ST3500514NS |
| Rotational Speed | 7200 RPM |
| Buffer Size | 32 MB |
| Average Latency | 4.20 ms (nominal) |
| Transfer Rates | |
| Buffer To Host (Serial ATA) | 3 Gb/s (maximum) |
| Physical Specifications | |
| Formatted Capacity | 500,107 MB |
| Capacity | 500 GB |
| Interface | SATA 150 / 300 MB/s |
| User Sectors Per Drive | 976,773,168 |
| Physical Dimensions | |
| Height | 1.028 Inches (Max) |
| Length | 5.787 Inches (Max) |
| Width | 4.00 Inches (+/- 0.010 inch) |
| Metric | |
| Height | 25.4 mm (Max) |
| Length | 147 mm (Max) |
| Width | 101.6 mm |
| Weight | 0.63 kg |
| Environmental Specifications | |
| Operating Shock (Read/Write) | 70G / 40G |
| Non-operating Shock | 350G |
| Acoustics | |
| Idle Mode (bels, typical) | 1.9 (average) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9JW152
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
