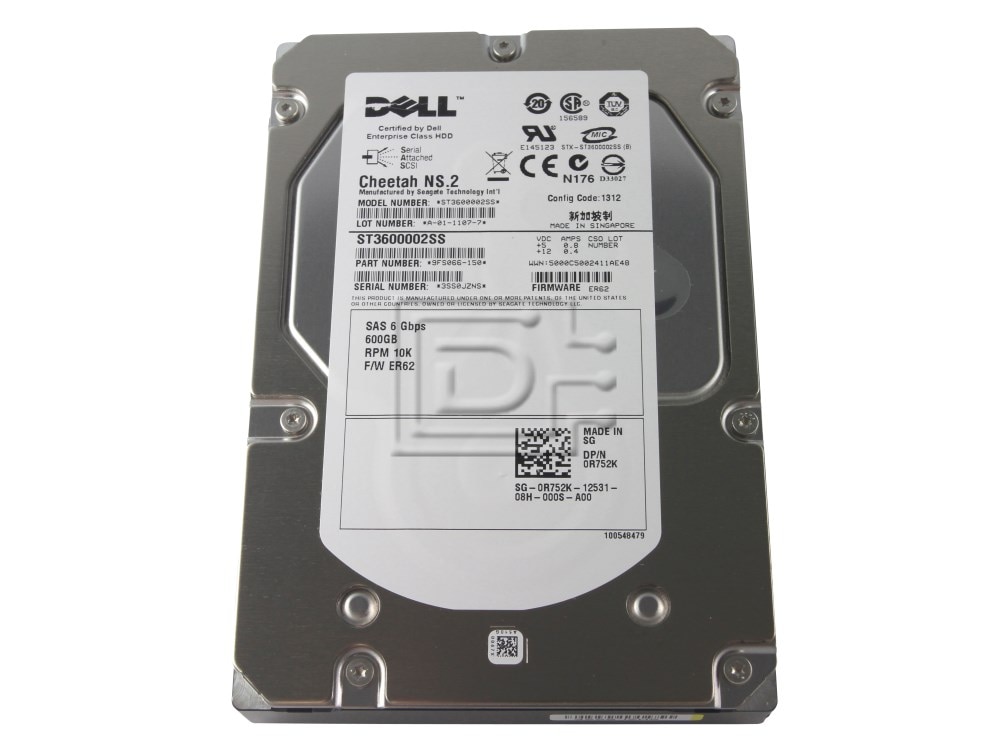

Seagate ST3600002SS SAS Hard Disk Drives

Seagate Part #/MPN: ST3600002SS

DiscTech Item #: SGT-ST3600002SS-RF-OE-DEL


$69.00
$69.00

Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 150

Average Seek Time: 3.8 / 4.4

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Seagate Cheetah NS.2 600GB 10K 6.0Gbps Serial SCSI / SAS Hard Drive ST3600002SS - Refurbished OEM

The Seagate® Cheetah® NS.2 drive reduces costs with the lowest-power, highest-capacity and highest-reliability solution for 3.5-inch Tier 1 requirements.

Key Advantages

  • Lowest-power 3.5-inch Tier 1 drive (20 percent delta over runner-up).
  • Highest-capacity Tier 1 drive (600 GBc.
  • Highest reliability rating in the industry.
  • Seagate PowerTrim™ technology dynamically reduces power usage.
  • Supports 6-Gb/s SAS 2.0.
  • Government-grade Self-Encrypting Drive option.

Dell p/n: 0K054N K054N R752K 0R752K


Compatibility:

This drive is compatible with all SAS compatible servers including:

Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605 Servers and PowerVault MD1000, MD3000, NF100, NF500, NF600 Storage Arrays.

HP / Compaq Proliant DL140 G2 , DL140 G3 , DL145 G2 , DL145 G3 , DL160 G5 , DL160 G5p , DL165 G5 , DL180 G5 , DL185 G5, DL320 G3 , DL320 G4 , DL320 G5 , DL320 G5p , DL360 G4p , DL380 G5 , ML110 G3 , ML150 G3 , ML150 G5 , ML310 G2 , ML310 G3 , ML310 G4 , ML310 G5 , ML350 G4p , ML350 G5.

Specifications
Model number ST3600002SS
Model Name Cheetah NS.2
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.05 mm
Weight 0.686 kg
Formatted Capacity 600 Gbytes
Internal Transfer Rate (max) 1840 Mbits/sec
External (I/O) Transfer Rate (max) 600 MBytes/sec
Average Seek Time, Read 3.8 msec typical
Average Seek Time, Write 4.4 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 3 msec
Default Buffer (cache) Size 16 Mbytes
Number of Discs (physical) 4
Number of Heads (physical) 8
Max Operating Shock (2-msec) 60 Gs
Max Nonoperating Shock (2-msec) 300 Gs
Operating Vibration (max) 1.0 Gs
Nonoperating Vibration (max) 3.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustics, Idle (sound power, typ) 3.6 Bels
MTBF (Hours) 1,600,000 hours
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0K054N K054N R752K 0R752K

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
