Dell Equallogic WK0CR / Seagate Cheetah ST3600002SS NS.2 600GB 10K 6Gbps SAS drives
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 16MB |
Description

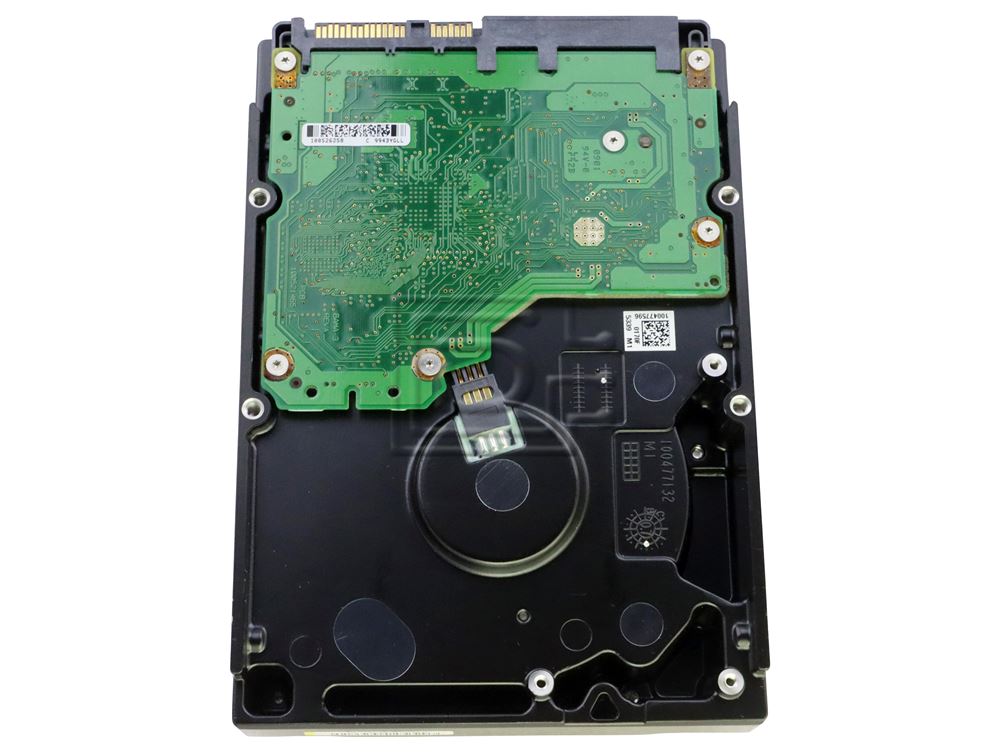

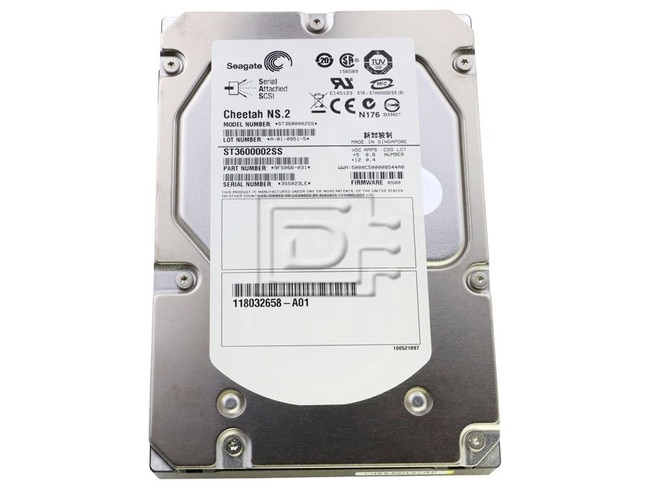

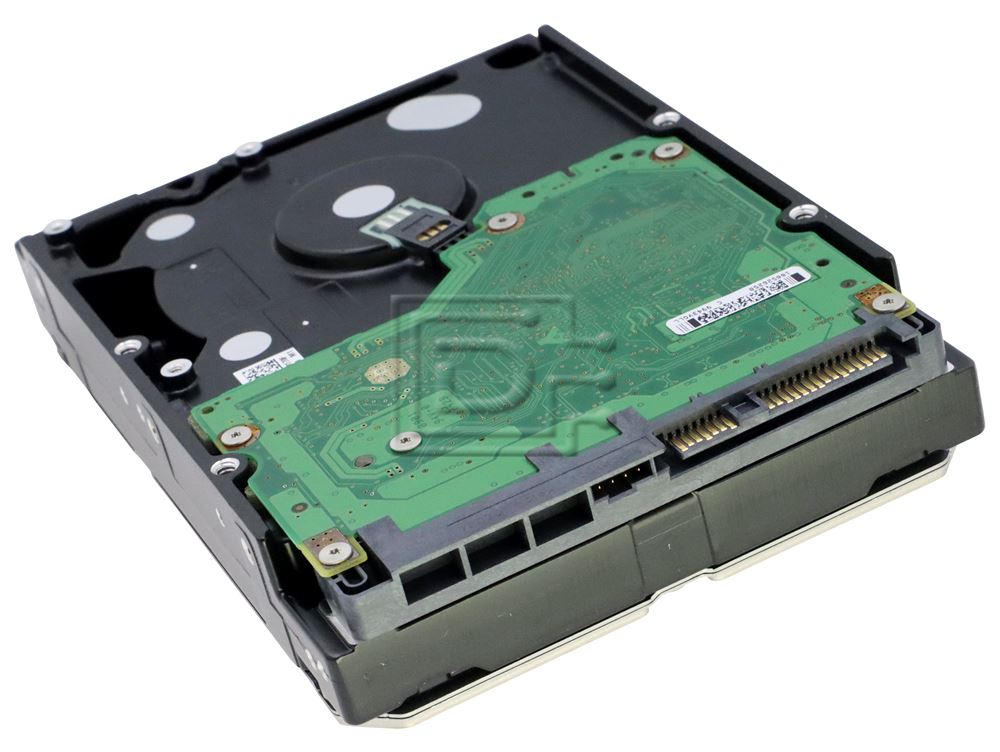

Dell Equallogic WK0CR / Seagate Cheetah ST3600002SS / 9FS066-057 / NS.2 600GB 10K 6.0Gbps Serial SCSI / SAS Hard Drive - Refurbished OEM
The Seagate Cheetah NS.2 drive reduces costs with the lowest-power, highest-capacity and highest-reliability solution for 3.5-inch Tier 1 requirements.
Key Advantages
- Lowest-power 3.5-inch Tier 1 drive (20 percent delta over runner-up).
- Highest-capacity Tier 1 drive (600 GBc.
- Highest reliability rating in the industry.
- Seagate PowerTrim™ technology dynamically reduces power usage.
- Supports 6-Gb/s SAS 2.0.
- Government-grade Self-Encrypting Drive option.
Compatible with the PS4000X, PS5000X, PS6000X, PS6500X, PS4100X, & PS6100X series EqualLogic systems. 9FS066-057
DPN: WK0CR 0WK0CR
Compatibility:
This drive is compatible with all SAS compatible servers including:
Compatible with the PS4000X, PS5000X, PS6000X, PS6500X, PS4100X, & PS6100X series EqualLogic systems.
DPN: WK0CR 0WK0CR
Specifications
| Specifications | |
| Model number | ST3600002SS |
| Model Name | Cheetah NS.2 |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.686 kg |
| Formatted Capacity | 600 Gbytes |
 | |
| Internal Transfer Rate (max) | 1840 Mbits/sec |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| |
| Average Seek Time, Read | 3.8 msec typical |
| Average Seek Time, Write | 4.4 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 3 msec |
| |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 4 |
| Number of Heads (physical) | 8 |
| |
| |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 3.0 Gs |
| |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustics, Idle (sound power, typ) | 3.6 Bels |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9FS066-057 WK0CR 0WK0CR
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
