Seagate Part #/MPN: ST400FM0053
DiscTech Item #: SGT-ST400FM0053-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 750/500
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

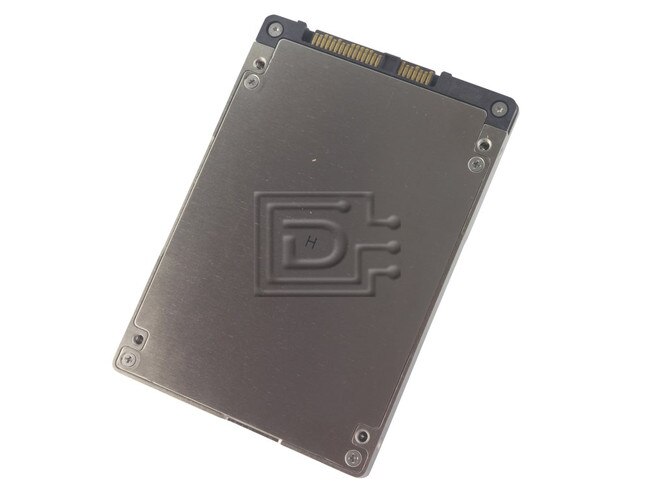

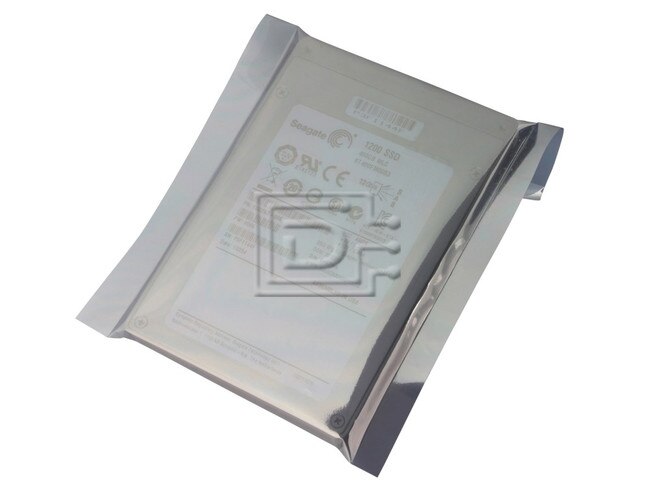

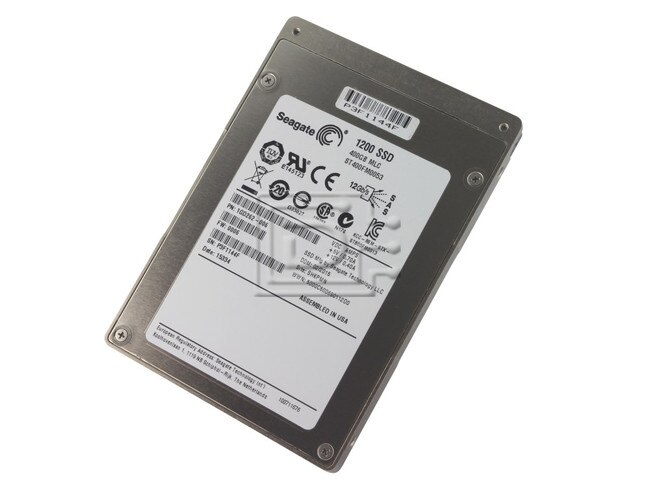

Seagate ST400FM0053 400GB 2.5" 12.0Gbps Enterprise Statistical Analysis System Ultra-fast Multi-Level Cell Solid State Disk Drive - Factory Recertified
Ultra-Fast, Consistent Performance Plus 12Gb/s SAS
- Helps remove storage bottlenecks and close the gap between processor and data access performance
- Delivers the speed and performance consistency needed for demanding enterprise applications
- Designed to reduce data access wait times under the most complex, write-intensive workloads
- First SSD to ship in volume with 12Gb/s SAS while ensuring the highest level of reliability and scalability
- Ensures data availability for critical production systems by using redundant, failover I/O communication paths
- Helps improve ROI by leveraging existing SAS infrastructures
- Custom-designed controller leverages Seagate enterprise expertise and manufacturing excellence
- Helps safeguard data against unexpected power loss and protects data from undetected, unintentional corruption
- Helps ensure data integrity with multiple layers of I/O error detection and correction
Best-Fit Applications
- Demanding, enterprise applications with complex, write-intensive and mixed workloads
- IOPS-hungry enterprise applications, such as high-performance computing, online transaction processing and heavy data analytics
- Enterprise applications that demand high data availability and integrity as well as interface failover redundancy
- External enterprise storage solutions (SAN, NAS, DAS) and servers
Alt PNs: 1GD262-006
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SAS drives.
Drive Model | ST400FM0053 |
---|---|
Capacity | 400GB |
Performance | |
Interface Option | 12Gbps SAS |
NAND Flash Type | MLC |
Sustained Data Transfer Rate, Max (MB/s) | 750 |
I/O Data Transfer Rate, Max (MB/s) | 1200 |
I/Os per Second per Watt (IOPS/W) | 29,650 |
Sequential Read/Write Command Rate (MB/s) Peak, 128KB | 750/500 |
Random Read/Write Command Rate (IOPS) Peak, 4KB | 110,000/40,000 |
Configuration/Reliability | |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E16 |
Annualized Failure Rate (AFR) | 0.44% |
Total Terabytes Written (TBW) Over Warranty Period | 7300 |
Power Management | |
+5/+12V Max Start Current (A) | 0.7/0.4 |
Average Sleep Power (W) | 2.5 |
Average Idle Power (W) | 2.72 |
Average Operating Power (W) | 3.71 |
Enviromental | |
Internal Operating Temperature (°C) | 0 to 60 |
Nonoperating Temperature (°C) | −40 to 70 |
Temperature Change Rate/Hr, Operating Max (°C) | 20 |
Temperature Change Rate/Hr, Nonoperating Max (°C) | 20 |
Relative Humidity, Noncondensing (%) | 5 to 95 |
Shock, 0.5ms(Gs) | 1000 |
Vibration, 20Hz to 2000Hz Grms) | 11.08 |
Physical | |
Height (mm/in) | 7.0/0.276 |
Width (mm/in) | 70.10/2.76 |
Length (mm/in) | 100.45/3.955 |
Weight (g/lb) | 100/0.220 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1GD262-006
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
