Toshiba Part #/MPN: AL13SXB600N
DiscTech Item #: TOS-AL13SXB600N-RF-OE-EMF
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:399Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 228
Average Seek Time: 2.7 / 2.95
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

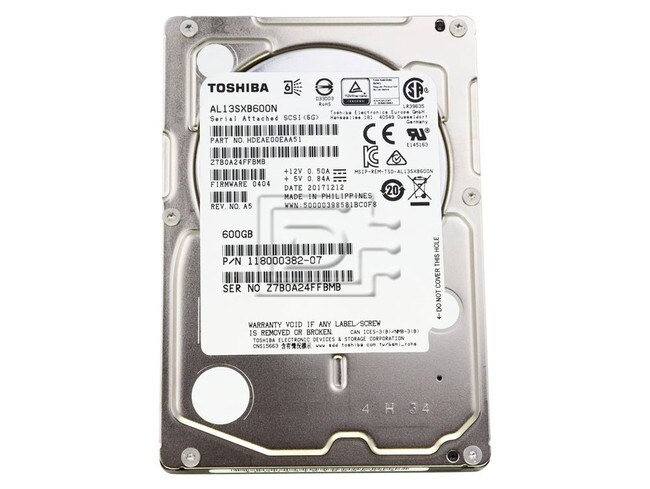

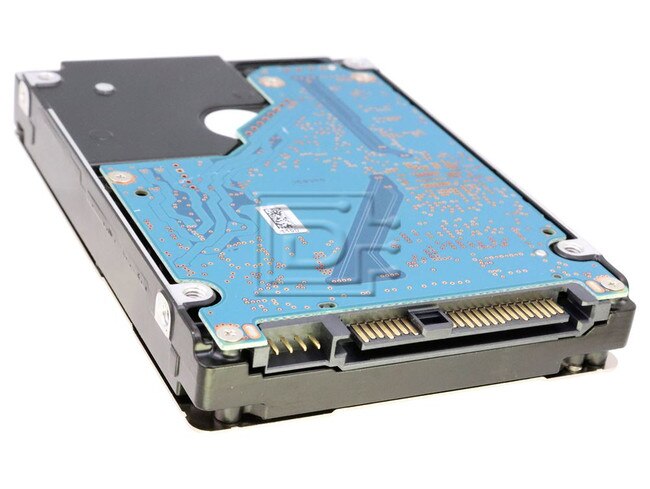

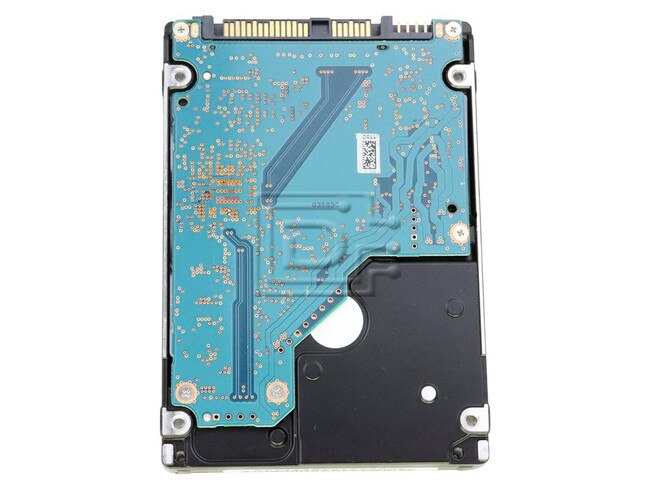

Toshiba AL13SXB600N 600GB 2.5" SFF 15K 6Gbps SAS Hard Drive - Refurbished
Toshiba AL13SXB600N 600GB SAS 15000 RPM 6.0Gbps, 2.5inch, Small Form Factor, Serial Attached SCSI, Enterprise Hard Drive - Refurbished
This drive has been reformatted to 512 bytes, Compatible with all normal SAS controllers and server systems (e.g. Dell, HPE, Supermicro). It has 1,171,875,000 512k data blocks which is slightly smaller capacity than other 600GB drives. For New RAID volumes only.
The AL13SX series comes in 300GB1, 450GB and 600GB capacities, and delivers high performance in 600GB capacity while supporting industry standard 512n sector lengths in a space efficient 2.5-inch form factor. The 4K native sector and 512e emulation models of the drives include Toshiba’s persistent write cache technology for improved data integrity and performance. Overall, the AL13SX series supports high storage density, saving rack space and reducing mission critical storage footprint and operational burden for enterprise customers.
Compatibility:
The Toshiba AL13SXB600N is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Basic Specifications | |
|---|---|
| Standard Model | AL13SXB600N |
| Interface | SAS-2.0 (1.5 Gbit/s, 3.0 Gbit/s, 6.0 Gbit/s) |
| Formatted Capacity | 600GB |
| Performance | |
| Buffer size | 64MiB |
| Rotation speed | 15,000 RPM |
| Average Latency time | 2.0 ms |
| Average seek time (Read) | 2.7 ms |
| Average seek time (Write) | 2.95 ms |
| Sustained transfer rate (Max.) | 228 MiB/s Standard Models |
| Reliability | |
| Load/Unload | 600,000 times |
| MTTF | 2,000,000 hours |
| Operating condition | 24 hours/day, 7 days/week |
| Supply Voltage | |
| Allowable Voltage | 12V ±5％, 5V ±5% |
| Power consumption | |
| Read/Write | 9.0 W |
| Idle | 5.8 W (Typ.) |
| Dimension | |
| Height | 15 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.23 kg |
| Temperature | |
| Operating | 5 to 55°C |
| Non-Operating | -40 to 70°C |
| Vibration/Shock | |
| Vibration (op) | 0.6mm (5～20Hz) 9.8m/s2 {1G} (20～300Hz) |
| Vibration (non-op) | 3.1mm (5～20Hz) 49m/s2 {5G} (20～300Hz) |
| Shock (op) | 980m/s2 {100G} (1ms duration) |
| Shock (non-op) | 3,920m/s2 {400G} (2ms duration) |
| Acoustics | |
| Idle | 33 dB |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
