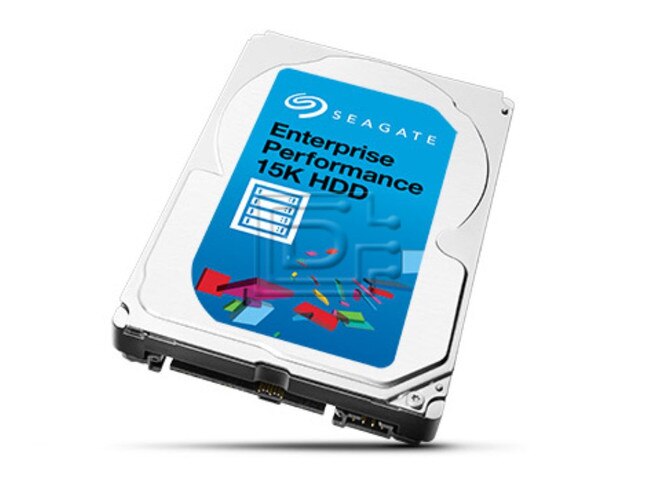

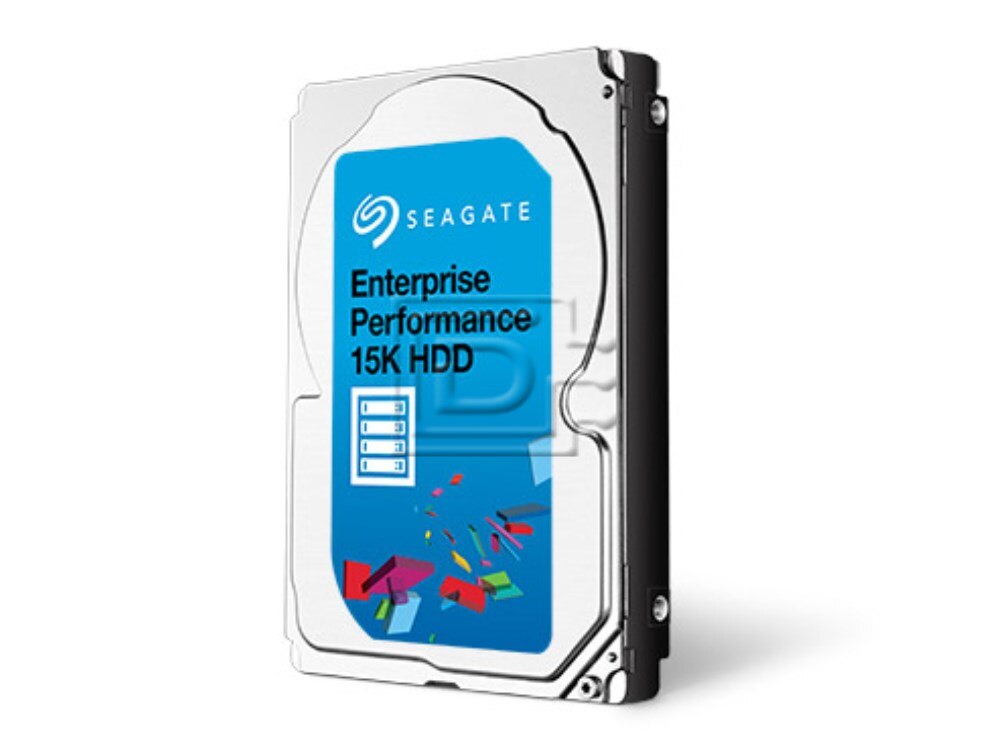

Seagate ST600MP0025 600GB SAS Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 600GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Seagate ST600MP0025 600GB 2.5in 12Gbps 15K RPM eMLC Enterprise FIPS/SED SAS HDD - Brand New
Seagate ST600MP0025 600GB 2.5" 12.0 Gbps 15,000 RPM Enterprise-Multi Level Cell, Federal Information Processing Standards, Self-Encrypting, Serial Attached SCSI Hard Disk Drive - Brand New
Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
- Seagate Secure™ drive options (AES-256) help cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
- Seagate Secure models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
- Seagate Secure FIPS drive option helps protect Sensitive but Unclassified and Protected class data.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
Specifications
| SPECIFICATIONS | |
|---|---|
| Model Number | ST600MP0025 |
| Secure | Yes |
| FIPS | Yes |
| Specification | 512 Native |
| Capacity | 600GB |
| Interface | 12Gb/s SAS |
| PERFORMANCE | |
| Average Latency (ms) | 2.0 |
| Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 233 to 160 |
| Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
| Cache, Multisegmented (MB) | 128 |
| TURBOBOOST ENHANCED CACHE | |
| NAND Flash Type | eMLC |
| NAND Flash Size | 32GB |
| Mixed-Workload Performance (IOPS, compared to standard model) | up to 3x |
| CONFIGURATION/RELIABILITY | |
| Disks/Heads | 3/6 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
| Annualized Failure Rate (AFR) | 0.44% |
| POWER MANAGEMENT | |
| Typical Op (A) +5V/+12V | 0.44/0.54 |
| Average Idle Power (W) | 5.3 |
| Average Operating Power (W) | 8.7 |
| ENVIRONMENTAL | |
| Ambient Temperature, Operating (C°) | 5 to 55 |
| Ambient Temperature, Nonoperating (C°) | -40 to 70 |
| Temperature Change Rate/Hr, Max (C°) | 20 |
| Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
| Shock, Max Operating: 11ms (Gs) | 40 |
| Shock, Max Nonoperating: 2ms (Gs) | 400 |
| Vibration, Operating: <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
| PHYSICAL | |
| Height (in/mm, max) | 0.591/15.00 |
| Width (in/mm, max) | 2.750/69.85 |
| Depth (in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.507/0.230 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.5 lb
Warranty: 5 Year Manufacturer
