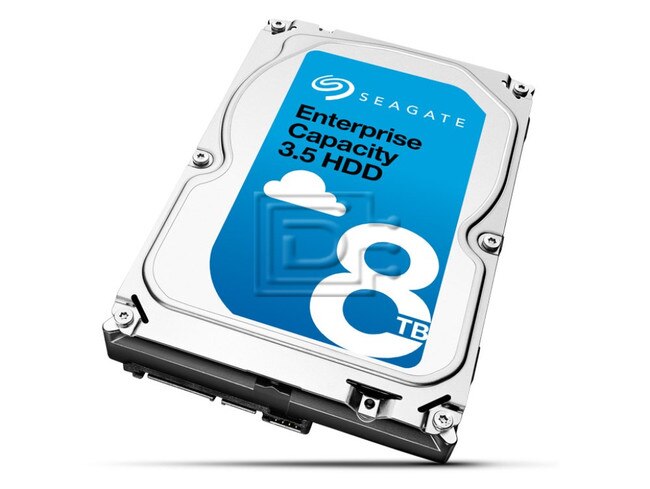

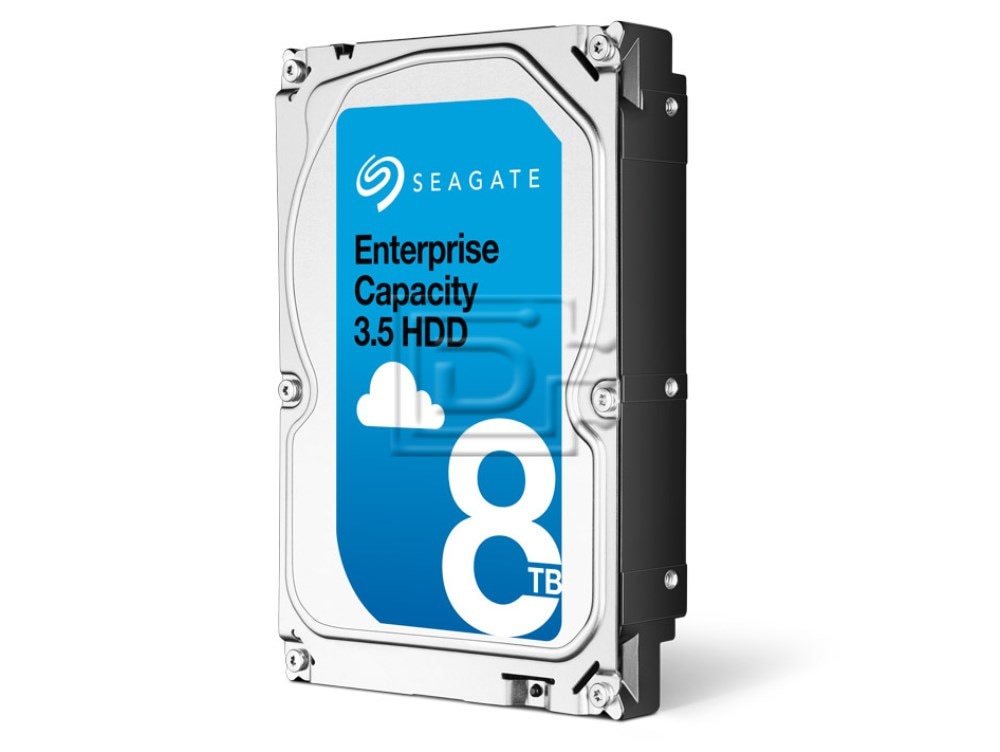

Seagate ST8000NM0065 8TB SAS Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
$369.00
| Capacity: | 8TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 256MB |
Description
Seagate ST8000NM0065 8TB 3.5 inches 12Gbps 7.2K RPM Enterprise SAS 4Kn HDD – Brand New
Seagate ST8000NM0065 8TB / 8000GB 3.5" 12.0Gbps 7200 RPM 4Kn Enterprise Serial Attached SCSI Hard Disk Drive – Brand New
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- 8TB, 3.5-inch enterprise drive with industry-leading 6-disk technology, resulting in 33% more storage in the same storage slot
- Advanced Write Caching feature to utilize enhanced algorithms, resulting in the industry’s highest nearline storage workload performance efficiencies—100% performance improvement in random writes over last-generation drive
- Widely accepted, proven ninth-generation conventional perpendicular recording technology for reliable access to unstructured data in bulk storage applications
- SAS 12Gb/s interfaces in industry-standard advanced formats for easy integration into replicated and RAID multi-drive storage servers and systems
- State-of-the-art cache, on-the-fly error-correction algorithms, super parity and end-to-end SAS-based data integrity for accurate data storage
- Industry-leading rotational vibration tolerance design helps ensure consistent performance in dense multi-drive systems
- Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
- Robust performance with dual processors, ramp load technology, top-cover attached motor and humidity sensor for optimum performance in all chassis
- Seagate SeaTools™ diagnostic software to provide drive self-tests ensuring unnecessary downtime and maximizing TCO
Best-Fit Applications
- Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with and server that accepts 3.5in x 1.0in (LFF) SAS drives.
Specifications
| Product Specifications | |
|---|---|
| Model Number (4K Native) | ST8000NM0065 |
| Interface Options | SAS 12Gb/s |
| Capacity | 8TB/8000GB 4Kn Format |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| Power Balance Technology | No |
| Cache, Multisegmented (MB) | 256 |
| Advanced Write Caching (2M Internal NOR Flash) | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512, 520, 528 and 4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Random Read/Write -16QD WCE (IOPS) | 164/342 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 237 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 9 |
| Typical Operating, Random Read (W) | <10 |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
| Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
| Physical | |
| Height (in/mm, max) | 1.028/26.1 |
| Width (in/mm, max) | 4.010/101.85 |
| Depth (in/mm, max) | 5.878/147 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
