Seagate Part #/MPN: ST9300605SS
DiscTech Item #: SGT-ST9300605SS-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 168 to 93
Average Seek Time: 3.4/3.8
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

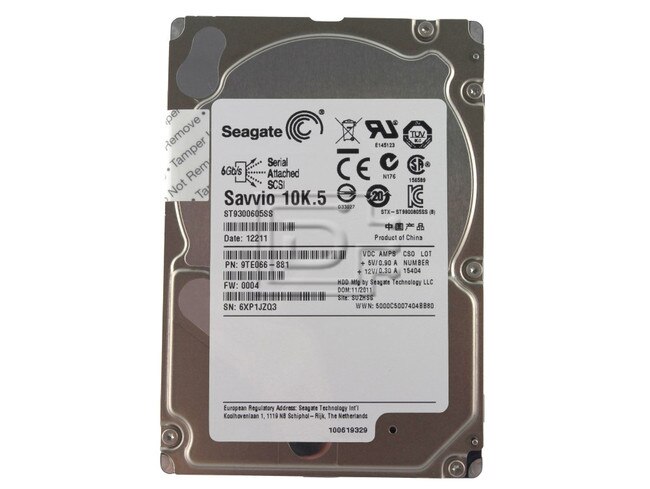

Seagate Savvio ST9300605SS 10K.5 300GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Brand New
Improves Storage Efficiency
The Savvio® 10K.5 drive is the highest-capacity 2.5-inch, 10K drive and the first SFF drive platform to offer four capacity points on a single SFF platform. This drive enables OEMs, system builders and end users to improve storage efficiency by providing up to 900GB in a single drive, helping data centers manage more data without increasing the number of drives, all while increasing sustained data rates by 18% (over previous generation) and maintaining favorable power consumption rates. Seagate PowerChoice™ technology enables OEMs and data centers to tailor systems for performance and power consumption, enabling green IT initiatives. The 2.5-inch small form factor allows end-user enterprises to solve space constraints through higher-density storage.
Reduces Costs and Complexity
The Savvio 10K.5 drive reduces system complexity by standardizing on a common form factor, storage interface and encryption technology. This means fewer device types, form factors, interfaces and security technologies need to be deployed, inventoried and managed.
Enables Smoother Transitions
OEMs and data centers have the flexibility to maintain or upgrade capacity, transition from 3.5-inch to 2.5-inch form factors, and/or migrate from Fibre Channel to SAS drives in one or more steps. With four capacity points on the same drive platform, the Savvio 10K.5 drive enables easier support for current systems and optimized return on existing investments.
Protects Data
Protection Information and Self-Encrypting Drive options protect data from corruption during the storage process and from exposure should the device by lost, stolen, or retired—helping organizations meet compliance and data security objectives.
1 The Savvio 10K.5 is available only through designated OEMs.
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| Specifications | |
|---|---|
| Model number | ST9300605SS |
| Model Name | Savvio 10K.5 |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 64 Mbytes |
| Number of Discs (physical) | 1 |
| Number of Heads (physical) | 2 |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate | 168 - 93 MBytes/sec |
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.8 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 3.0 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .591-inch |
| Height | 15.0 mm |
| Width | 70.10 mm |
| Length | 100.45mm |
| Weight | 0.211 kg |
| Electrical | |
| Power (Typical) | .46 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 40 Gs |
| Max Nonoperating Shock (2-msec) | 400 Gs |
| Operating Vibration (max) | 0.5 Gs |
| Nonoperating Vibration (max) | 3.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
