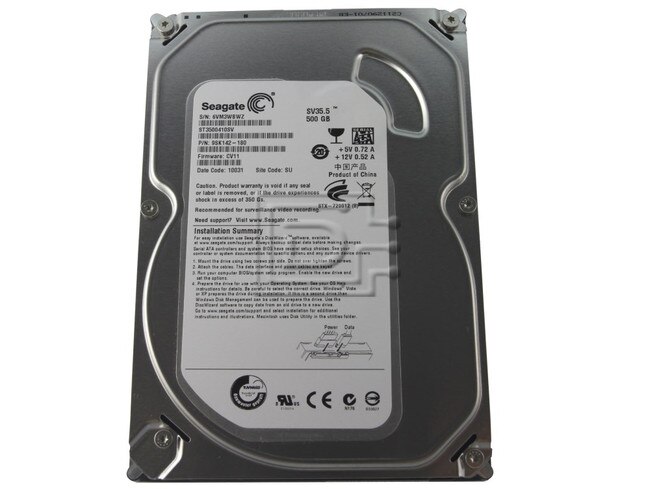

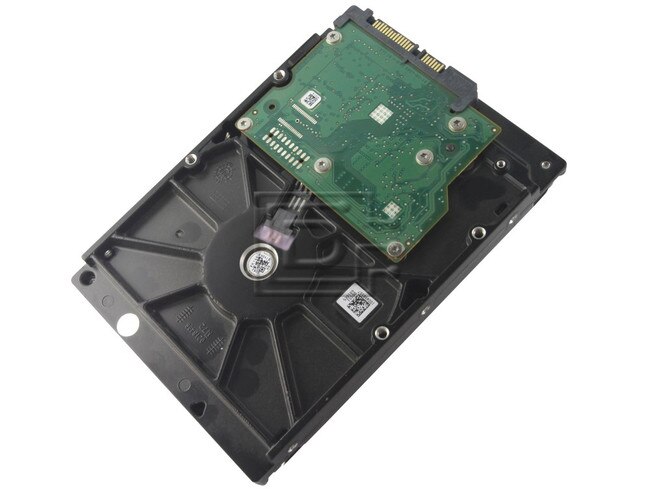

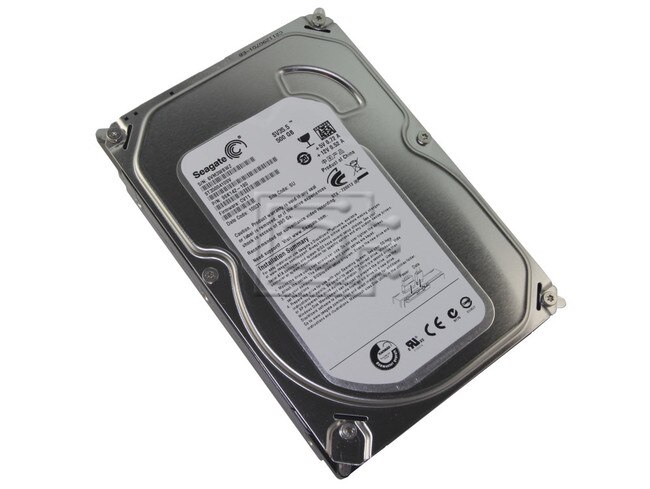

Seagate SV35.5 ST3500410SV 500GB 7.2K SATA Hard Drive

Seagate Part #/MPN: ST3500410SV

DiscTech Item #: SGT-ST3500410SV-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 500GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 140

Average Seek Time: 8.5 / 9.5

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

Seagate SV35.5 ST3500410SV 500GB 7.2K SATA Hard Drive - Brand New

The Seagate ® SV35 Series™ drive enables security industry manufacturers, integrators and installers to accomplish more with less, greatly improving their surveillance solution offerings in terms of capacity, reliability, performance and features.

Specifications500 GB
Model NumberST3500410SV



SATA 3.0Gb/s
Height (max)19.98 mm (.787 in)
Width (max)101..85 mm  (4.010 in)
Length (max)146.99 mm  (5.787 inches)
Weight (typical)544 grams  (1.199 lbs)
Cache16 MBytes
Capacity500 GB
Guaranteed Sectors


Bytes per sector
512 bytes


Bytes per sector
Default sector per track
Default read/write heads
Default cylinders
Recording density (max)
1474 kb/in
Track density (avg)
236 ktracks/in
Areal density (avg)
345 Gbits/in^2
Internal data transfer rate (max)
1628 Mbits/s
Sustained data transfer rate (max)
140 MB/s
I/O data transfer rate (max)
300 MB/s
ATA data-transfer modes supported
 PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
Power-on to ready (max)
<10 sec

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
